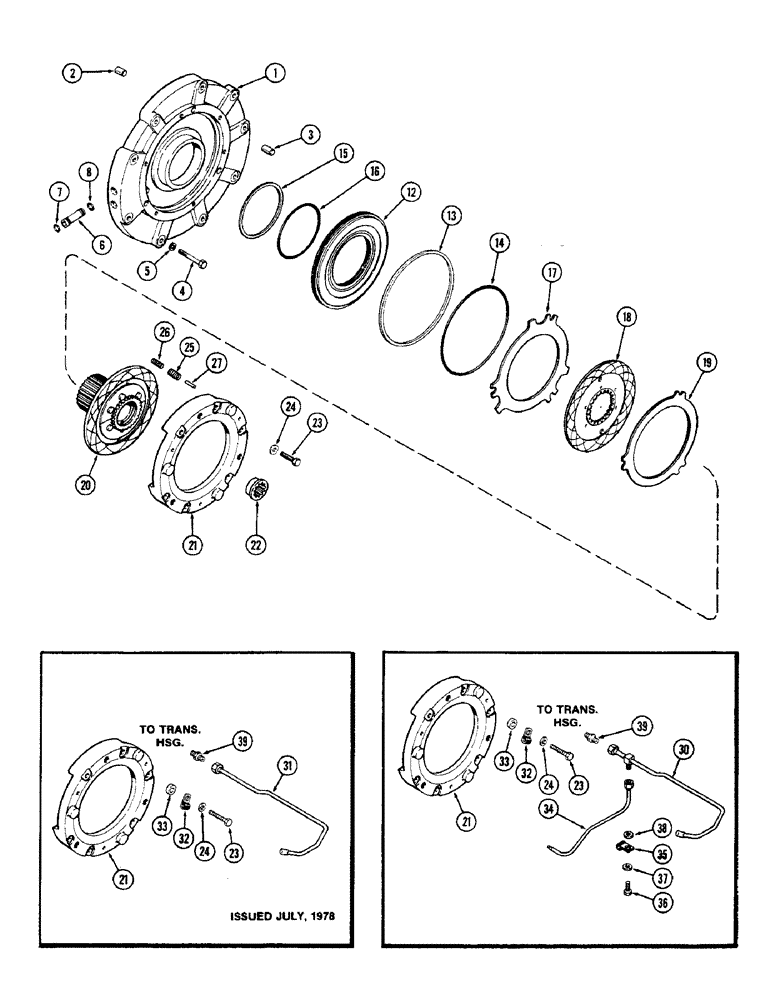

Запчасти Case IH 1570 (117A) - C1 CLUTCH, FIRST USED TRANSMISSION SERIAL NUMBER 10057502 (06) - POWER TRAIN

1

A67163

CARRIER

ASSY piston, C1 and C4 clutches, Includes Ref. 2 and 3

1шт.

2

A65555

PIN

reaction plate, 1-9/16" long, C4 clutch

3шт.

3

A75102

PIN,12.45mm OD x 50.8mm L

reaction plate, 2" long, C1 clutch

3шт.

4

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, piston carrier to power shift, 3/8 x 2-1/4" NC, grade 8

9шт.

5

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

carrier bolt, 7/16 x 3/4 x 1/32"

9шт.

6

A152371

TUBE

oil, plastic, Replaces A63096 steel tube

2шт.

7

A65918

O-RING,0.551" ID x 0.691" OD

oil tube, 9/16 x 11/16 x 1/16"

2шт.

Part of seal kit A46286

1шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, 1/2 x 5/8 x 1/16"

2шт.

Part of seal kit A46286

1шт.

12

A146670

PISTON

PISOTN clutch

1шт.

13

A146682

RING

piston, external, 8-5/16" OD

1шт.

Part of seal kit A46286

1шт.

14

A150753

O-RING,7.84" ID x 0.107"

piston, external, 7-13/16" OD

1шт.

Part of seal kit A46286

1шт.

15

A146683

RING

piston, internal, 4-1/2" ID

1шт.

Part of seal kit A46286

1шт.

16

A150754

O-RING,4.718" ID x 0.107"

piston, internal, 4-5/8" ID

1шт.

Part of seal kit A46286

1шт.

17

A65524

PLATE

clutch, with tab

1шт.

18

A142536

PLATE

clutch, sintered

2шт.

19

A65525

PLATE

clutch, without tab

2шт.

20

A150113

PLATE ASSY.

GEAR ASSY reaction

1шт.

21

A140075

PLATE

reaction

1шт.

22

A76482

BUSHING,20T

front, input shaft

1шт.

23

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, reaction plate, 3/8 x 2-1/4" NC, grade 8

6шт.

24

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

reaction plate bolt, 7/16 x 3/4 x 1/32"

6шт.

25

A62606

SPRING

return, 9/16" dia, 1-3/32" free length

3шт.

26

A62607

SPRING

return, 3/8" dia, 1-3/32" free length

3шт.

27

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring guide 3/16" x 1 1/4", Slotted

3шт.

30

A151747

TUBE

lube line, to C1 clutch

1шт.

31

A136209

TUBE lube line, to C1 clutch, Used prior to transmission Serial No. 10059756

1шт.

32

49845

CLAMP

C1 lube tube

1шт.

33

A136208

SPACER

clamp, 7/16 x 13/16 x 3/16"

1шт.

34

A151885

TUBE

lube, Serial Range: line,-countershaft

1шт.

35

A20541

CLIP

CLAMP countershaft lube tube

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clamp Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 1/16"

1шт.

39

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR lube tube

1шт.

A46286

SEAL KIT,Power Shift

KIT seal, Includes Ref. 7, 8 and 13 - 16, Ref. 7, 8, 17 - 20, 30 and 31 on Figure 116, and 6 - 9 and 11 on Figure 120

1шт.
