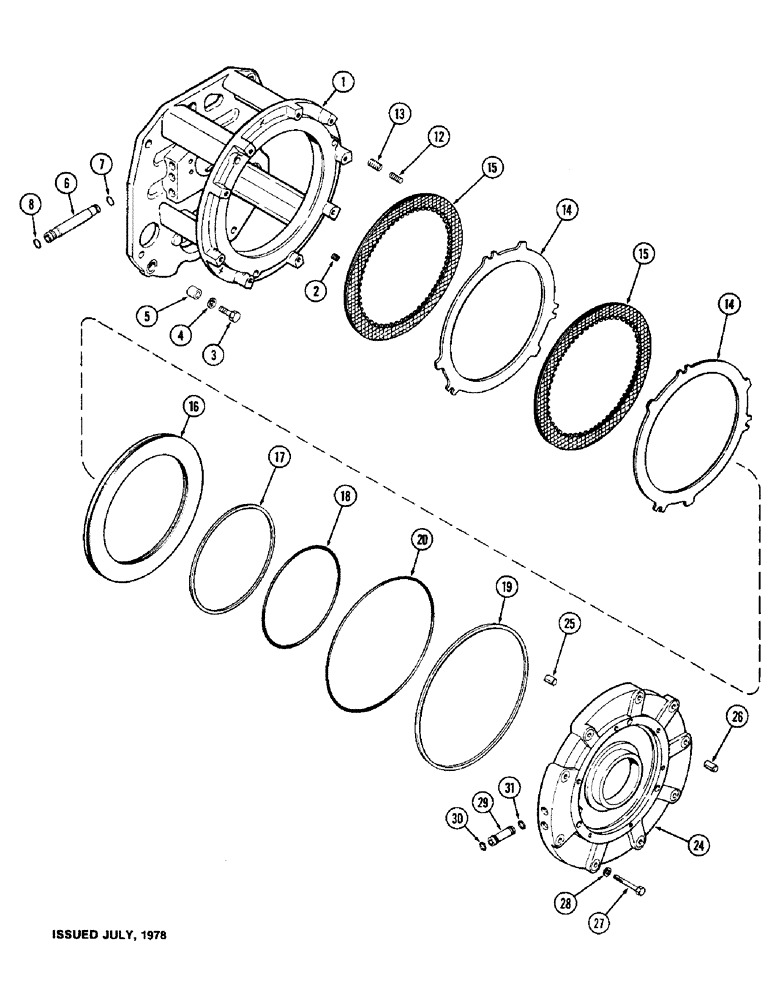

Запчасти Case IH 1570 (116) - C4 CLUTCH, FIRST USED TRANSMISSION SERIAL NUMBER 10057502 (06) - POWER TRAIN

1

A151275

CARRIER

ASSY power shift, Includes Ref. 2, 1st used transmission Serial No. 10060416

1шт.

1

A67263

CARRIER

ASSY power shift, Includes Ref. 2, Used prior to transmission Serial No. 10060416, Order (1) A151275 carrier, (3) 113-422 bolts and (1) 113-421 bolt

1шт.

2

221-841

PLUG

socket head, 1/4" PT

2шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with A151275 carrier Hex, 1/2"-13 x 2", G5

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex, Used with A151275 carrier, 1/2 x 2-1/2" NC

3шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with A67263 carrier Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex, Used with A67263 carrier, 1/2 x 2-1/2" NC

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A50011

SLEEVE

1/2 x 3/4 x 1/2"

2шт.

6

A152370

TUBE

oil, plastic, Replaces A63118 steel tubes

1шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, 1/2 x 5/8 x 1/16"

3шт.

Part of seal kit A46286

1шт.

8

A65918

O-RING,0.551" ID x 0.691" OD

oil tube, 9/16 x 11/16 x 1/16"

3шт.

Part of seal kit A46286

1шт.

12

A62607

SPRING

return, 3/8" dia, 1-3/32" free length

3шт.

13

A62606

SPRING

return, 9/16" dia, 1-3/32" free length

3шт.

14

A58056

PLATE

steel, C4 clutch

2шт.

15

A67128

PLATE

friction, C4 clutch

2шт.

16

A146671

PISTON

clutch, C4

1шт.

17

A146681

SEAL

piston seal, internal, 9" ID

1шт.

Part of seal kit A46286

1шт.

18

A150752

O-RING,9.206" ID x 0.107" OD

piston, internal, 9" ID

1шт.

Part of seal kit A46286

1шт.

19

A146680

RING

piston, external, 12-1/2" OD

1шт.

Part of seal kit A46286

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

piston, external, 12" OD

1шт.

Part of seal kit A46286

1шт.

24

A67163

CARRIER

ASSY piston, C1 and C4 clutches, Includes Ref. 25 and 26

1шт.

25

A65555

PIN

reaction plate, 1-9/16" long C4 clutch

3шт.

26

A75102

PIN,12.45mm OD x 50.8mm L

reaction plate, 2" long, C1 clutch

3шт.

27

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, piston carrier to power shift, 3/8 x 2-1/4" NC, grade 8

9шт.

28

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

carrier bolt, 7/16 x 3/4 x 1/32"

9шт.

29

A152371

TUBE

oil, plastic, Replaces A63096 steel tube

2шт.

30

A65918

O-RING,0.551" ID x 0.691" OD

oil tube, 9/16 x 11/16 x 1/16"

2шт.

Part of seal kit A46286

1шт.

31

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, 1/2 x 5/8 x 1/16"

2шт.

Part of seal kit A46286

1шт.

A46286

SEAL KIT,Power Shift

KIT seal, Includes Ref. 7, 8, 17 - 20, 30 and 31, Ref. 7, 8 and 13 - 16 on Figure 117A and Ref. 6 - 9 and 11 on Figure 120

1шт.
