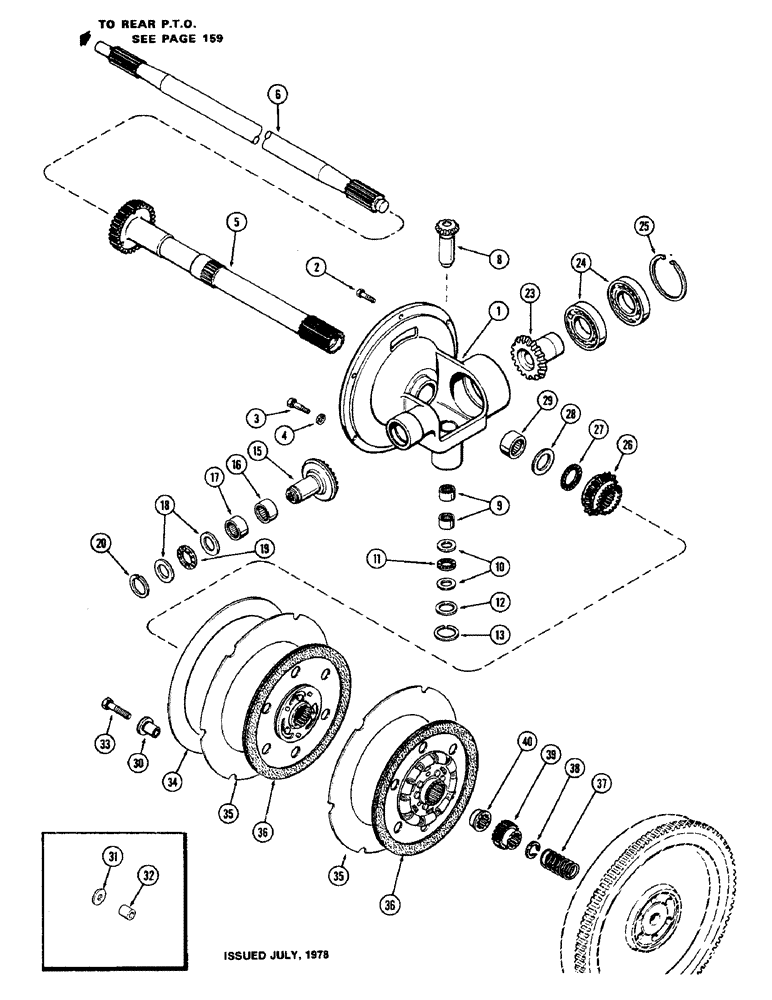

Запчасти Case IH 1570 (114) - TORQUE LIMITER AND PUMP DRIVE (06) - POWER TRAIN

1

A66422

HOUSING

pump drive

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 x 1-1/2" NC

5шт.

3

A63062

BOLT

shoulder, 3/8" NC x 1-5/8"

1шт.

4

92-7

LOCK WASHER,7/16"

1шт.

5

REF

INSTRUCTION

SHAFT planetary input, See Figure 118

1шт.

6

REF

INSTRUCTION

SHAFT front, PTO drive, See Figure 122

1шт.

8

A63074

GEAR

charging pump, 22 external bevel teeth

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING roller, 1-1/8 x 1-3/8 x 3/4"

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE thrust bearing, 7/8 x 1-1/2 x 1/16"

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING needle, thrust

1шт.

12

A63076

WASHER

RACE thrust bearing, 1-1/8 x 1-3/4 x 1/16"

1шт.

13

A64081

RING

snap, 0.094", 1-15/16" free diameter

1шт.

13

A64082

RING

snap, 0.084", 1-15/16" free diameter

1шт.

13

A64083

RING

snap, 0.074", 1-15/16" free diameter

1шт.

15

A142862

GEAR

dual pump, 47 external bevel teeth

1шт.

16

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING roller, 1-3/8 x 1-3/4 x 1"

1шт.

17

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING roller, 1-3/8 x 1-3/4 x 3/4"

1шт.

18

A63070

BEARING WASHER,1.262" ID x 1.917" OD x 0.126"

RACE thrust bearing, 1-1/4 x 1-15/16 x 1/8"

1шт.

19

F51467

THRUST BEARING

BEARING, Needle, Thrust

1шт.

20

A64078

RING, SNAP

RING snap, 0.094", 2-3/16" free diameter

1шт.

20

A64079

RING, SNAP

RING snap, 0.084", 2-3/16" free diameter

1шт.

20

A64080

RING, SNAP

RING snap, 0.074", 2-3/16" free diameter

1шт.

23

A64039

GEAR

optional pump, 47 external bevel teeth

1шт.

24

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING ball, 2-5/32 x 3-15/16 x 13/16"

2шт.

25

A63081

SNAP RING,#393, 4.234", Int

RING snap, 0.109"

1шт.

25

A63082

RING, SNAP

RING snap, 0.099"

1шт.

25

A63083

RING, SNAP

RING snap, 0.089"

1шт.

26

A142863

GEAR

pump drive, 33 and 47 external bevel teeth

1шт.

27

A66478

THRUST BEARING,2.007" ID x 2.74" OD x 0.0781"

BEARING needle, thrust

1шт.

28

A66479

RING

RACE thrust bearing, 2 x 2-3/4 x 3/32"

1шт.

29

A66476

NEEDLE BEARING,2" ID x 2.375" OD x 1" L

BEARING roller, 2 x 2-3/8 x 1"

1шт.

30

A153849

RETAINER

clutch, 1 piece, Replaces A76467 and A152970, See Ref. 31 and 32

6шт.

31

A67195

WASHER

spring retainer, 2 piece, Used with A77338 spacer, Order A153849 retainer and discard A67195 and A77338

6шт.

32

A77338

BUSHING

SPACER spring retainer, 2 piece, Used with A67195 washer, Order A153849 retainer and discard A67159 and A77338

6шт.

33

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

hex, retainer, 1/2 x 2-1/4" NC

6шт.

34

A64370

SPRING

Belleville, 0.177", with yellow color code

1шт.

35

A58036

PLATE

pressure

2шт.

36

A153079

SWITCH

LIMITER torque, 12" dia, with lube holes, Replaces A65422

2шт.

37

A65416

SPRING

input drive shaft

1шт.

38

A76480

RING

snap, spring retaining, See Figure 122, Used prior to transmission Serial No. 10057514

1шт.

39

A66610

SLEEVE

drive shaft

1шт.

40

A76482

BUSHING,20T

drive shaft

1шт.
