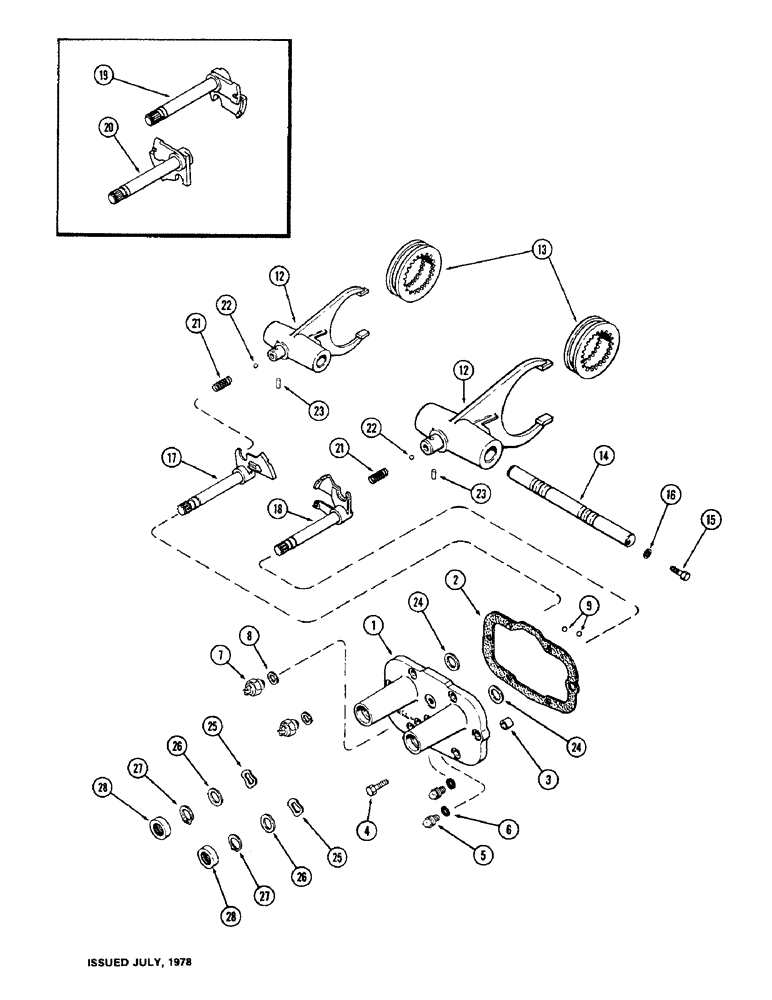

Запчасти Case IH 1570 (110) - RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A144097

HOUSING

shift levers

1шт.

2

A64067

GASKET

shift housing to transmission housing

1шт.

3

A63167

SLEEVE

housing locating, 13/32 x 5/8 x 19/32"

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, housing, 3/8 x 1-1/2" NC

5шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Housing Hex, 3/8"-16 x 1 3/4", G5

1шт.

5

A58420

GAUGE

sight, oil level, See Figure 104

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

sight gauge, 5/8 x 13/16 x 3/32"

2шт.

7

A139078

SWITCH

neutral start

2шт.

8

G49402

SHIM,.010" Thk

Switch .010" Thk

1шт.

9

211-3

BALL,1/8" Dia

switch, 1/2" dia

2шт.

12

A136728

FORK

shifter

2шт.

13

A138190

COLLAR

sliding

2шт.

14

A66753

RAIL

shifter

1шт.

15

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

hex, shifter rail, 5/16 x 1-3/8" NC

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

A146851

LEVER

shift, 1st and 2nd, 1st used transmission Serial No. 10032099

1шт.

18

A144098

LEVER

shift, 1st and 2nd, Used prior to transmission Serial No. 10032099, Order (1) each of A146851 and A146852 shift levers

1шт.

19

A146852

LEVER

shift, 3rd and 4th, 1st used transmission Serial No. 10032099

1шт.

20

A144099

LEVER

shift, 3rd and 4th, Used prior to transmission Serial No. 10032099, Order (1) each of A146851 and A146852 shift levers

1шт.

21

A26530

SPRING

detent, 7/8" free length

2шт.

22

211-12

BALL,7/16 Dia

detent, 7/16" dia

2шт.

23

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, , Detent stop 1/4" x 7/8", Slotted

2шт.

24

A65121

SHIM,.005" Thk

Shift lever, 1" x 2" x 1/16" .005" Thk

1шт.

25

A63169

SPRING

wave washer

4шт.

26

G46081

BEARING WASHER

SPACER, 1 x 1-1/2 x 1/32"

2шт.

27

B18208

SNAP RING,#100, Ext

shift lever #100, Ext

2шт.

28

75008

OIL SEAL

oil, 1 x 1-5/8 x 5/16"

2шт.
