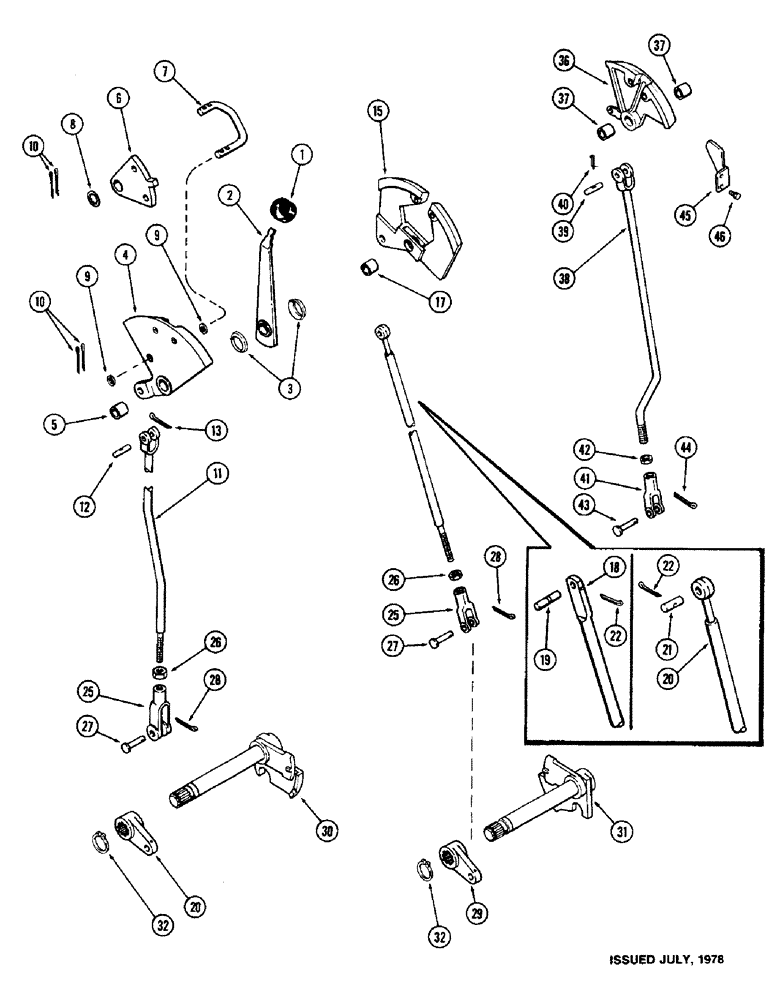

Запчасти Case IH 1570 (108) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

hand lever

1шт.

2

A137816

LEVER

hand, range shift

1шт.

3

A59662

WASHER

lever

2шт.

4

A135170

QUADRANT

ASSY range shift, 3rd and 4th, Includes Ref. 5

1шт.

5

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

5/8 x 3/4 x 3/4"

1шт.

6

A135501

LEVER

reverse lockout

1шт.

7

A143350

ROD

LINK lockout lever

1шт.

8

A64584

SNAP RING,#62, Ext

Ring, Snap, , lockout lever, upper #62, Ext

1шт.

9

195-525

WASHER,3/8", SAE

lockout lever, lower, 3/8 x 13/16 x 1/16"

2шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

11

A63019

ROD

range shift, 3rd an 4th

1шт.

12

A59258

PIN

lever pivot, drilled, 3/8 x 1-1/8"

1шт.

13

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

15

A61869

QUADRANT

ASSY range shift, 1st and 2nd, Includes Ref. 17

1шт.

17

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

5/8 x 3/4 x 1/4"

2шт.

18

A147361

ROD

range shift, 1st and 2nd, 1st used tractor Serial No. 8813860

1шт.

19

A145484

PIN,9.46mm OD x 28.57mm L

lever pivot, with groove, 3/8 x 1-1/4", Used wtih A147361 rod

1шт.

20

A135929

ROD

range shift, 1st and 2nd, Used prior to tractor Serial No. 8813860, Order (1) A147361 rod and (1) A145484 pin

1шт.

21

A59258

PIN

lever pivot drilled, 3/8 x 1-1/4", Used with A135929 rod

1шт.

22

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

25

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE rod end to shift lever

2шт.

26

25-116

NUT,Hex, 3/8"-24, G5

hex, rod adjusting, 3/8" NF

2шт.

27

141-54

CLEVIS PIN,3/8" x 1 1/16"

yoke to shift lever 3/8" x 1 1/16"

2шт.

29

A64936

LEVER

range shift operating

2шт.

30

REF

INSTRUCTION

LEVER range shift, 3rd and 4th, See Figure 110

1шт.

31

REF

INSTRUCTION

LEVER range shift, 1st and 2nd, See Figure 110

1шт.

32

B18208

SNAP RING,#100, Ext

operating lever #100, Ext

2шт.

36

A61874

QUADRANT

ASSY park lock, control, Inculdes Ref. 37

1шт.

37

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

5/8 x 3/4 x 3/4"

1шт.

38

A135930

ROD

control, park lock

1шт.

39

A59258

PIN

control rod to quadrant, park lock

1шт.

40

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , park lock control 3/32" x 1 1/4"

1шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE control rod to lever, park lock

1шт.

42

25-116

NUT,Hex, 3/8"-24, G5

hex, yoke lock, 3/8" NF, park control

1шт.

43

141-54

CLEVIS PIN,3/8" x 1 1/16"

park lock control 3/8" x 1 1/16"

1шт.

44

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", park lock control

1шт.

45

A143349

BRACKET

locating, park lock control

1шт.

46

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Bracket, park lock control Hex Flg, 1/4"-20 x 1/2", Serr

2шт.
