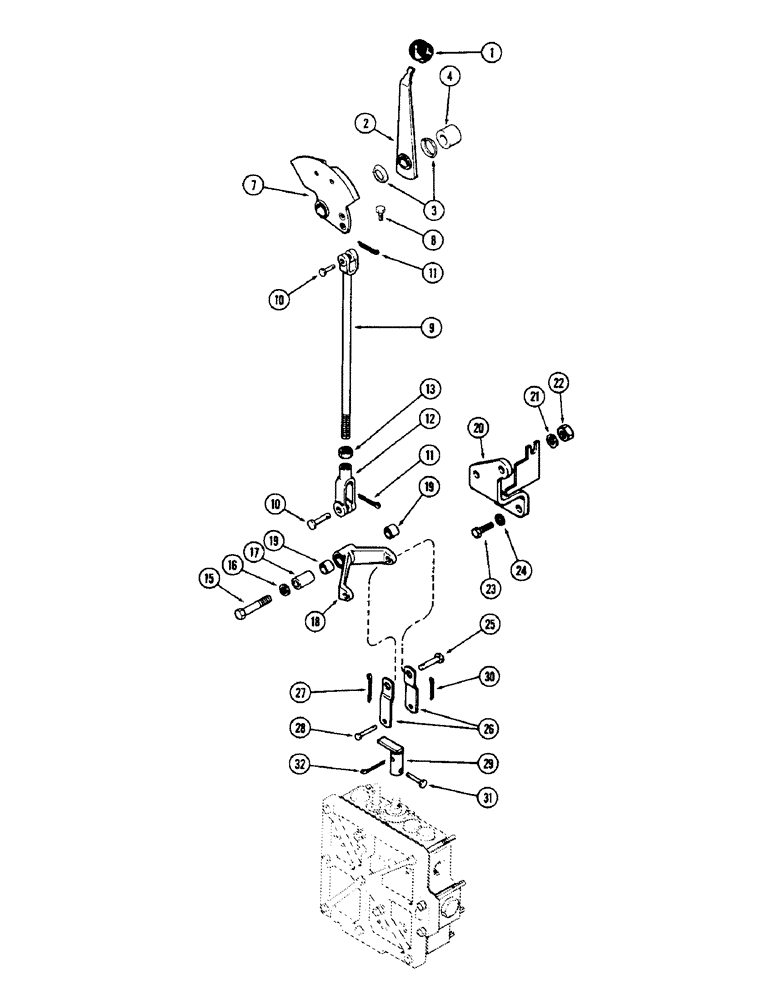

Запчасти Case IH 1570 (106) - POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

shift lever

1шт.

2

A137815

LEVER

hand, power shift

1шт.

3

A59662

WASHER

lever

2шт.

4

A59664

SPACER

lever and quadrant

1шт.

7

A143835

QUADRANT

power shift lever, Replaces A135383

1шт.

8

A59463

BOLT

stop, lock type, 1/4 x 5/8"

1шт.

9

A63020

ROD

hand, Serial Range: lever-bellcrank

1шт.

10

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE rod to crank

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8" NF

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 x 2-1/2" NC

1шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

1шт.

17

A65345

SHAFT

bellcrank

1шт.

18

A63024

DIPPER

BELLCRANK ASSY trans. control valve lever, Includes Ref. 19

1шт.

19

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

bellcrank pivot

2шт.

20

A63021

PLATE

mounting, bellcrank

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

141-54

CLEVIS PIN,3/8" x 1 1/16"

links to bellcrank 3/8" x 1 1/16"

1шт.

26

A63027

LINK

spool, Serial Range: lever-bellcrank

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

A8824

PIN

yoke, links to spool lever

1шт.

29

A63028

LEVER

valve spool return

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

31

A8823

PIN,6.29mm OD x 26.99mm L

yoke, lever to valve spool

1шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
