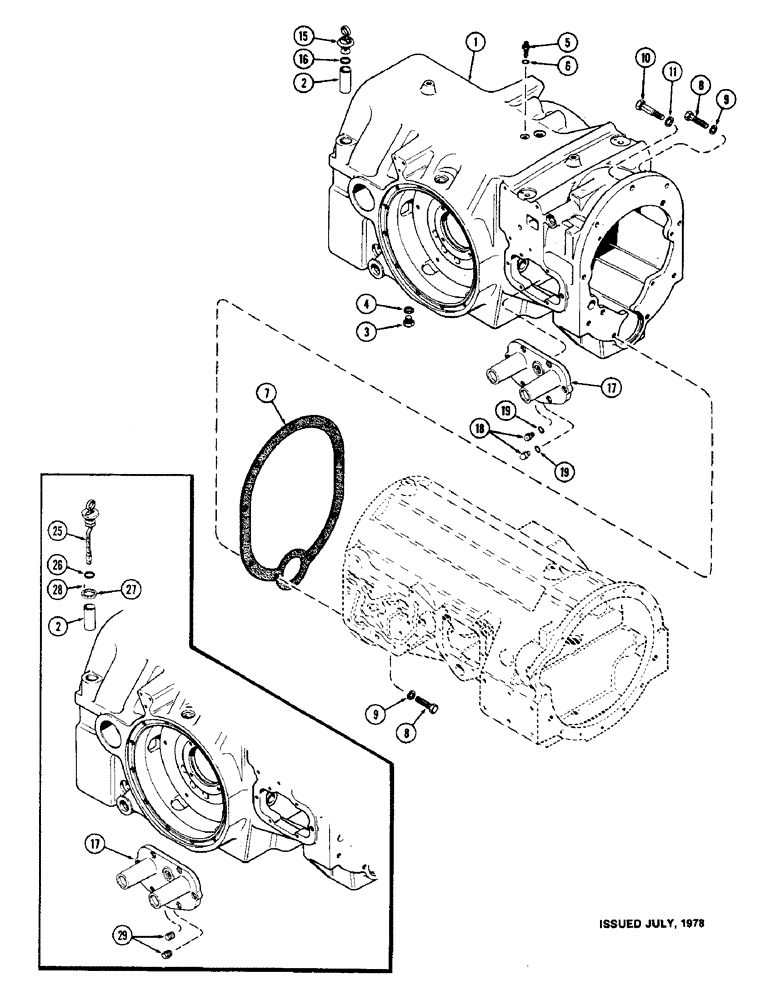

Запчасти Case IH 1570 (104) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A139888

HOUSING

ASSY transmission, Includes Ref. 2

1шт.

2

A64405

TUBE

oil filler

1шт.

3

A140222

PLUG

drain

1шт.

4

A58608

GASKET

drain plug

1шт.

5

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

bulkhead

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

fitting, 1/4 x 3/8 x 1/16"

1шт.

7

A150901

GASKET

transmission housing to torque tube, Replaces A64087

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex, 5/8 x 2-5/8" NC

1шт.

8

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 x 3-1/8" NC

8шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

10

A63086

STEP BOLT

BOLT dowel, 5/8" NC x 3-7/16"

1шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

15

A64404

BREATHER

ASSY and oil filler cap, See oil level adjusting kit, Includes Ref. 16

1шт.

16

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1 x 1-1/4 x 1/8"

1шт.

17

REF

INSTRUCTION

HOUSING shifter, See Figure 110

1шт.

18

A58420

GAUGE

sight, oil level, See oil level adjusting kit

2шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

sight gauge, 5/8 x 13/16 x 3/32"

2шт.

A153332

KIT

adjusting, oil level, Includes Ref. 25 - 29

1шт.

25

A153269

DIPSTICK

ASSY, with breather and oil level clip

1шт.

26

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1 x 1-1/4 x 1/8"

1шт.

27

A153275

RING

filler tube

1шт.

28

138-37

LOCK PIN,3/32" x 1/2", Slotted

PIN, , Dipstick locating 3/32" x 1/2", Slotted

1шт.

29

221-664

PLUG,Hex Hd, 1/2"-14

hex hd, shifter housing, 1/2" PT

2шт.
