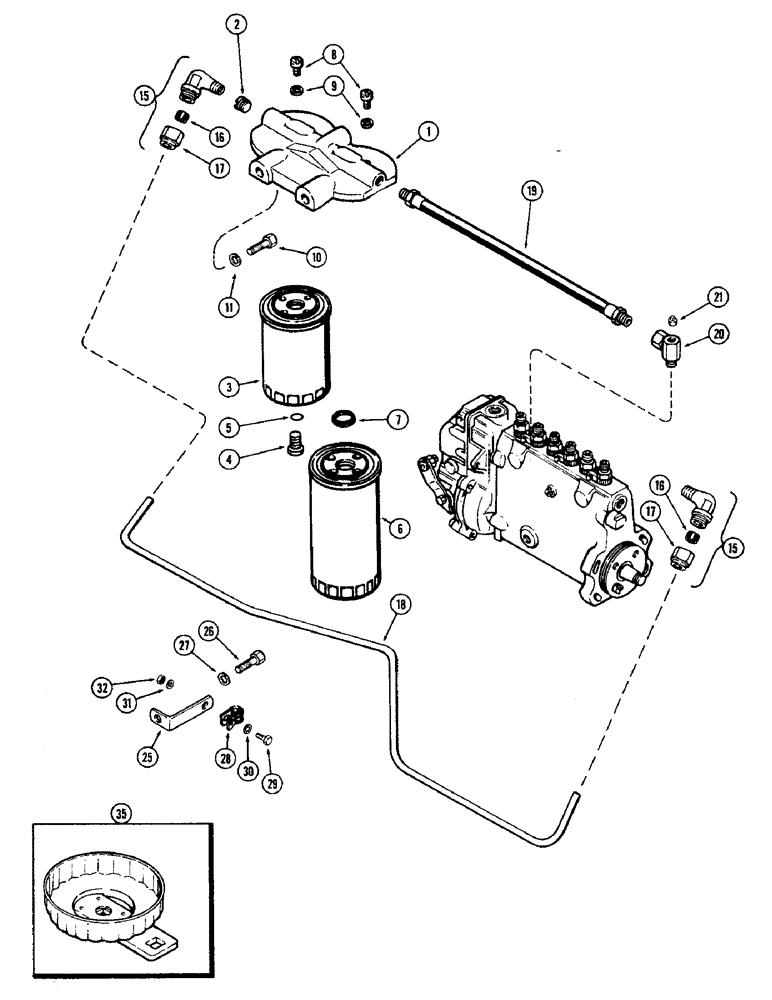

Запчасти Case IH 1570 (048) - FUEL INJECTION FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY 1st and 2nd stage filter, Includes Ref. 2

1шт.

2

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

PLUG, 1/8" PT

1шт.

A44068

FUEL FILTER

KIT spin-in filter replacement, Includes Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER 1st stage, Includes Ref. 4 and 5

1шт.

4

G49080

PLUG

plastic, 10 pt. head, 3/8" NC

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER 2nd stage, Includes Ref. 7

1шт.

7

A42315

GASKET

, Serial Range: filter-head

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

bleed, filter head

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

bleed screw, aluminum, Replaces A66619

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY fuel line, 5/16" tube x 1/4" P.T., Includes Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT, 5/16" tube

1шт.

18

A62342

TUBE

fuel transfer pump to filter head

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

filter head pump

1шт.

20

A20539

FITTING

UNION, Serial Range: hose-pump

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG union, sq hd, 1/8" PT

1шт.

25

A64856

BRACKET

tube

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP tube to bracket, 3/8" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

35

A64761

TOOL

filter removing

1шт.
