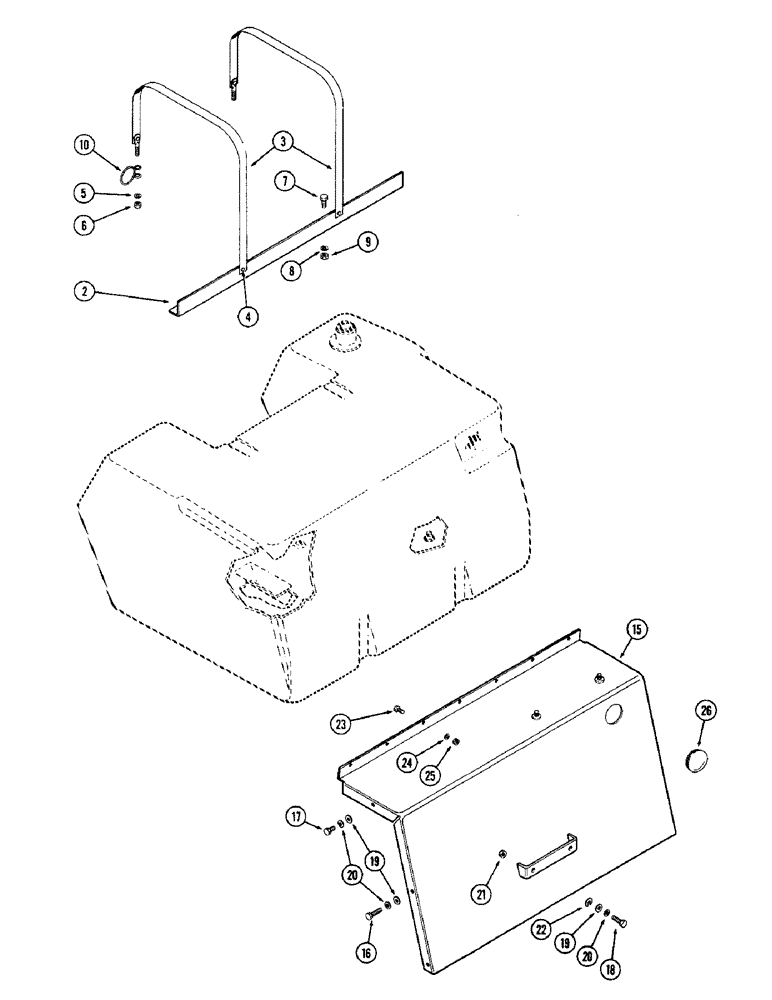

Запчасти Case IH 1570 (042) - FUEL TANK SUPPORTS AND COVER, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

A63705

STRAP

ASSY fuel tank mounting, Includes Ref. 2, 3 and 4

1шт.

2

A63706

BRACKET

ANGLE anchor

1шт.

3

A63992

STRAP

ASSY mounting

2шт.

4

49-48

RIVET,Truss Hd, 1/4" x 1/2"

strap to angle

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

2шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

2шт.

10

A66050

SPRING

strap tension

2шт.

15

A66668

COVER

tank

1шт.

16

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 x 1-3/4 x NC

2шт.

17

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex, 3/8 x 3/4" NC

4шт.

18

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

2шт.

19

195-104

WASHER,3/8"

7/16 x 1 x 5/32"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

A62687

SHIM,.11" Thk

Cover .11" Thk

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

25

9635082

NUT,5/16" - 18, Gr 5

7шт.

26

205-72

HOLE PLUG BUTTON,3"

PLUG button, sending unit access hole, 3"

1шт.

26

A39891

PLUG button, 1/2" 25/64"

1шт.

26

A39892

PLUG,33/64"

button, 21/32"

1шт.
