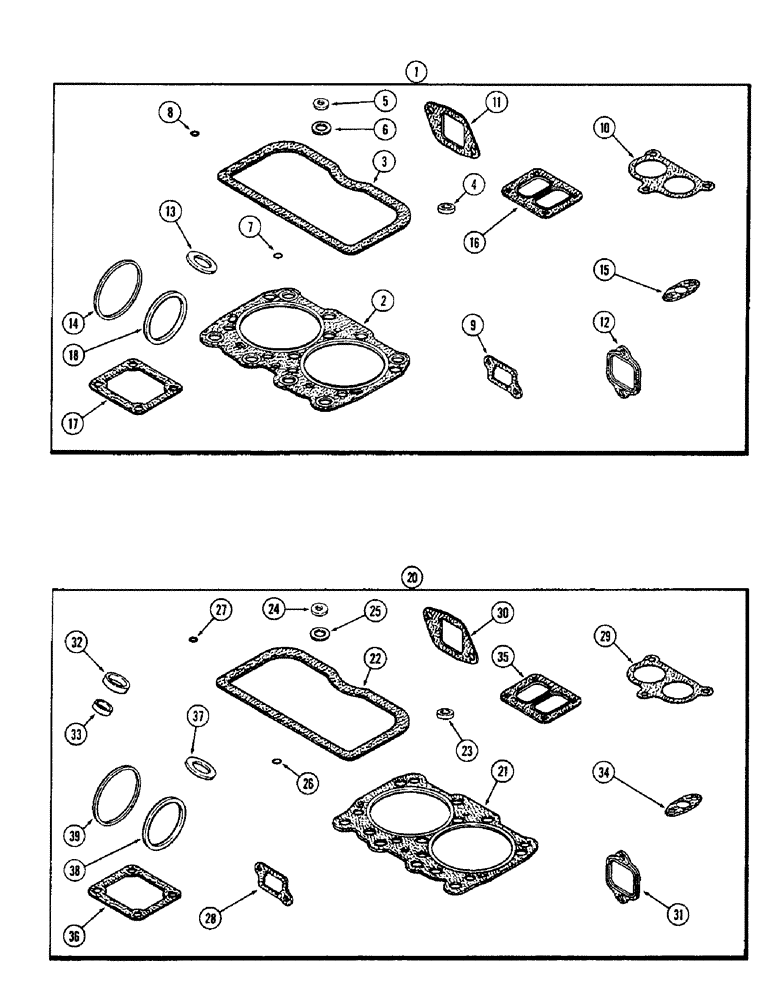

Запчасти Case IH 1570 (036) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE, VALVE GRIND KITS (02) - ENGINE

1

A151404

GASKET

KIT gasket, valve grind, Includes Ref. 2 - 18, use with 5.189" to 5.194" fire dam diameter sleeve

1шт.

For complete engine overhaul order (1) A151404, (1) A44075 and (1) A152479

1шт.

2

A138397

CYLINDER HEAD GASKET

cylinder head to block, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

4

A23684

GASKET

GASKET cover stubs, use with 5.189" to 5.194" fire dam diameter sleeve

6шт.

5

A34133

GASKET

breather tube bolt, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube to cover, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem, use with 5.189" to 5.194" fire dam diameter sleeve

12шт.

9

A58637

MANIFOLD GASKET

water manifold, use with 5.189" to 5.194" fire dam diameter sleeve

3шт.

10

A58639

GASKET

thermostat housing, use with 5.189" to 5.194" fire dam diameter sleeve

1шт.

11

A58662

MANIFOLD GASKET

intake manifold, use with 5.189" to 5.194" fire dam diameter sleeve

6шт.

12

A140252

MANIFOLD GASKET

exhaust manifold, metal faced, Replaces A58895, use with 5.189" to 5.194" fire dam diameter sleeve

6шт.

13

1342829C1

GASKET

WASHER injection nozzle, use with 5.189" to 5.194" fire dam diameter sleeve; Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL turbocharger, use with 5.189" to 5.194" fire dam diameter sleeve

1шт.

15

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube, use with 5.189" to 5.194" fire dam diameter sleev

1шт.

16

A58899

GASKET,0.45mm Thk

turbocharger to manifold, use with 5.189" to 5.194" fire dam diameter sleeve

2шт.

17

A58910

GASKET

air intake elbow, use with 5.189" to 5.194" fire dam diameter sleeve

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

turbocharger exhaust, use with 5.189" to 5.194" fire dam diameter sleeve

1шт.

20

A151406

GASKET

KIT gasket, valve grind, Inlcudes Ref. 21 - 39, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

For complete engine overhaul order (1) A151406, (1) A44075 and (1) A152479

1шт.

21

A142481

GASKET

cylinder head, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

22

A65734

CYLINDER HEAD GASKET

cylinder head cover, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

23

A23684

GASKET

GASKET cover stubs, rubber, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

24

A34133

GASKET

breather tube, fiber, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

25

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

26

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

intake and exhaust valve stems, use with 5.092" to 5.097" fire dam diameter sleeve

12шт.

28

A58637

MANIFOLD GASKET

water manifold, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

29

A58639

GASKET

thermostat housing, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

30

A58662

MANIFOLD GASKET

intake manifold, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

31

A140252

MANIFOLD GASKET

exhaust manifold, metal faced, Replaces A58895, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

32

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

33

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

34

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

35

A58899

GASKET,0.45mm Thk

turbocharger, use with 5.092" to 5.097" fire dam diameter sleeve

2шт.

36

A58910

GASKET

air intake elbow, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

37

1342829C1

GASKET

injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve; Replaces A76640

6шт.

38

A138817

RING,2.64mm Thk

SEAL turbocharger, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

39

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

turbocharger exhaust, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.
