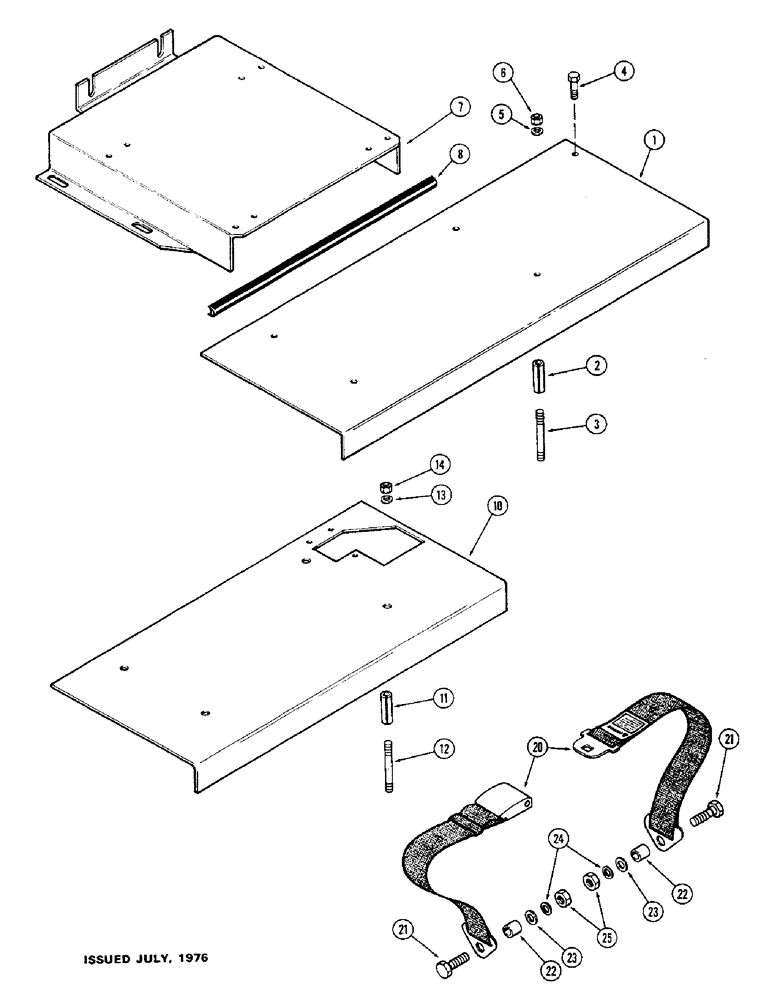

Запчасти Case IH 1570 (266) - SEAT SUPPORT PLATE (09) - CHASSIS/ATTACHMENTS

1

A137209

PLATE

seat suspension, with R.H. control console

1шт.

2

A65472

SPACER

support, 3/8" ID x 2" high

5шт.

3

A137836

STUD

3/8" NC x 4"

4шт.

4

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 x 3" NC

1шт.

5

195-104

WASHER,3/8"

7/16 x 1 x 1/16"

4шт.

6

131-52

NUT,3/8"-16, GC

NUT hex, Essna, 3/8" NC

4шт.

7

A139801

SUPPORT

ADAPTER, Serial Range: seat-support

1шт.

8

A64865

SEAT

TRIM seat adapter edge

1шт.

10

A63649

PLATE

seat suspension, with L.H. control console

1шт.

11

A65472

SPACER

support, 3/8" ID x 2" high

4шт.

12

A137836

STUD

3/8" NC x 4"

4шт.

13

195-104

WASHER,3/8"

7/16 x 1 x 1/16"

4шт.

14

131-52

NUT,3/8"-16, GC

NUT hex, Essna, 3/8" NC

4шт.

20

A66391

SAFETY BELT

SAFETY BELT

1шт.

21

A61946

STEP BOLT

BOLT shoulder, safety seat belt

2шт.

22

A60907

BUSHING

SPACER anchor bolt, safety seat belt

2шт.

23

195-529

WASHER,7/16", SAE

7/16 x 15/16 x 1/16", safety seat belt

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

25

425-117

NUT,7/16"-20, G5

hex, 7/16" NC, safety seat belt

2шт.
