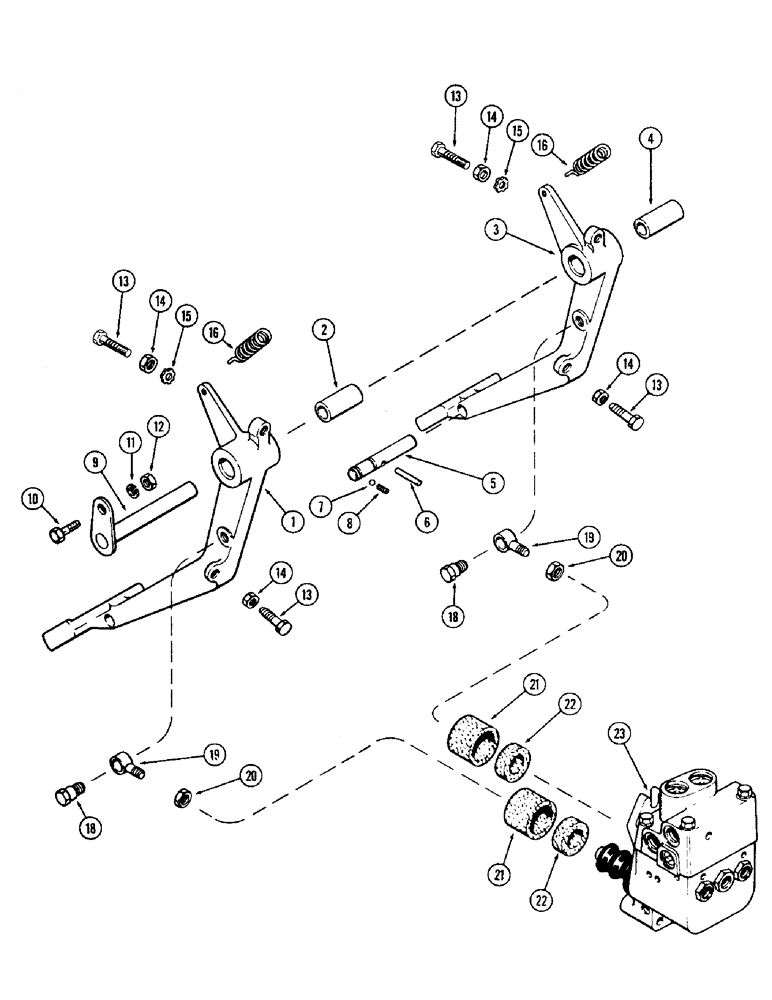

Запчасти Case IH 1570 (144) - BRAKE PEDALS AND VALVE (07) - BRAKES

1

A63370

PEDAL

ASSY brake, R.H., Includes Ref. 2

1шт.

2

A59475

BUSHING

pivot

1шт.

3

A139230

PEDAL

ASSY brake, L.H., Includes Ref. 4 - 8

1шт.

4

A59475

BUSHING

pivot

1шт.

5

A137484

PIN

lock

1шт.

6

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

7

211-7

BALL,1/4" Dia

1шт.

8

A137523

SPRING detent, 3/8" free length

1шт.

9

A59452

SHAFT

pivot, brake pedal

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 x 1-1/4" NC

4шт.

14

25-145

JAM NUT,Jam, 5/16"-18, G5

jam, hex, 5/16" NC

4шт.

15

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

16

A59470

SPRING

return, pedal

2шт.

18

A59152

STEP BOLT

BOLT shoulder, pedal to cylinder eye

2шт.

19

A63314

BOLT

eye, cylinder push rod

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

jam, hex, 3/8" NC

2шт.

21

A61288

COLLAR

seal, outer, 1-9/16 x 2-1/8 x 1-5/8"

2шт.

22

A61287

COLLAR

seal, inner, 1 x 1-3/4 x 1"

2шт.

23

G101002

VALVE

ASSY brake, See Figure 148

1шт.
