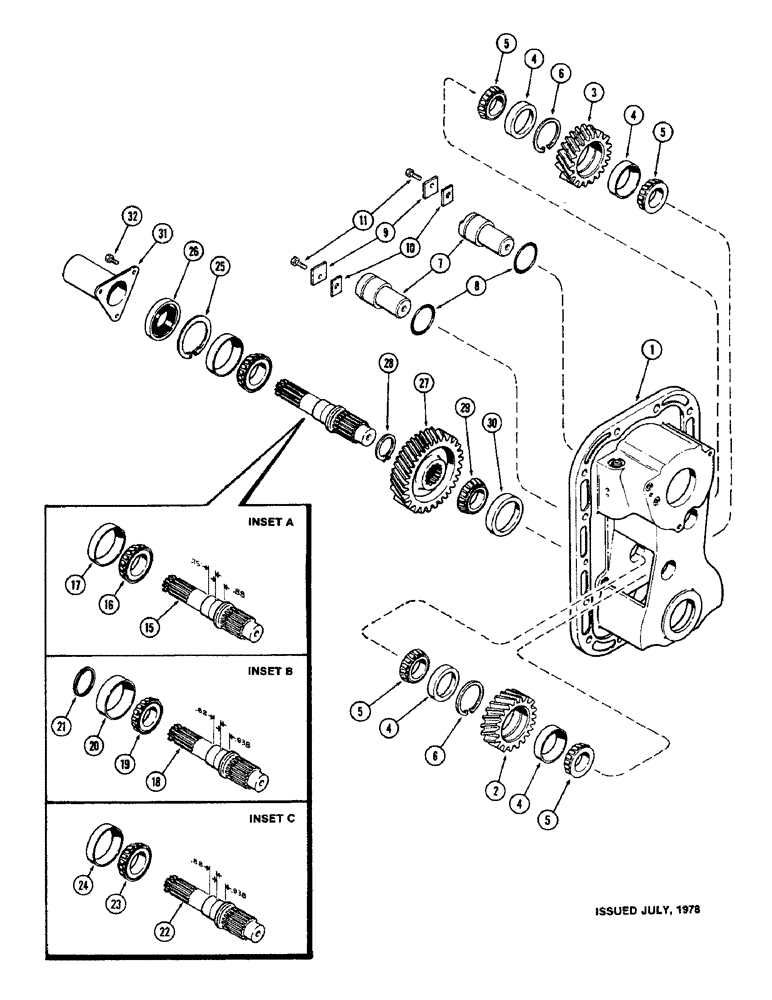

Запчасти Case IH 1570 (161A) - PTO IDLERS, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10060069 (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING PTO, See Figure 156

1шт.

2

A138185

GEAR

idler, L.H., 31T, 2-7/8" ID x 1-5/8" width, with 3/32" snap ring groove

1шт.

3

A138184

COMPRESSION SPRING

idler, R.H., 31T, with identification groove, 2-7/8" ID x 1-5/8" width, with 3/32" snap ring groove

1шт.

4

D53762

BEARING CUP,2.892" OD x 0.62"

CUP bearing, 2-7/8" OD, Timken No. 102910

4шт.

5

D53766

TAPERED BEARING,1.7812" ID x 0.78"

CONE bearing, 1-3/4" ID, Timken No. 102949

4шт.

6

A31255

SNAP RING,2.875", Int, #287

Ring, Snap, , brg spacer 2.875", Int, #287

2шт.

7

A142911

PIN

SHAFT PTO idler, 4-1/2" long

2шт.

8

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

idler shaft, 2 x 2-1/4" 1/8"

2шт.

9

A136233

RETAINER

idler shaft

2шт.

10

A136315

SHIM,.0050" Thk

Idler shaft .0050" Thk

1шт.

10

A136316

SHIM,.0070" Thk

Idler shaft .0070" Thk

1шт.

10

A136317

SHIM,.010" Thk

Idler shaft .010" Thk

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Retainer to housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

A148833

SHAFT

output, Used trans. Serial No. 10059007 and up, See inset A

1шт.

16

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE bearing, front, 1-3/16" ID x 7/8" wide, output shaft

1шт.

17

A28168

CUP

bearing, front, 3-1/2" OD x 21/32" wide, output shaft

1шт.

18

A142594

SHAFT

output, Used trans. Serial No. 10032573 to 10059007, See inset B

1шт.

19

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE bearing, front, 1-3/16" ID x 7/8" wide, output shaft

1шт.

20

A28168

CUP

bearing, front, 3-1/2" OD x 21/32", output shaft

1шт.

21

A150018

SPACER front bearing, 1-7/8 x 2-1/4 x 1/8", output shaft

1шт.

22

A142594

SHAFT

output, Used prior to trans. Serial No. 10032573, See inset C

1шт.

23

A32764

ROLLER BEARING,1.875" ID x 1"

CONE bearing, front, 1-3/16" ID x 1" wide, output shaft

1шт.

24

A32763

CUP

bearing, front, 3-1/2" OD x 3/4" wide, output shaft

1шт.

25

A151628

RING

snap, front bearing retaining, 0.074", output shaft

1шт.

25

A151471

RING

snap, front bearing retaining, 0.078", output shaft

1шт.

25

A151470

RING

snap, front bearing retaining, 0.082", output shaft

1шт.

25

A142636

RING

snap, front bearing retaining, 0.090", output shaft

1шт.

25

A142635

RING

snap, front bearing retaining, 0.094", output shaft

1шт.

25

A142634

RING

snap, front bearing retaining, 0.098", output shaft

1шт.

25

A142637

RING

snap, front bearing retaining, 0.102", output shaft

1шт.

25

A148193

RING

snap, front bearing retaining, 0.108", output shaft

1шт.

25

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , front brg, 0.109", output shaft 3.50", Int, #350

1шт.

26

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

oil, front, 1-7/8" x 3-1/2 x 1/2", output shaft

1шт.

27

A138186

GEAR

output, 44 external and 32 internal teeth, shaft

1шт.

28

A142923

SNAP RING,#206, Ext

Ring, Snap, , output gear stop, shaft #206, Ext

1шт.

29

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE bearing, rear, 1-9/16" ID, output shaft

1шт.

30

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP bearing, rear, 3-5/16" OD, output shaft

1шт.

31

A142641

GUARD

output shaft

1шт.

32

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Guard, output shaft Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.
