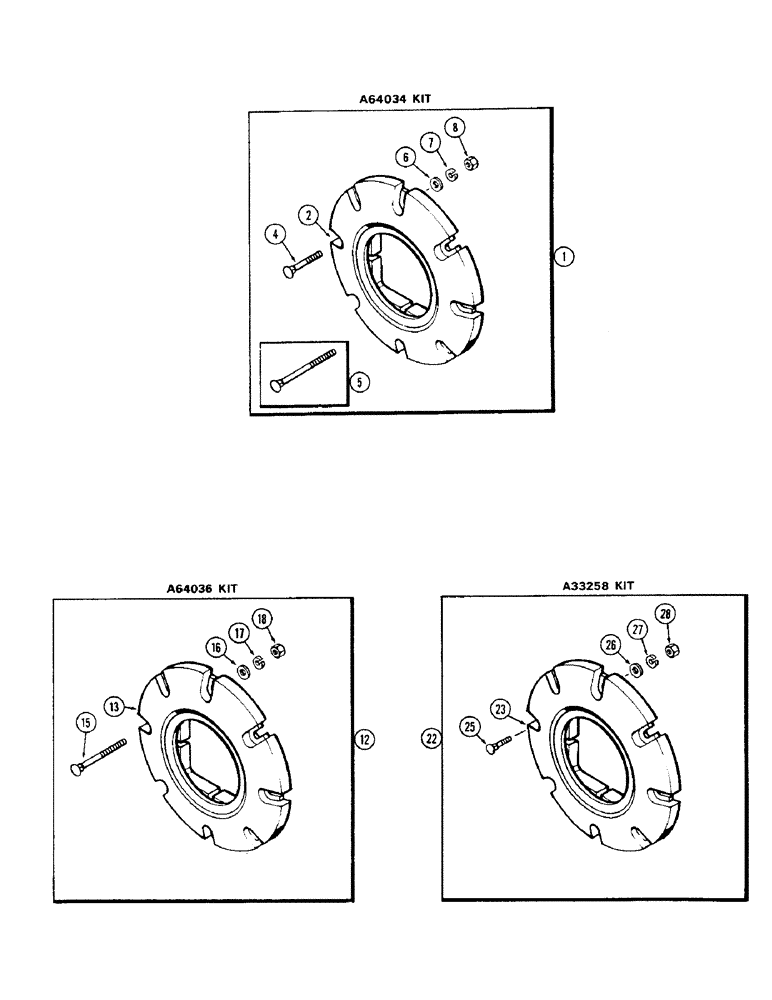

Запчасти Case IH 1570 (142) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A64034

KIT rear wheel weight, starter, For 38" cast, machine item, Includes Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT 140 lbs, Order A64034

2шт.

4

11-1092

BOLT round head, square neck, 5/8 x 5-3/4" NC, Used with wheels and weights, dished out

8шт.

5

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT round head, square neck, 5/8 x 7" NC, Used with wheels and weights, dished in

8шт.

6

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64"

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

25-1010

NUT,5/8"-11, G5

8шт.

12

A64036

KIT rear wheel weight, starter, For 32" cast, machine item, Includes Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

WEIGHT 140 lbs, Order A64036

2шт.

15

11-1088

BOLT (MACHINE)

BOLT round head, square neck, 5/8 x 5-1/2" NC

8шт.

15

111-624

CARRIAGE BOLT,Short NK, 5/8"-11 x 6 1/2", G2

BOLT round head, square neck, 5/8 x 6-1/2" NC

8шт.

16

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64"

8шт.

17

92-19

WASHER lock, 5/8"

8шт.

18

25-1010

NUT,5/8"-11, G5

8шт.

22

A33258

BOLT

KIT rear wheel weight, For 32 and 38" cast, machine item, additional, Includes Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT 140 lbs, Order A33258

2шт.

25

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT round head, square neck, 5/8 x 4" NC

8шт.

26

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64"

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

25-1010

NUT,5/8"-11, G5

8шт.
