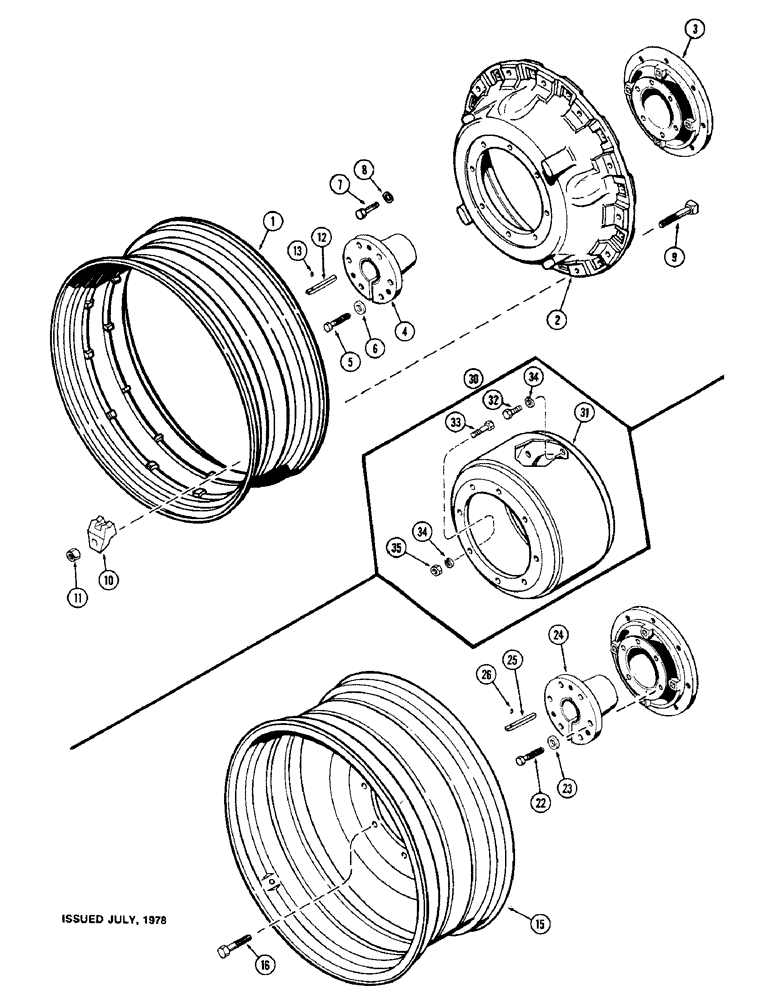

Запчасти Case IH 1570 (140) - DUAL REAR WHEELS, CAST, WITH 38 INCH RIMS (06) - POWER TRAIN

1

A61577

RIM

rear wheel, Use with 18.4 x 38 tire

4шт.

1

A61578

RIM

rear wheel, Use with 20.8 x 38 tire

4шт.

2

A65417

WHEEL

rear

4шт.

3

A63804

HUB

universal

4шт.

4

A63805

BUSHING

wheel hub, with 3/4" keyway

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, bushing, 3/4 x 4-1/2" NC

24шт.

6

D31328

WASHER

bolt, 3/4 x 1-5/8 x 1/4"

24шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, wheel to hub, 5/8 x 2-3/4" NC

32шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, rim clamp, 3/4 x 3-1/2" NC

48шт.

10

A57654

CLAMP

, Serial Range: rim-wheel

48шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex, 3/4" NC

48шт.

12

A63219

KEY

hub to axle, 3/4" square x 6"

4шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

15

A65473

WHEEL

rear, Use with 18.4 x 38 tire, stamped, with 3/8" rims

2шт.

15

A65474

WHEEL

rear, Use with 20.4 x 38 tire, stamped, with 3/8" rims

2шт.

16

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex, wheel to hub, 5/8 x 2" NC, stamped, with 3/8" rims

16шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Stamped, with 3/8" rims 5/8"

16шт.

18

129-563

NUT,5/8"-11, G8

hex, 5/8" NC, stamped, with 3/8" rims

16шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, hub bushing, 3/4 x 4-1/2" NC, stamped, with 3/8" rims

12шт.

23

D31328

WASHER

bolt, 3/4 x 1-5/8 x 1/4", stamped, with 3/8" rims

12шт.

24

A63805

BUSHING

hub, with 3/4" keyway, stamped, with 3/8" rims

2шт.

25

A63219

KEY

hub to axle, 3/4" square x 6", stamped, with 3/8" rims

2шт.

26

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Stamped, with 3/8" rims 1/4" x 1/2", Slotted

2шт.

27

A63804

HUB

universal, stamped, with 3/8" rims

2шт.

30

A67397

ATTACHMENT spacer, machinery item, Includes Ref. 31 - 35, dual wheel

1шт.

31

A145968

SPACER

dual wheel, Replaces A65475

2шт.

32

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

hex, spacer to hub, 5/8 x 2-1/4" NC, grade 8

16шт.

33

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

hex, Used with cast wheel only, 5/8 x 2-3/4" NC, grade 8

16шт.

34

A147095

WASHER

lock, special, 5/8"

32шт.

35

129-563

NUT,5/8"-11, G8

hex, spacer to wheel, 5/8" NC

16шт.
