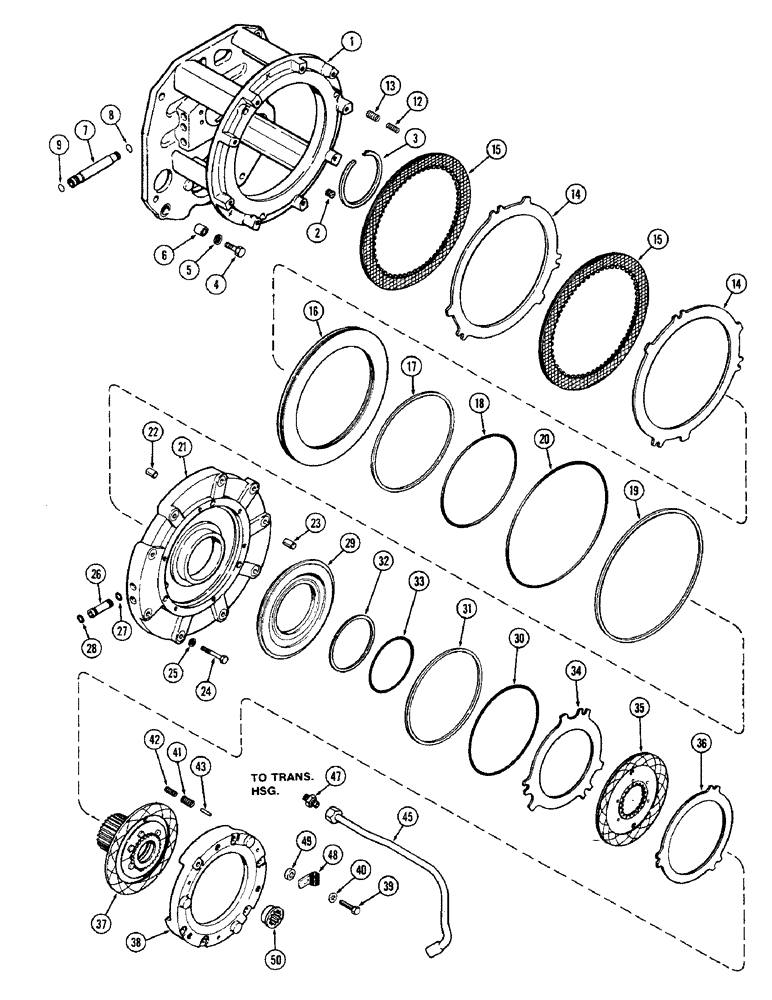

Запчасти Case IH 1370 (174) - (C1) AND (C4) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A151274

CARRIER

ASSY - power shift (Replaces A67262), Incl. Ref. 2

1шт.

2

221-841

PLUG

Pipe, 1/4" hex. socket

2шт.

3

A140045

RING

Retaining

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

A50011

SLEEVE

SLEEVE - dowel

2шт.

7

A152370

TUBE

Oil (5.47") (Replaces A63118)

3шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Inner

3шт.

Part of Seal Kit P/N A46286.

1шт.

9

A65918

O-RING,0.551" ID x 0.691" OD

Outer

3шт.

Part of Seal Kit P/N A46286.

1шт.

12

A62607

SPRING

Return, clutch plate (23/64" dia. x 1-3/32" free length)

3шт.

13

A62606

SPRING

Return, clutch plate (9/16" dia. x 1-3/32" free length)

3шт.

14

A58056

PLATE

Steel (C4) Clutch

2шт.

15

A67128

PLATE

Friction (C4) Clutch

2шт.

16

A146671

PISTON

(C4) Clutch

1шт.

17

A150752

O-RING,9.206" ID x 0.107" OD

Internal seal (C4) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

18

A146681

SEAL

SEAL - internal (C4) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

19

A146680

RING

SEAL - external (C4) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

External seal (C4) piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

21

A67081

CARRIER

ASSY - piston (C1) and (C4) Clutches, Incl. Ref.22 and 23

1шт.

22

A65555

PIN

(C4) Plate (1-37/64" long)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

(C1) Plate (1-5/64" long)

3шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

9шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened (7/16 x 3/4 x 1/32")

9шт.

26

A152371

TUBE

Oil (Replaces A63096)

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

Outer

2шт.

Part of Seal Kit P/N A46286.

1шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Inner

2шт.

Part of Seal Kit P/N A46286.

1шт.

29

A146670

PISTON

(C1) Clutch

1шт.

30

A150753

O-RING,7.84" ID x 0.107"

External seal (C1) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

31

A146682

RING

SEAL - external (C1) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

32

A146683

RING

SEAL - internal (C1) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

33

A150754

O-RING,4.718" ID x 0.107"

Internal seal (C1) Piston

1шт.

Part of Seal Kit P/N A46286.

1шт.

34

A65524

PLATE

Steel w/tab (C1) Clutch

1шт.

35

A142536

PLATE

Friction (C1) Clutch

1шт.

36

A65525

PLATE

Steel w/o tab (C1) Clutch

1шт.

37

A150111

GEAR

ASSY - sun

1шт.

38

A150128

PLATE

Reaction (C1) Clutch

1шт.

39

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

5шт.

39

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

(Tube clip)

1шт.

40

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened (7/16 x 3/4 x 1/32")

6шт.

41

A62606

SPRING

Return, clutch plate (9/16" dia. x 1-3/32" free length)

3шт.

42

A62607

SPRING

Return, clutch plate (23/64" dia. x 1-3/32" free length)

3шт.

43

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

3шт.

45

REF

INSTRUCTION

TUBE ASSY - clutch lube (See Figure 156)

1шт.

50

A76482

BUSHING,20T

PTO drive shaft

1шт.

A46286

SEAL KIT,Power Shift

Seal, Incl. Ref. 8, 9, 17 - 20, 27, 28 and 30 - 33

1шт.
