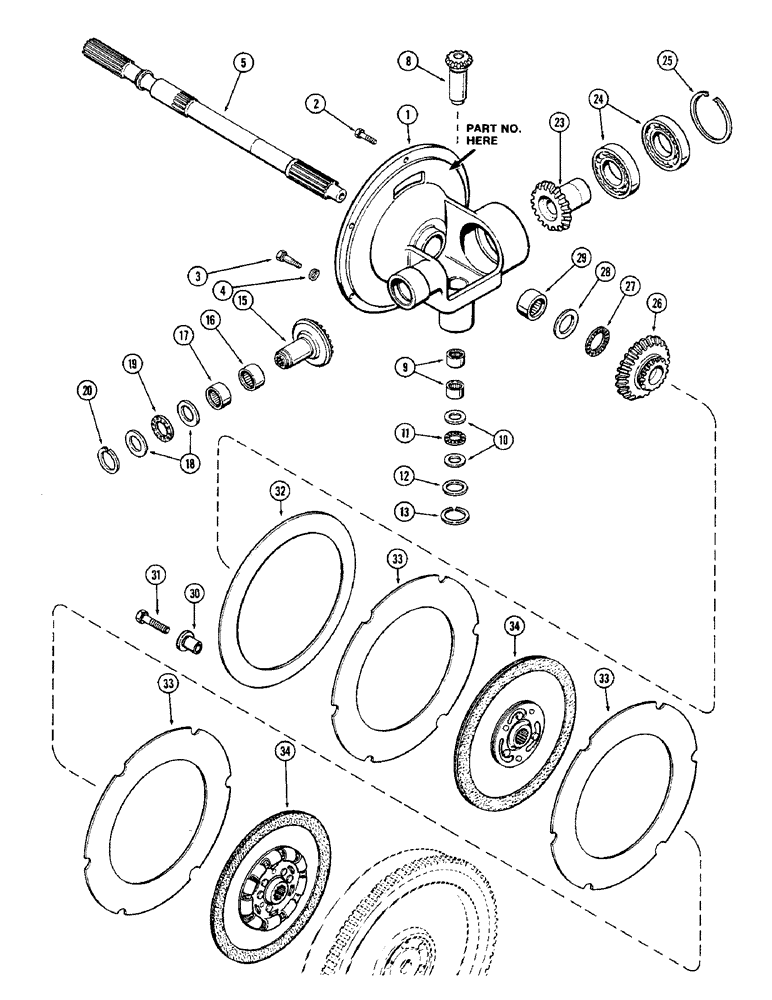

Запчасти Case IH 1370 (172) - TORQUE LIMITER AND PUMP DRIVE, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A66422

HOUSING

- pump drive (1st used trans. ser. no. 2428701)

1шт.

1

A63060

HOUSING - pump drive to trans., Serial Range: -2428701

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

5шт.

3

A63062

BOLT

- dowel (3/8" N.C.)

1шт.

4

92-7

LOCK WASHER,7/16"

1шт.

5

A66136

SHAFT

- P.T.O. front

1шт.

8

A63074

GEAR

- bevel, charging pump (22T)

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING - roller (1-1/8 x 1-3/8 x 3/4")

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE - thrust bearing (7/8 x 1-15/32 x 1/16")

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust

1шт.

12

A63076

WASHER

RACE - thrust bearing (1-1/8 x 1-3/4 x 1/16")

1шт.

13

A64081

RING

- snap, internal (0.094")

1шт.

13

A64082

RING

- snap, internal (0.084")

1шт.

13

A64083

RING

- snap, internal (0.074")

1шт.

15

A142862

GEAR

- bevel, dual pump (13T) (Replaces A63069)

1шт.

16

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - roller (1-3/8 x 1-3/4 x 1")

1шт.

17

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - roller (1-3/8 x 1-3/4 x 3/4")

1шт.

18

A63070

BEARING WASHER,1.262" ID x 1.917" OD x 0.126"

RACE - thrust bearing (1-1/4 x 1-5/16 x 1/8")

2шт.

19

F51467

THRUST BEARING

BEARING, Needle, Thrust

1шт.

20

A64078

RING, SNAP

RING - snap, internal (0.094")

1шт.

20

A64079

RING, SNAP

RING - snap, internal (0.084")

1шт.

20

A64080

RING, SNAP

RING - snap, internal (0.074")

1шт.

23

A64039

GEAR

- bevel, optional pump (47T)

1шт.

24

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, optional pump gear

2шт.

25

A63081

SNAP RING,#393, 4.234", Int

RING - snap, internal (0.109")

1шт.

25

A63082

RING, SNAP

RING - snap, internal (0.099")

1шт.

25

A63083

RING, SNAP

RING - snap, internal (0.089")

1шт.

26

A64372

GEAR

- pump drive (33T)

1шт.

27

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - needle thrust

1шт.

28

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

RACE - thrust bearing (1-1/2 x 2-5/32 x 3/32")

1шт.

29

A63061

BEARING, NEEDLE,1.4995" ID x 1.8750" OD x 1"

BEARING - needle (1-1/2 x 1-7/8 x 1")

1шт.

30

A63931

RETAINER

- clutch spring (1-1/4" lg.) to eng., Serial Range: -2538170

6шт.

30

A76467

WASHER

RETAINER - clutch spring (1-3/64" lg.) (1st used eng. ser. no. 2538170) (Order A153849)

6шт.

31

26-838

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 8

- 1/2 x 2-3/8" N.C. hex. to eng., Serial Range: -2538170

6шт.

31

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" N.C. hex. (1st used eng. ser. no. 2538170)

6шт.

32

A64370

SPRING

- Belleville (Yellow coded) (0.177" thick)

1шт.

33

A58036

PLATE

- pressure (Use only 2 after eng. ser. no. 2538170)

3шт.

34

A63930

CLUTCH DISC

LIMITER - torque (12")

2шт.
