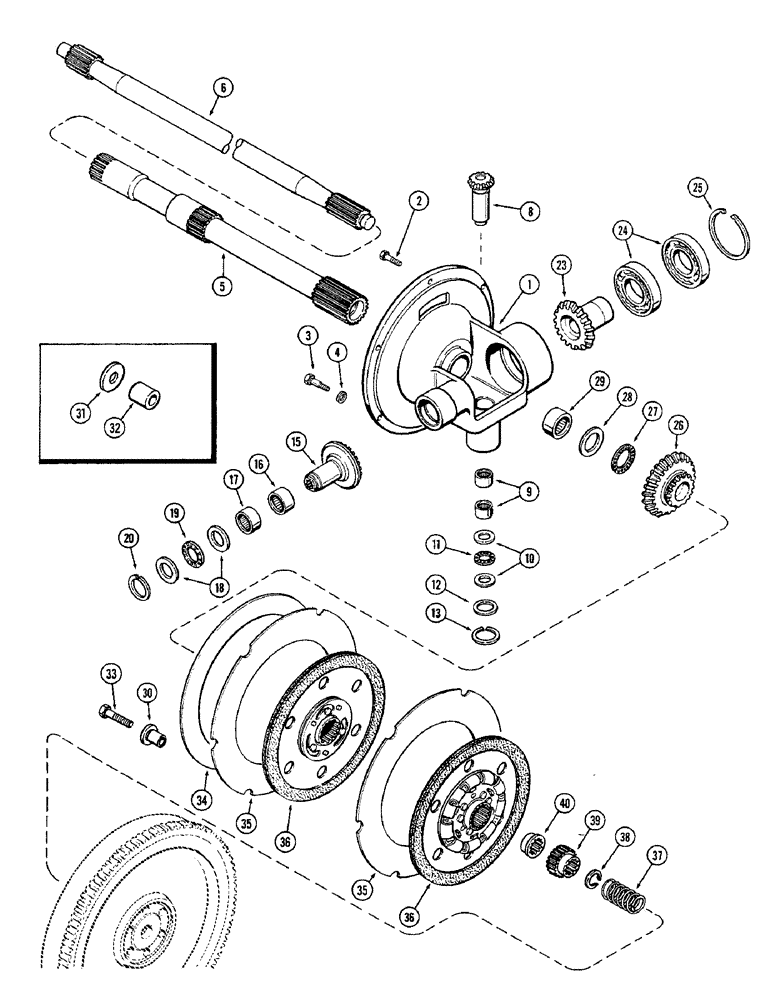

Запчасти Case IH 1370 (170) - TORQUE LIMITER AND PUMP DRIVE, FIRST USED TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A66422

HOUSING

- pump drive

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

5шт.

3

A63062

BOLT

- shoulder, 3/8" N.C. x 1-5/8"

1шт.

4

92-7

LOCK WASHER,7/16"

1шт.

5

A150144

SHAFT

- front, PTO (1st used transmission serial no. 10057514)

1шт.

5

A66408

SHAFT

- front, PTO to transmission, Serial Range: -10057514

1шт.

6

REF

INSTRUCTION

SHAFT - rear, PTO (See Figure 182)

1шт.

8

A63074

GEAR

- charging pump (22 external bevel teeth)

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING - roller, 1-1/8 x 1-3/8 x 3/4"

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE - trust bearing, 7/8 x 1-1/2 x 1/16"

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

12

A63076

WASHER

RACE - thrust bearing, 1-1/8 x 1-3/4 x 1/16"

1шт.

13

A64081

RING

- snap, 0.094" (1-15/16" free diameter)

1шт.

13

A64082

RING

- snap, 0.084" (1-15/16" free diameter)

1шт.

13

A64083

RING

- snap, 0.074" (1-15/16" free diameter)

1шт.

15

A142862

GEAR

- dual pump (47 external bevel teeth)

1шт.

16

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - roller, 1-3/8 x 1-3/4 x 1"

1шт.

17

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - roller, 1-3/8 x 1-3/4 x 3/4"

1шт.

18

A63070

BEARING WASHER,1.262" ID x 1.917" OD x 0.126"

RACE - thrust bearing, 1-1/4 x 1-15/16 x 1/8"

1шт.

19

F51467

THRUST BEARING

BEARING, Needle, Thrust

1шт.

20

A64078

RING, SNAP

RING - snap, 0.094" (2-3/16" free diameter)

1шт.

20

A64079

RING, SNAP

RING - snap, 0.084" (2-3/16" free diameter)

1шт.

20

A64080

RING, SNAP

RING - snap, 0.074" (2-3/16" free diameter)

1шт.

23

A64039

GEAR

- optional pump (47 external bevel teeth)

2шт.

24

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, 2-5/32 x 3-15/16 x 13/16"

2шт.

25

A63081

SNAP RING,#393, 4.234", Int

RING - snap, 0.109"

1шт.

25

A63082

RING, SNAP

RING - snap, 0.099"

1шт.

25

A63083

RING, SNAP

RING - snap, 0.089"

1шт.

26

A142863

GEAR

- pump drive (33 and 47 external bevel teeth)

1шт.

27

A66478

THRUST BEARING,2.007" ID x 2.74" OD x 0.0781"

BEARING - needle, thrust

1шт.

28

A66479

RING

RACE - thrust bearing, 2 x 2-3/4 x 3/32"

1шт.

29

A66476

NEEDLE BEARING,2" ID x 2.375" OD x 1" L

BEARING - roller, 2 x 2-3/8 x 1"

1шт.

30

A153849

RETAINER

- clutch spring (1 piece) (Replaces A76467 and A152970) (See Ref. 31 and 32)

6шт.

31

A67195

WASHER

- spring retainer (2 piece, used with A77338 spacer) (Order A153849 retainer and discard A67195 and A77338)

6шт.

32

A77338

BUSHING

SPACER - spring retainer (2 piece, used with A67195 washer) (Order A153849 retainer and discard A67159 and A77338)

6шт.

33

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- retainer, 1/2 x 2-1/4" N.C. hex.

6шт.

34

A64370

SPRING

- Belleville, 0.177" with yellow color code

1шт.

35

A58036

PLATE

- pressure

2шт.

36

A155236

PLATE

LIMITER - torque (12" diameter with lube holes) (Replaces A65422 and A153079)

2шт.

37

A65416

SPRING

- input drive shaft

1шт.

38

A76480

RING

SNAP - spring retaining to transmission, Serial Range: -10056403

1шт.

39

A66610

SLEEVE

- drive shaft

1шт.

40

A76482

BUSHING,20T

- drive shaft

1шт.
