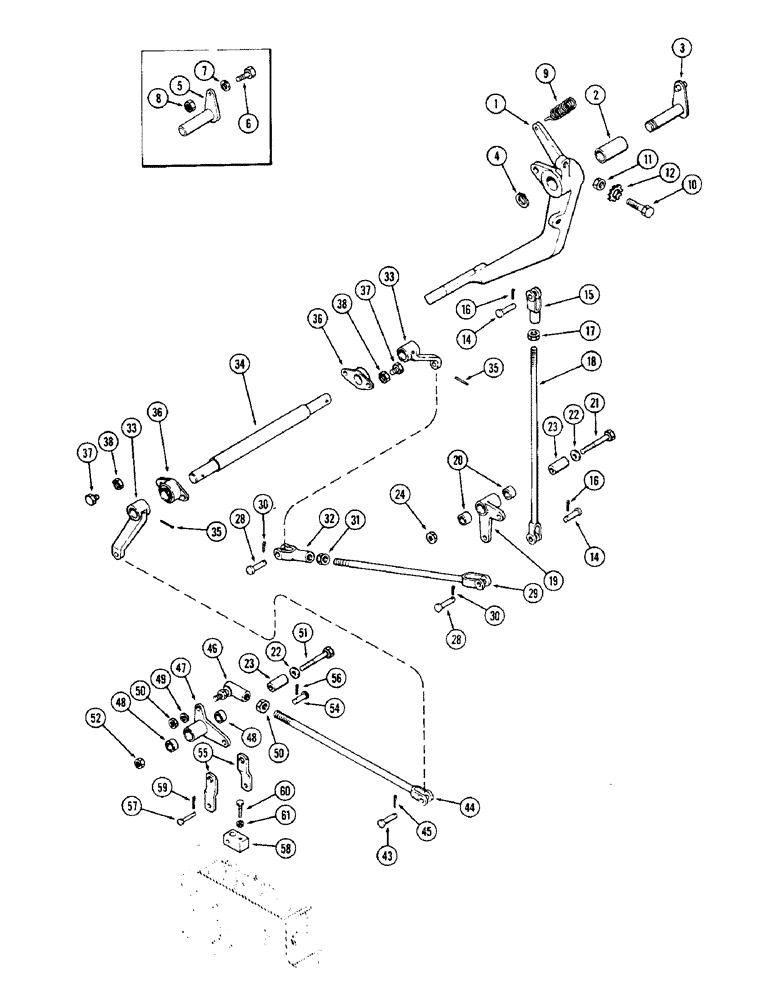

Запчасти Case IH 1370 (168) - FOOT CLUTCH LINKAGE (06) - POWER TRAIN

1

A63359

PEDAL

ASSEMBLY - foot clutch, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- 3/4 x 1 x 2"

1шт.

3

A143472

SHAFT

- pivot, clutch pedal (1st used P.I.N. 8818921)

1шт.

4

A33531

SNAP RING,#75, Ext

Ring, Snap, , pivot pin #75, Ext

1шт.

5

A60305

SHAFT

- pivot, clutch pedal, Serial Range: -8818921

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pivot shaft Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

9

A137396

SPRING

- clutch pedal return

1шт.

10

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

1шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

12

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8" adjustable

1шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

18

A63020

ROD

-, Serial Range: pedal-bellcrank

1шт.

19

A63362

DIPPER

BELLCRANK ASSEMBLY - clutch, intermediate, Includes: Ref. 20

1шт.

20

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- 5/8 x 3/4 x 1/2"

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 5/8 x 5/64"

2шт.

23

A65345

SHAFT

- clutch bellcrank

2шт.

24

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex., Esna

1шт.

28

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

29

A63020

ROD

- bellcrank to cross shaft

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/" N.F. hex.

1шт.

32

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8" adjustable

1шт.

33

A64388

LEVER

- clutch operating

2шт.

34

A64387

SHAFT

- cross, clutch operating

1шт.

35

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

2шт.

36

A63366

SPHERICAL BEARING,19mm ID

BEARING - clutch cross shaft

2шт.

37

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

38

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

43

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

44

A63020

ROD

- lever to rear bellcrank

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

46

A60307

JOINT

- ball, 3/8"

1шт.

47

A63362

DIPPER

BELLCRANK ASSEMBLY - clutch spool, Includes: Ref. 48

1шт.

48

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- 5/8 x 3/4 x 1/2"

2шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

51

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

52

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex., Esna

1шт.

54

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

55

A63367

LINK

- clutch spool bellcrank

2шт.

56

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

57

A8824

PIN

- clevis (Lever return and, Serial Range: link-spool)

1шт.

58

A63368

LEVER

- clutch spool return

1шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

60

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

61

25-114

NUT,1/4"-28, G5

- 1/4" NF hex.

1шт.
