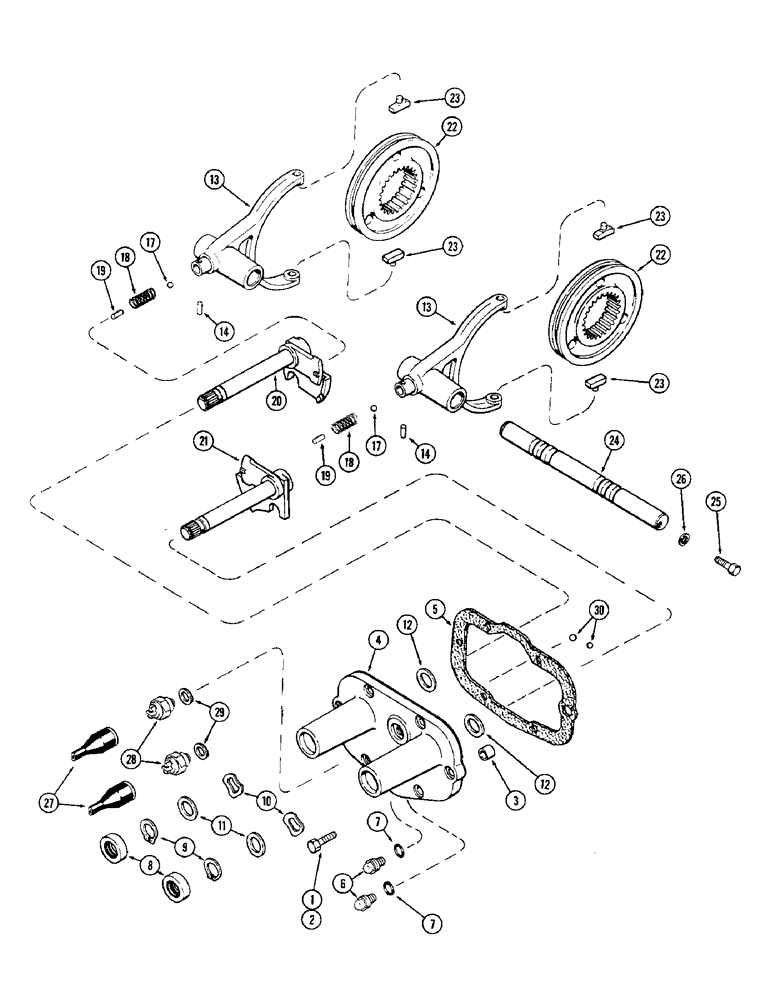

Запчасти Case IH 1370 (166) - RANGE SHIFT MECHANISM, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

5шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

3

A63167

SLEEVE

- dowel, Serial Range: housing-trans.

1шт.

4

A64066

HOUSING

- shifter

1шт.

5

A64067

GASKET

-, Serial Range: housing-trans.

1шт.

6

A58420

GAUGE

- sight, oil level

2шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- oil gauge (5/8 x 13/16 x 3/32")

2шт.

8

75008

OIL SEAL

- shifter lever shaft

2шт.

9

B18208

SNAP RING,#100, Ext

lever shaft #100, Ext

2шт.

10

A63169

SPRING

- wave washer

2шт.

11

G46081

BEARING WASHER

WASHER - spacer (1 x 1-1/2 x 1/32")

2шт.

12

A65121

SHIM,.005" Thk

Shifter lever .005" Thk

1шт.

13

A66104

LEVER

FORK - shifter collar

2шт.

14

135-140

GROOVED PIN,1/4" x 7/8", Type A, Hardened

Pin, Grooved, , shearproof 1/4" x 7/8", Type A, Hardened

2шт.

17

211-12

BALL,7/16 Dia

- shifter fork (7/16" dia.)

2шт.

18

A26530

SPRING

- detent

2шт.

19

A66106

PIN

- detent spring

2шт.

20

A64062

LEVER

- shifter collar (1st and 2nd)

1шт.

21

A64064

LEVER

- shifter collar (3rd and 4th)

1шт.

22

A66107

COLLAR

- sliding

2шт.

23

A65101

FINGER

- shifter fork

4шт.

24

A66753

RAIL

- shifter

1шт.

25

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex.

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

A20991

BOOT

- neutral start switch

1шт.

28

A20990

SWITCH

- safety, neutral start

1шт.

29

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

30

211-13

BALL,1/2" Dia

(Neutral start) 1/2" Dia

2шт.
