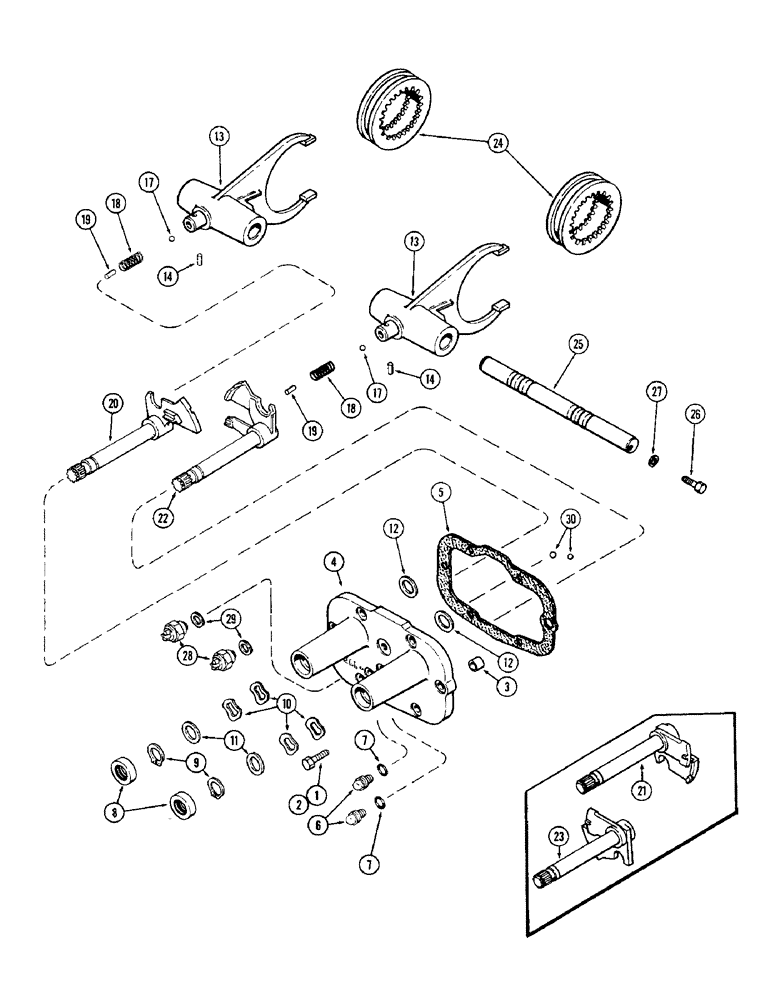

Запчасти Case IH 1370 (164) - RANGE SHIFT MECHANISM, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

5шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

3

A63167

SLEEVE

- dowel

1шт.

4

A144097

HOUSING

- shifter

1шт.

5

A64067

GASKET

- housing to trans. case

1шт.

6

A58420

GAUGE

- oil sight (Glass)

2шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- oil gauge (5/8 x 13/16 x 3/32")

2шт.

8

75008

OIL SEAL

- shifter shaft

2шт.

9

B18208

SNAP RING,#100, Ext

shifter shaft #100, Ext

2шт.

10

A63169

SPRING

- wave washer

4шт.

11

G46081

BEARING WASHER

WASHER - shifter shaft, 1 x 1-1/2 x 1/32"

2шт.

12

A65121

SHIM,.005" Thk

Shifter shaft, 1" x 2" .005" Thk

1шт.

13

A136728

FORK

- gear shifter

2шт.

14

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, , Shear proof type A 1/4" x 7/8", Slotted

2шт.

17

211-12

BALL,7/16 Dia

- 7/16" dia., shifter fork

2шт.

18

A26530

SPRING

- detent

2шт.

19

A66106

PIN

- detent spring to trans., Serial Range: -10032099

2шт.

20

A146851

LEVER

- shift (1st and 2nd) (1st used trans. ser. no. 10032099)

1шт.

21

A144098

LEVER

- shift (1st and 2nd) to trans. (Order A146851 and A146852), Serial Range: -10032099

1шт.

22

A146852

LEVER

- shift (3rd and 4th) (1st used trans. ser. no. 10032099)

1шт.

23

A144099

LEVER

- shift (3rd and 4th) to trans. (Order A146852 and A146851), Serial Range: -10032099

1шт.

24

A138190

COLLAR

- sliding

2шт.

25

A66753

RAIL

- shifter

1шт.

26

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex.

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

A139078

SWITCH

- neutral start

2шт.

29

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

30

211-13

BALL,1/2" Dia

(Neutral start) 1/2" Dia

2шт.
