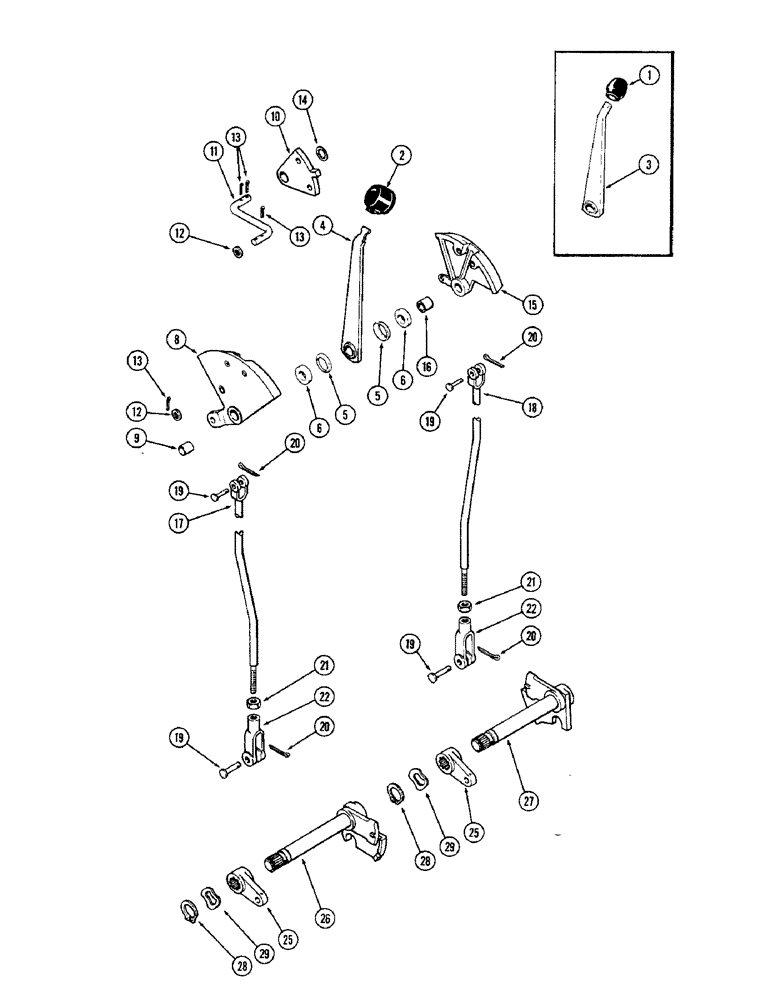

Запчасти Case IH 1370 (162) - RANGE SHIFT LINKAGE, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

A65699

KNOB

- hand lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- hand lever (Rubber)

1шт.

3

A60360

LEVER

- hand (w/threaded top) (Order Ref. 2 and 4)

1шт.

4

A137816

LEVER

- hand (Replaces A60360)

1шт.

5

A59662

WASHER

- hand lever

2шт.

6

A60367

SPACER

- quadrant

2шт.

8

A64811

QUADRANT

ASSEMBLY - range shift (3rd and 4th), Includes: Ref. 9

1шт.

9

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

10

A135501

LEVER

- reverse lockout (Replaces A64813)

1шт.

11

A64816

ROD

LINK - reverse lockout

1шт.

12

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 5/64" (Link to quadrant)

2шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

14

A64584

SNAP RING,#62, Ext

Ring, Snap, , link to lever #62, Ext

1шт.

15

A61872

QUADRANT

ASSEMBLY - range shift (1st and 2nd), Includes: Ref. 16

1шт.

16

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

17

A63019

ROD

- range shift (3rd and 4th)

1шт.

18

A63018

ROD

- range shift (1st and 2nd)

1шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

22

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift rod

2шт.

25

A64936

LEVER

- actuating

4шт.

26

A64064

LEVER

- shift fork, range (3rd and 4th)

1шт.

27

A64062

LEVER

- shift fork, range (1st and 2nd)

1шт.

28

B18208

SNAP RING,#100, Ext

actuating lever #100, Ext

2шт.

29

A76552

SPRING

- lever

2шт.
