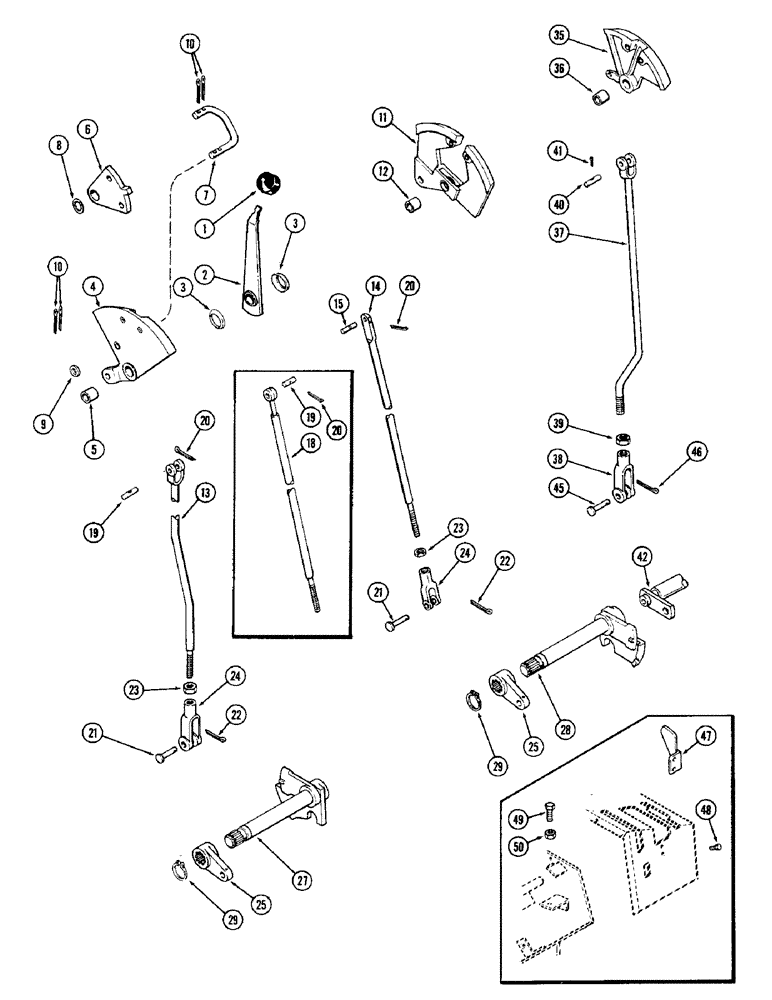

Запчасти Case IH 1370 (160) - RANGE SHIFT LINKAGE, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

A137806

KNOB

Range shift hand lever

1шт.

2

A137816

LEVER

Hand, range shift

1шт.

3

A59662

WASHER

Range shift hand lever

2шт.

4

A135170

QUADRANT

ASSEMBLY - range shift (3rd and 4th), Includes: Ref. 5

1шт.

5

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

Quadrant (5/8 x 3/4 x 3/4")

1шт.

6

A135501

LEVER

Reverse lockout

1шт.

7

A143350

ROD

LINK - reverse lockout (Replaces A135228)

1шт.

8

A64584

SNAP RING,#62, Ext

Reverse lockout link

1шт.

9

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (1 on each side of quadrant on link)

2шт.

10

132-26

COTTER PIN

3/32" x 3/4"

4шт.

11

A61869

QUADRANT

ASSEMBLY - range shift (1st and 2nd), Includes: Ref. 12

1шт.

12

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

Quadrant (5/8 x 3/4 x 1/4")

2шт.

13

A63019

ROD

Range shift (3rd and 4th)

1шт.

14

A147361

ROD

Range shift (1st and 2nd) (1st used P.I.N. 8813860)

1шт.

15

A145484

PIN,9.46mm OD x 28.57mm L

Rod to quadrant (1st and 2nd) (1st used P.I.N. 8813860)

1шт.

18

A135929

ROD

Range shift (1st and 2nd) (Order A145484 and A147361), Serial Range: -8813860

1шт.

19

A59258

PIN

, Serial Range: Rod-quadrant

2шт.

20

132-30

COTTER PIN,3/32" x 1 1/4"

2шт.

21

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

22

132-26

COTTER PIN

3/32" x 3/4"

2шт.

23

25-116

NUT,Hex, 3/8"-24, G5

2шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod

2шт.

25

A64936

LEVER

Trans. range shift (1st and 2nd, 3rd and 4th)

2шт.

27

REF

INSTRUCTION

LEVER - range shift (3rd and 4th) (See Figure 144)

1шт.

28

REF

INSTRUCTION

LEVER - range shift (1st and 2nd) (See Figure 144)

1шт.

29

B18208

SNAP RING,#100, Ext

Range shift lever

2шт.

35

A61874

QUADRANT

ASSEMBLY - park lock control, Includes: Ref. 36

1шт.

36

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

Quadrant (5/8 x 3/4 x 3/4"), park lock control

1шт.

37

A135930

ROD

SPARE PART Park lock control

1шт.

38

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

Rod end, park lock control

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

Park lock control

1шт.

40

A59258

PIN

Park lock rod to quadrant, control

1шт.

41

132-30

COTTER PIN,3/32" x 1 1/4"

Park lock control

1шт.

42

REF

INSTRUCTION

LEVER - park lock (See Figure 178), control

1шт.

45

141-54

CLEVIS PIN,3/8" x 1 1/16"

Park lock control

1шт.

46

132-26

COTTER PIN

3/32" x 3/4", park lock control

1шт.

47

A143349

BRACKET

Park lock locating, control

1шт.

48

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

Park lock control

2шт.

49

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Park lock control

2шт.

50

9635082

NUT,5/16" - 18, Gr 5

Park lock control

2шт.
