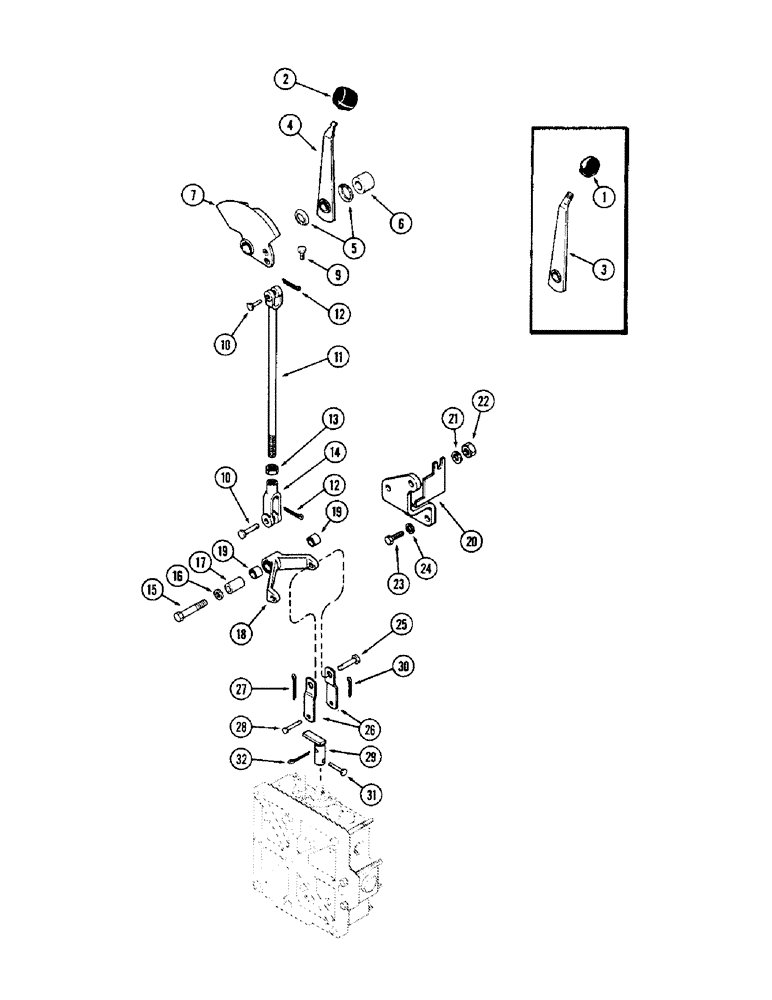

Запчасти Case IH 1370 (158) - POWER SHIFT LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A65699
KNOB
- shift lever (Plastic) (Order A137806)
1шт.
2
A137806
KNOB
- shift lever (Rubber)
1шт.
3
A59661
LEVER
- hand (w/threaded top) (Order Ref. 2 and 4)
1шт.
4
A137815
LEVER
- hand (Replaces A59661)
1шт.
5
A59662
WASHER
- power shift lever
2шт.
6
A59664
SPACER
- power shift quadrant
1шт.
7
A143835
QUADRANT
- (Replaces A135383 and A61862)
1шт.
9
A59463
BOLT
- stop (1/4 x 5/8" w/nylon insert)
1шт.
10
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (Rod and yoke) 3/8" x 1.060"
2шт.
11
A63020
ROD
- power shift
1шт.
12
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
13
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" N.F.)
1шт.
14
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - rod
1шт.
15
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- (3/8 x 2-1/2" N.C. hex.)
1шт.
16
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
1шт.
17
A65345
SHAFT
- power shift bellcrank to mtg. plate
1шт.
18
A63024
DIPPER
BELLCRANK ASSEMBLY - power shift, Includes: Ref. 19
1шт.
19
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- power shift bellcrank
2шт.
20
A63021
PLATE
- bellcrank mounting
1шт.
21
92-6
LOCK WASHER,3/8"
1шт.
22
25-106
NUT,3/8"-16, G5
- hex. (3/8" N.C.)
1шт.
23
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Mounting plate to torque tube Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
24
92-6
LOCK WASHER,3/8"
2шт.
25
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (Link to bellcrank) 3/8" x 1.060"
1шт.
26
A63027
LINK
- power shift, Serial Range: spool-bellcrank
2шт.
27
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
28
A8824
PIN
- clevis (Link to return lever)
1шт.
29
A63028
LEVER
- power shift spool return
1шт.
30
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
31
A8823
PIN,6.29mm OD x 26.99mm L
- clevis (Return, Serial Range: lever-spool)
1шт.
32
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
Выбрано товаров: 31
