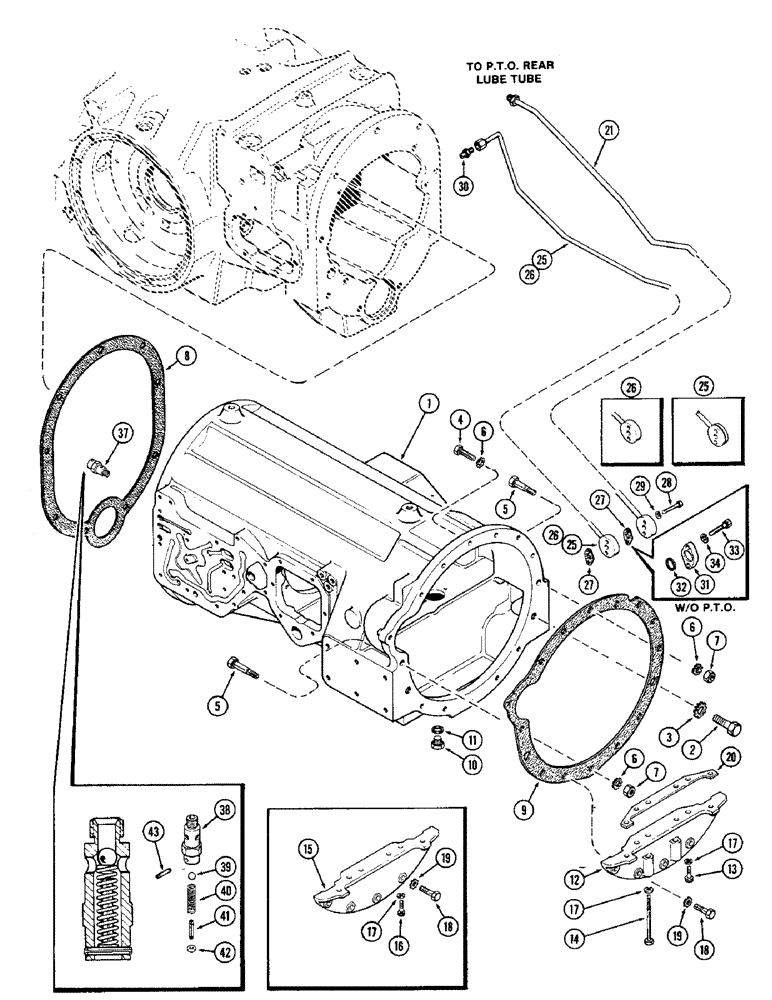

Запчасти Case IH 1370 (154) - TORQUE TUBE (06) - POWER TRAIN

1

A150047

HOUSING

TUBE - torque (Replaces A140160)

1шт.

1

A140160

HOUSING

TUBE - torque (Used transmission serial no. 2476547 through 10031544)

1шт.

1

A66188

HOUSING

TUBE - torque to transmission (Order A150047 torque tube and A67081 carrier from Figure 178), Serial Range: -2476547

1шт.

2

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- engine to torque tube, 3/4 x 2-1/2" N.C. hex.) (Grade 8)

2шт.

3

A34651

LOCK WASHER

- 3/4" external Shakeproof

2шт.

4

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- engine to torque tube, 1/2 x 1-5/8" N.C. hex. (Grade 8)

1шт.

4

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- engine to torque tube, 1/2 x 2" N.C. hex. (Grade 8)

3шт.

4

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

BOLT - engine to torque tube, 1/2 x 2" N.C. Ferry head (Top 3 holes)

3шт.

5

A149765

STEP BOLT

BOLT - dowel, engine to torque tube, 1/2 x 2-5/8" N.C. hex.

1шт.

5

A149764

STEP BOLT

BOLT - dowel, engine to torque tube, 1/2 x 3-1/8" N.C. hex.

1шт.

6

A34650

LOCK WASHER

- 1/2" external Shakeproof

9шт.

7

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

2шт.

8

A150901

GASKET

- torque tube to transmission housing (Replaces A64087)

1шт.

9

A58139

GASKET

- engine to torque tube (B17423 gasket eliminator now used in production)

1шт.

B17423

LOCTITE

ELIMINATOR - gasket (50 CC)

1шт.

10

A140222

PLUG

- drain

1шт.

11

A58608

GASKET

- drain plug

1шт.

12

A144906

PLATE

- seal, flywheel housing (1st used engine serial no. 10095866)

1шт.

13

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - outside holes, 3/8 x 1-1/4" N.C. Ferry head

2шт.

14

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - inside holes, 3/8 x 5-1/2" N.C. hex.

2шт.

15

A75305

PLATE

- seal, flywheel housing to engine (Order 1-A144906 and (2) 13-688 bolts), Serial Range: -10095866

1шт.

16

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 3/6 x 1-1/4" N.C. Ferry head

4шт.

17

12-6

WASHER

- 3/8" lock

4шт.

18

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- seal plate to torque tube, 1/2 x 1-5/8" N.C. hex.

4шт.

19

A34650

LOCK WASHER

- 1/2" external Shakeproof

4шт.

20

A76249

GASKET

- seal plate

1шт.

21

A66142

TUBE

- lube P.T.O.

1шт.

25

A151889

TUBE

- lube, (C1) Clutch (With identification groove) (1st used transmission serial no. 10059756)

1шт.

26

A66144

TUBE

- lube, (C1) Clutch (Without identification groove) to transmission, Serial Range: -10059756

1шт.

27

A66143

GASKET

- lube tubes (With and without P.T.O.)

2шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Lube tubes Hex, 5/16"-18 x 2", G5

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (C1) Lube tube to transmission housing

1шт.

31

A63533

WASHER

CAP - flange (Used without P.T.O.)

1шт.

32

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- flange cap (Used without P.T.O.)

1шт.

33

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex. (C1) Lube tube and flange cap to torque tube (Used without P.T.O.)

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

37

A60890

VALVE

ASSEMBLY - relief, lube oil, Includes: Ref. 38 - 43

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

39

211-9

BALL,5/16" Dia

- relief valve, meter 5/16" Dia

1шт.

40

A60889

SPRING

- relief valve, 1-11/16" free length

1шт.

41

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Spring pilot and stop 3/16" x 1", Slotted

1шт.

42

195-6

WASHER,#6

SEAT - relief spring

1шт.

43

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Relief valve 1/8" x 3/4", Slotted

1шт.
