(152) - FRONT END WEIGHTS

Запчасти Case IH 1370 (152) - FRONT END WEIGHTS (05) - STEERING

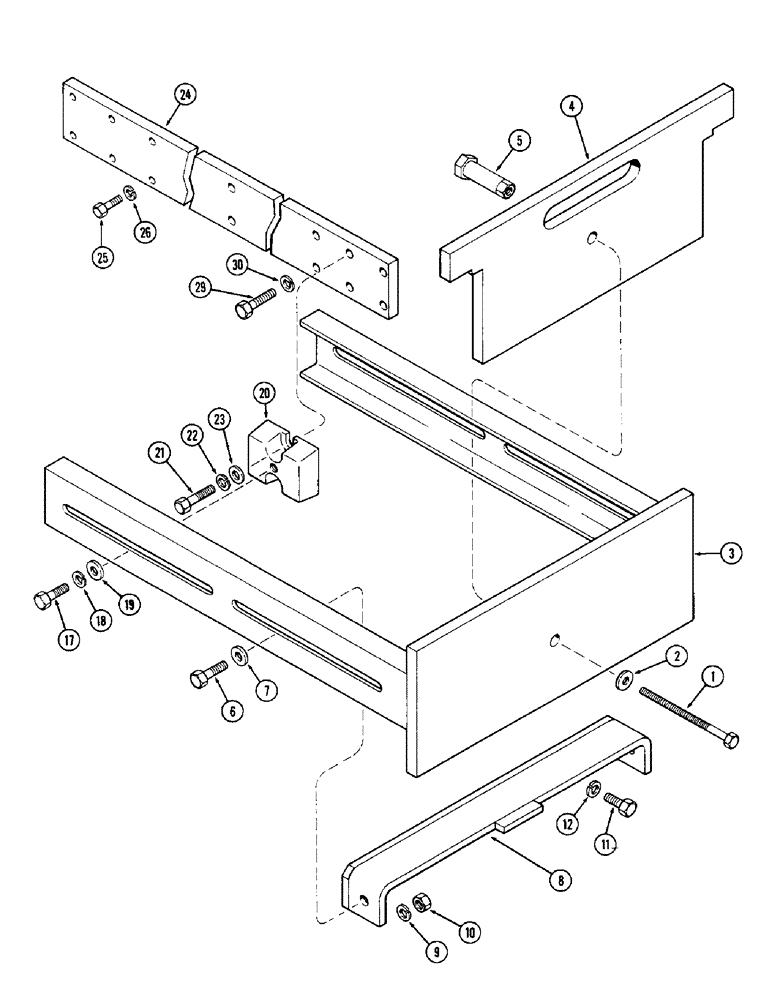

Схема запчастей Case IH 1370 - (152) - FRONT END WEIGHTS (05) - STEERING
21
10
29
6
22
12
7
11
3
30
5
9
25
18
24
23
26
17
20
2
8
4
1
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63820

BOLT

- front weight clamp (9") (Use with 5 - 10 weights)

1шт.

1

A63821

BOLT

- front weight clamp (14") (Use with 11 - 15 weights)

1шт.

2

A61341

WASHER

- front weight clamp

1шт.

3

A63817

HARNESS

SUPPORT - front end weight

1шт.

4

A61345

WEIGHT - front (75 lbs. each) (Add on type) (Mach. item)

1шт.

5

A61338

NUT

- tube, front weight clamp

1шт.

6

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Front weight support to front cross brace Hex, 3/4"-10 x 2 1/4", G5

2шт.

7

A63819

WASHER

- channel to front cross brace

2шт.

8

A63812

BRACKET

BRACE - front weight

1шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Front cross brace to front end casting Hex, 3/4"-10 x 1 3/4", G5

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Front weight support to block Hex, 3/4"-10 x 2 1/4", G5

2шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

19

A63819

WASHER

-, Serial Range: channel-block

2шт.

20

A63816

BLOCK

- front weight frame channel

2шт.

21

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Block to side rail Hex, 3/4"-10 x 2 3/4", G5

4шт.

22

91-12

WASHER - lock (3/4")

4шт.

23

195-45

WASHER,3/4"

4шт.

24

A63796

HUB

RAIL - side

2шт.

25

113-2623

SCREW

BOLT - (3/8 x 2-1/2" N.C. hex.) Side rail to torque tube

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Side rail to torque tube w/cab Hex, 5/8"-11 x 2 1/2", G5

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Side to torque tube used w/o cab Hex, 5/8"-11 x 2 1/2", G5

2шт.

25

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Step and side rail used w/o cab Hex, 5/8"-11 x 3", G5

4шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

29

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Side rail to front end casting Hex, 3/4"-10 x 2 3/4", G5

8шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.
