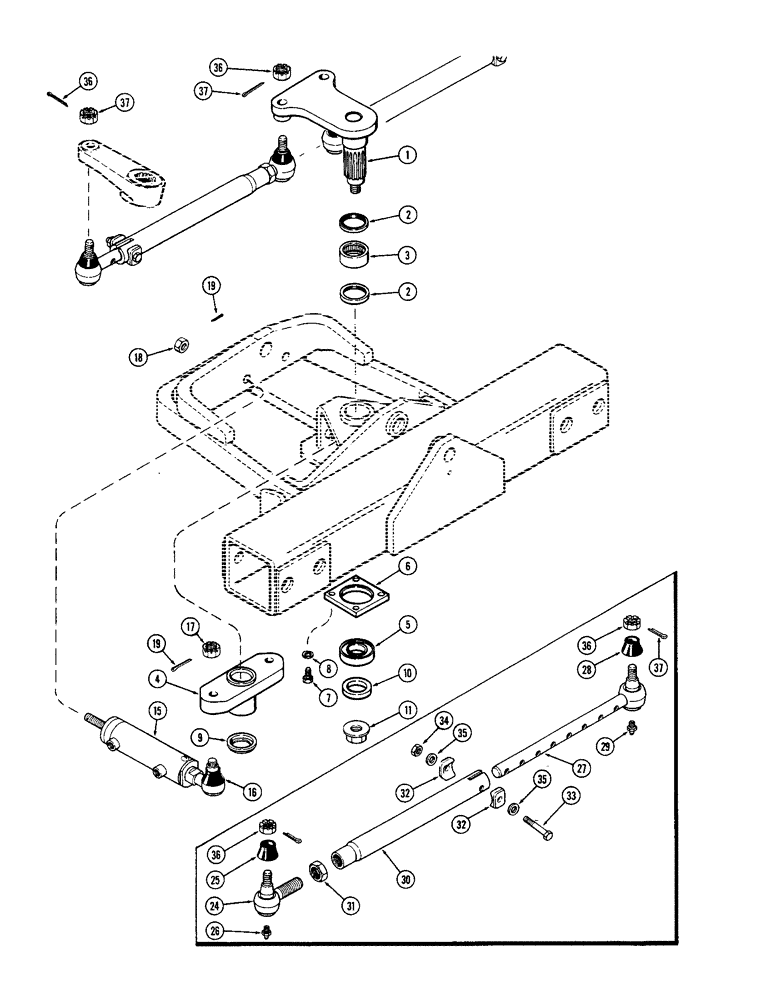

Запчасти Case IH 1370 (148) - CENTER STEERING ARMS AND CYLINDERS (05) - STEERING

1

A65613

ARM

Center steering, upper

1шт.

2

A61414

OIL SEAL

Oil (2-1/8 x 2-1/2 x 3/16")

2шт.

3

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

1шт.

4

A62231

ARM

Center steering, lower

1шт.

5

A137711

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7037"

Ball (Replaces A61888)

1шт.

6

A62212

PLATE

Bearing end cap

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A65539

WASHER

Center steering shaft

1шт.

10

195-2098

WASHER,15/16" x 2" x .238"

SPARE PART (15/16 x 2 x 3/16")

1шт.

11

A65435

LOCK NUT

(7/8" N.C. hex. two-way lock w/flange)

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 140)

2шт.

16

A31186

BOOT

SEAL - weather

2шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

Hex

2шт.

18

25-1112

NUT,3/4"-16, G5

Hex

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

4шт.

24

A43376

JOINT

END ASSEMBLY - Inner (RH thread), tie rods, Includes: Ref. 25 and 26

2шт.

25

A31186

BOOT

Dust (Rubber), tie rods

1шт.

26

219-86

LUBE NIPPLE,1/8" NPTF

Tie rods

1шт.

27

A43374

BALL JOINT

END ASSEMBLY - outer (LH thread), tie rods, Includes: Ref. 28 and 29

2шт.

28

A31186

BOOT

Dust (Rubber), tie rods

1шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

Tie rods

1шт.

30

A137101

TUBE

Intermediate (w/2 slots) (Replaces A43378), tie rods

2шт.

30

A43378

VALVE

TUBE - intermediate (w/1 slot) (Order A137101), tie rods

2шт.

31

A43379

JAM NUT

Lock, tie rods

2шт.

32

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

Tie rod tube (First used P.I.N. 8817747)

4шт.

32

A43369

CLAMP

Tie rod tube, Serial Range: -8817747

2шт.

33

D26421

WASHER

Clamp and bolt, tie rods

4шт.

34

114-260

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

Tie rods

2шт.

35

131-1133

NUT,3/8"-24, GC

Tie rods

2шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

Tie rods

4шт.

37

132-49

COTTER PIN,1/8" x 1 1/8"

Tie rods

4шт.
