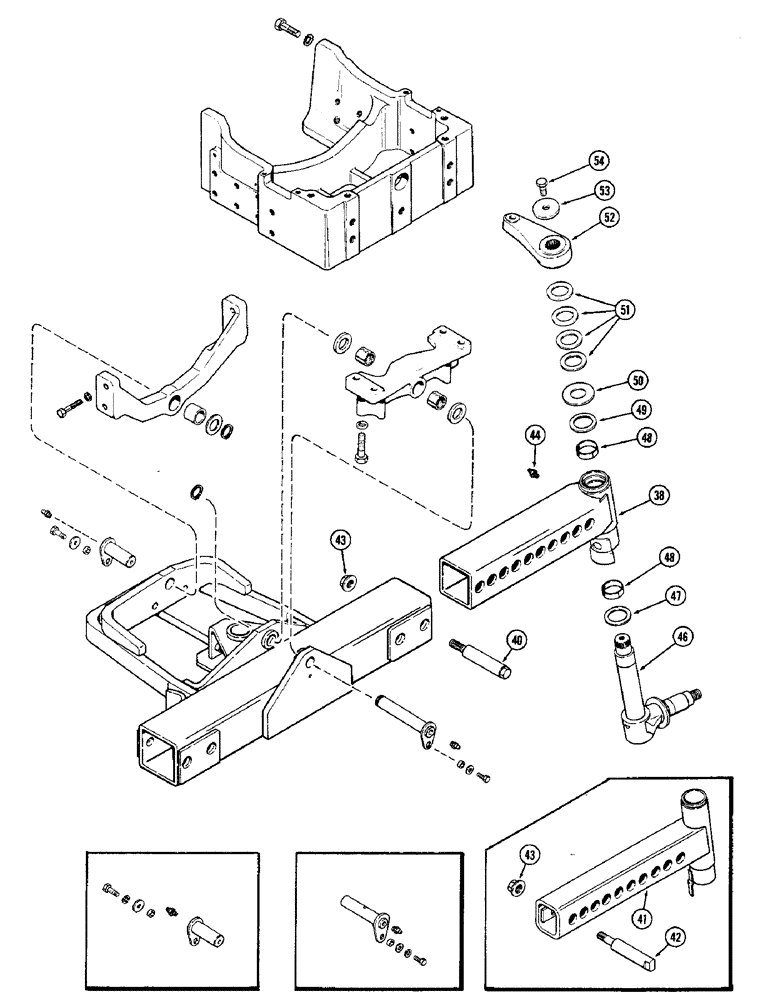

Запчасти Case IH 1370 (146) - ADJUSTABLE FRONT AXLE (05) - STEERING

38

A147998

EXTENSION

AXLE - end section, right hand (Without internal reinforcement plate) (1st used P.I.N. 8834487)

1шт.

38

A149001

AXLE

- end section, left hand (Without internal reinforcement plate) (1st used P.I.N. 8834487)

1шт.

40

A147622

BOLT

- axle (7/8 x 8-1/2" N.C. hex. with spacer) (Used with A147998 and A149001 end sections)

4шт.

41

A65512

EXTENSION

AXLE - end section, right hand (With internal reinforcement plate), Serial Range: -8834487

1шт.

42

A65526

STEP BOLT

- axle, 7/8 N.C. shoulder (Used with A65512 and A65513 end sections)

4шт.

43

A65435

LOCK NUT

- axle bolts, 7/8 NC flanged

4шт.

46

A137069

STEERING KNUCKLE

SPINDLE - front wheel

2шт.

47

A135024

RING

BEARING - thrust, lower, 2-1/4 x 3 x 1/8" nylon

2шт.

48

A143667

BUSHING,59.7mm ID x 62.18mm OD x 19.3mm L

- upper lower, 2-1/4" x 2-7/16 x 3/4" nylon

4шт.

49

A61399

SEAL

- oil, 2-1/4 x 2-7/8 x 1/4"

2шт.

50

A61400

SPACER

SHIELD - dust, spindle

2шт.

51

A35345

SHIM,.0359" Thk

Spindle .0359" Thk

1шт.

51

A35346

SHIM,.0598" Thk

Spindle .0598" Thk

1шт.

51

A35347

SHIM,.1345" Thk

Spindle .1345" Thk

1шт.

52

A61404

ARM

- steering, right hand

1шт.

52

A61405

ARM

- steering, left hand

1шт.

53

A61406

WASHER

- steering arm, 3/4 x 3 x 5/16"

2шт.

54

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Arm to spindle Hex, 3/4"-10 x 1 3/4", G5

2шт.
