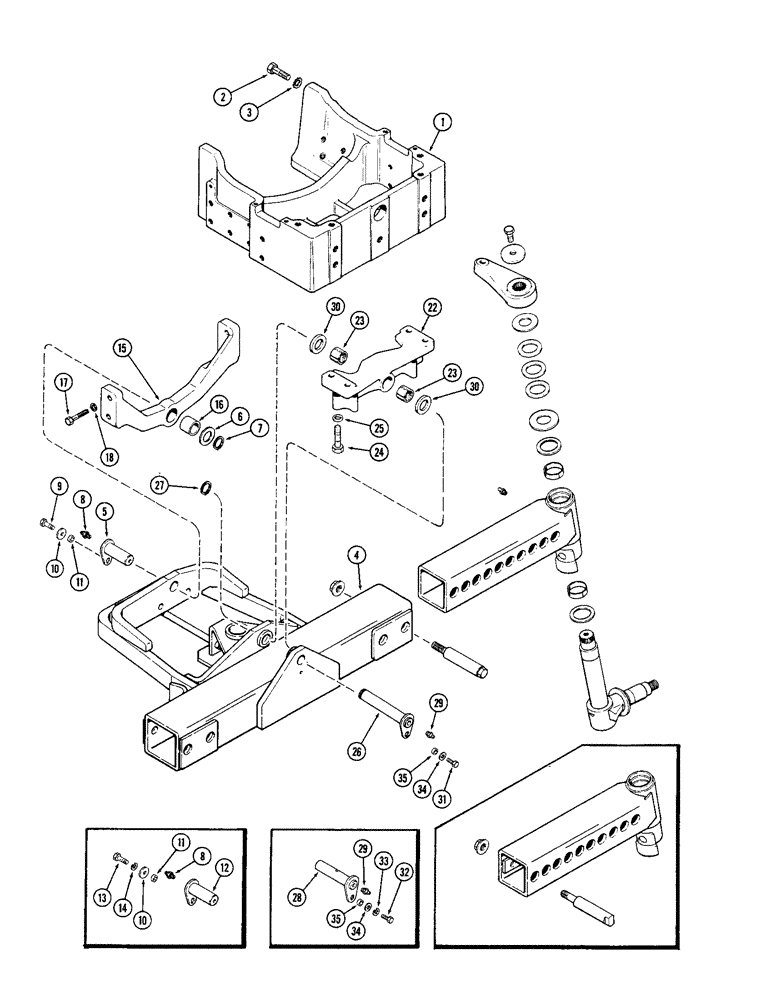

Запчасти Case IH 1370 (144) - ADJUSTABLE FRONT AXLE (05) - STEERING

1

A139846

SUPPORT

- front axle and radiator

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- support (3/4 x 2-1/2" N.C. hex.) (Grade 8)

4шт.

3

193-112

WASHER - 3/4" external Shakeproof

4шт.

A47262

AXLE

KIT - axle center section, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - center section, Includes: Ref. 5 - 11

1шт.

5

A143994

PIN,38.18mm OD x 122.53mm L

- pivot, rear (With groove for snap ring) (1st used P.I.N. 8819854) (See Ref. 12)

1шт.

6

A13406

WASHER

- 1/2 x 2-3/8 x 3/32" (Used with A143994 pin) (See Ref. 14)

1шт.

7

T37909

SNAP RING,#150, Ext

Ring, Snap, , pivot pin, used with A143994 pin #150, Ext

1шт.

8

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

1шт.

9

113-2249

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT - 3/8 x 1-1/4" N.C. scotch grip (Used with A143994 pin) (See Ref. 13)

1шт.

10

A37627

WASHER

- 3/8 x 1-1/2 x 3/16"

1шт.

11

A59660

SPACER

- 3/8 x 9/16 x 1/4"

1шт.

12

A61359

PIN

- pivot, rear (Without snap ring groove) (Order 1-A13406, 1-A143994, 1-T37909 and 1 - 113-2249), Serial Range: -8819854

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Requires lock washer) (Used with A61359 pin) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

(used with 13-620 bolt) 3/8"

1шт.

15

A63980

SUPPORT

ASSEMBLY - axle pivot, rear, Includes: Ref. 16

1шт.

16

A61357

BUSHING,38.05mm ID x 47.7mm OD x 38.1mm L

- 1-1/2 x 1-7/8 x 1-1/2"

1шт.

17

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- rear support, 3/4 x 3" N.C. hex. (Grade 5)

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

NLS

NO LONGER SERVICED

ASSEMBLY - axle pivot, front (Replaces A137287), Includes: Ref. 23

1шт.

23

A147406

BUSHING,38.05mm ID x 42.95mm OD x 32mm L

- 1-9/16 x 1-11/16 x 3/32" (Replaces A137286)

2шт.

24

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- front support Hex, 3/4"-10 x 3", G8

4шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26

A143996

PIN,38.02mm OD x 212.37mm L

- pivot, front (With groove for snap ring) (1st used P.I.N. 8819854)

1шт.

27

T37909

SNAP RING,#150, Ext

Ring, Snap, , pivot pin, used with A143996 pin #150, Ext

1шт.

28

A65517

PIN

- pivot, front (Without snap ring groove) (Order 1-A143996, 1-T37909 and 1 - 113-2249), Serial Range: -8819854

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" P.T., straight

1шт.

30

A61385

WASHER

- thrust, pivot pin, 1-1/2 x 2-1/2 x 3/8"

2шт.

31

113-2249

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT - 3/8 x 1-1/4" N.C. scotch grip (Used with A143996 pin)

1шт.

32

113-2248

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - 3/8 x 1-1/8" N.C. hex. (Requires lock washer) (Used with A65517 pin)

1шт.

33

92-6

LOCK WASHER,3/8"

(used with 113-2248 bolt) 3/8"

1шт.

34

A37627

WASHER

- 3/8 x 1-1/2 x 3/16"

1шт.

35

A59660

SPACER

- 3/8 x 9/16 x 1/4"

1шт.
