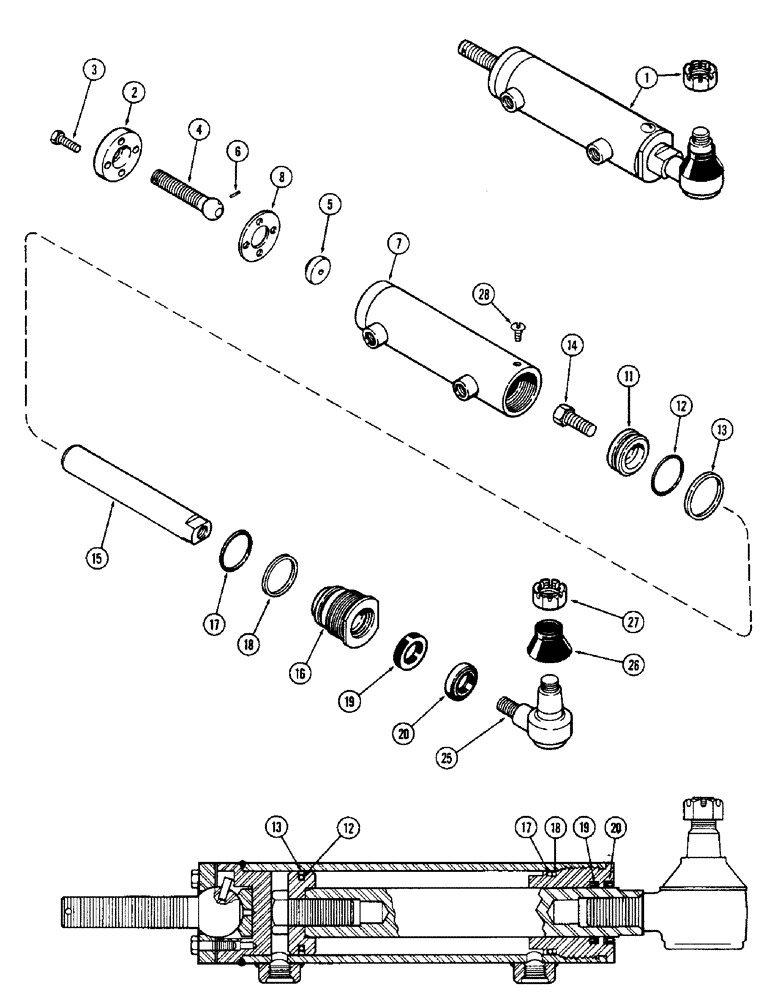

Запчасти Case IH 1370 (140) - G100675 STEERING CYLINDER, 2-1/8 INCH DIAMETER X 5-3/8 INCH STROKE, USED P.I.N. 8788437 TO 8830460 (05) - STEERING

1

G100675

CYLINDER

ASSEMBLY - steering (Order G102129), Includes: Ref. 2 - 28

2шт.

2

A61439

PLATE

- end

1шт.

3

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- (1/4 x 7/8" N.F. hex.)

4шт.

4

A61431

STUD

- ball

1шт.

5

A57918

SEAT

- ball stud

1шт.

6

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order G100675)

1шт.

8

G32837

SHIM,.002" Thk

1шт.

8

G32838

SHIM,.003" Thk

1шт.

8

G32839

SHIM,.005" Thk

- (0.004")

1шт.

8

A61436

SHIM,.010" Thk

1шт.

8

A61437

SHIM,.025" Thk

1шт.

8

A61438

SHIM,.035" Thk

) .035" Thk

1шт.

11

A61428

PISTON ASSY.

PISTON - steering cylinder

1шт.

12

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston (1-11/16 x 1-7/8 x 3/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

13

A61430

SEALING RING

RING - piston seal

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

14

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

15

A62068

ROD

- piston

1шт.

G34820

CYLINDER END CAP

GLAND ASSEMBLY - repair, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

GLAND - packing (Order G34820)

1шт.

17

A60212

O-RING

- packing (1-5/16 x 2-1/8 x 3/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

18

A62070

RING

- back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

19

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

20

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G101021.

1шт.

25

G102130

UNIVERSAL JOINT

JOINT ASSEMBLY - ball (Replaces A62069), Includes: Ref. 26 and 27

1шт.

26

A31186

BOOT

SEAL - weather

1шт.

27

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.C.)

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - (#8-32 x 1/4" self-tapping rd. hd.)

1шт.

G101021

KIT

seal, cylinder repair, Includes: Ref. 12, 13 and 17 - 20

1шт.
