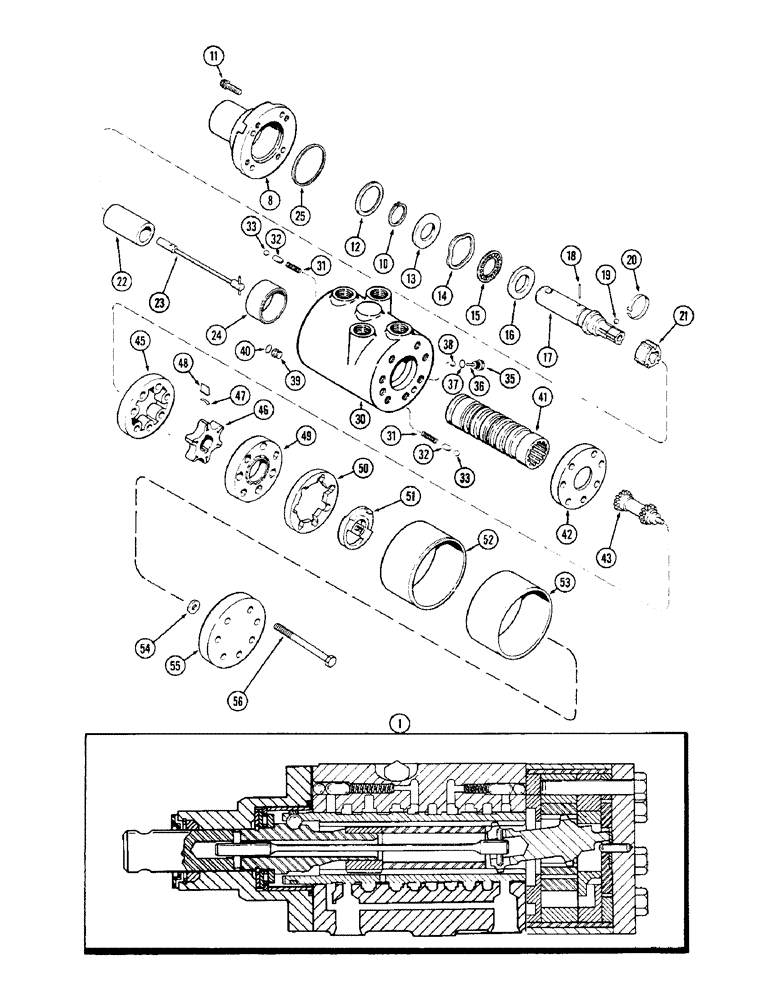

Запчасти Case IH 1370 (134) - STEERING PUMP AND VALVE ASSEMBLY (05) - STEERING

1

A141905

PUMP

ASSEMBLY - steering (1st used P.I.N. 8786191)

1шт.

1

A139841

PUMP

ASSEMBLY - steering (Order A141905), Serial Range: -8786191

1шт.

1

A66390

PUMP

ASSEMBLY - steering (w/end cover dust shield) (Order A141905), Includes: Ref. 8 - 51, Serial Range: -8786191

1шт.

8

REF

INSTRUCTION

COVER ASSEMBLY AND SEALS - (See Figure 136)

1шт.

10

A43720

RING

Bearing retainer

1шт.

11

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

Cap

4шт.

12

A44435

SHIM

KIT - needle bearing

1шт.

13

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

Thrust, bearing

1шт.

14

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

Wave, bearing spring

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

Thrust, end cover

1шт.

16

F19634

BEARING WASHER

Thrust, bearing

1шт.

17

A43551

SHAFT

Input

1шт.

18

D53297

PIN

Retaining, torsion, Serial Range: bar-shaft

1шт.

19

211-9

BALL,5/16" Dia

1шт.

20

A43560

SPRING

RETAINER - ball

1шт.

21

A43554

RING

Drive

1шт.

22

A43555

SPACER

Drive link (2-3/32" long)

1шт.

23

A43552

ROD

T-BAR ASSEMBLY - torsion (Coded orange)

1шт.

24

A43728

SPACER

Shaft pre-load spring

1шт.

25

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

End cover

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

33

NSS

NOT SOLD SEPARAT

BALL - 9/32" dia.

3шт.

F82943

VALVE

KIT - relief plug, Includes Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - relief valve

1шт.

36

138-60

LOCK PIN,1/8" x 15/16", Slotted

1шт.

37

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

38

211-7

BALL,1/4" Dia

1шт.

39

A43565

PLUG

Body port

2шт.

40

A43729

O-RING

Plug

2шт.

41

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

42

A43569

BUSHING

PLATE - spacer

1шт.

43

A43568

LINK

Drive

1шт.

A45261

ROTOR

SET - pump (Not illustrated), Includes Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

46

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

47

A43412

SPRING

Vane (.75" long)

6шт.

A42219 Spring, Vane (.50" Long)

1шт.

48

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

49

A43573

MANIFOLD

Pump

1шт.

A43574

COMMUTATOR

ASSEMBLY - (Not illustrated), Includes Ref. 50 and 51

1шт.

50

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

51

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

52

A45014

SEAL

Rotor (Replaces A43577)

1шт.

53

A45284

COLLAR

RETAINER - rotor seal

1шт.

54

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

Bearing, drive link

1шт.

55

A45182

COVER

End

1шт.

56

A43581

BOLT

Seal, end cover

7шт.
