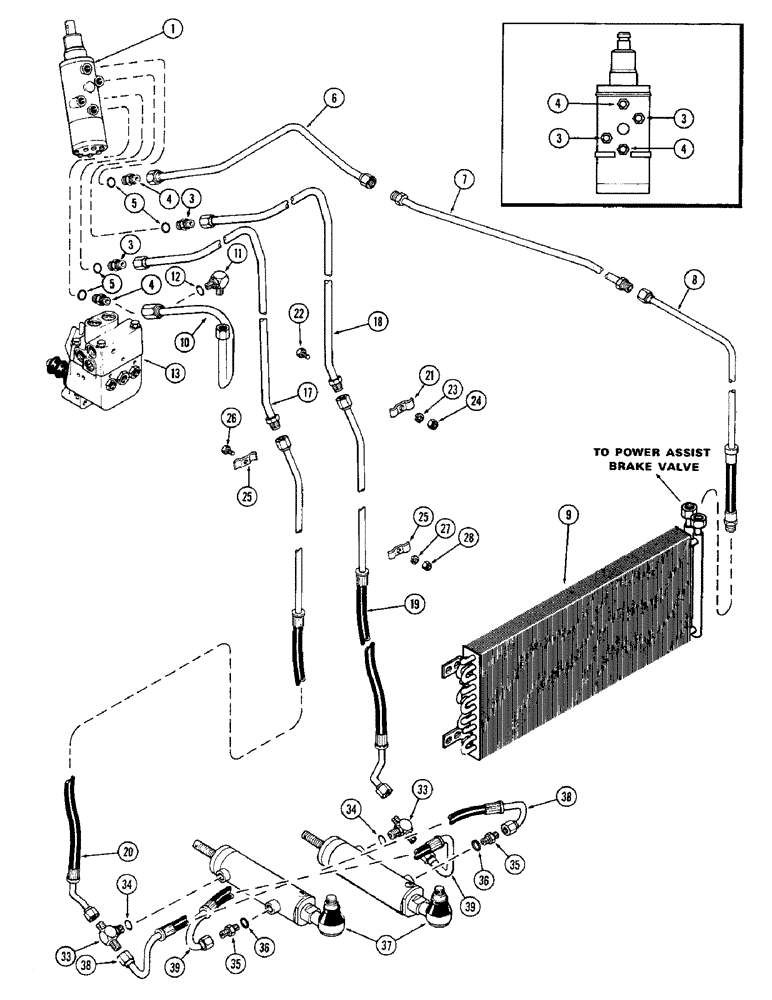

Запчасти Case IH 1370 (132) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSEMBLY - steering control (See Figure 134)
1шт.
3
D76050
HARDWARE
CONNECTOR ASSEMBLY - restrictor, cyl. ports (See inset) (Includes Ref. 5)
2шт.
4
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
ASSEMBLY - (See inset) (Replaces A36663), Includes Ref. 5
2шт.
5
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
6
A63654
TUBE
Steering return (Steering pump to center oil cooler inlet tube)
1шт.
7
A63655
TUBE
Oil cooler inlet (Center)
1шт.
8
A64919
TUBE
Trans. oil cooler inlet (Front)
1шт.
9
REF
INSTRUCTION
COOLER - oil (See Figure 4)
1шт.
10
A139385
TUBE
Steering valve inlet (Replaces A66431)
1шт.
11
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSEMBLY, (In brake valve outlet port), Includes Ref. 12
1шт.
12
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
13
REF
INSTRUCTION
VALVE ASSEMBLY - power brake (See Figures 244 and 248)
1шт.
17
A63550
TUBE
Steering valve (Right turn)
1шт.
18
A63551
TUBE
Steering valve (Left turn)
1шт.
19
A63552
HOSE ASSY.
LH steering cylinder
1шт.
20
A63553
HOSE
RH steering cylinder
1шт.
21
A63323
CLAMP
Tube (Steering, Serial Range: tube-firewall)
1шт.
22
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
Clamp to firewall
1шт.
23
92-5
LOCK WASHER,5/16"
1шт.
24
9635082
NUT,5/16" - 18, Gr 5
Hex
1шт.
25
A63323
CLAMP
Hose (RH to LH steering hole)
2шт.
26
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Clamps
1шт.
27
92-5
LOCK WASHER,5/16"
1шт.
28
9635082
NUT,5/16" - 18, Gr 5
Hex
2шт.
33
218-5193
TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br
Branch, Includes Ref. 34
2шт.
34
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
35
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ASSY
2шт.
36
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
37
REF
INSTRUCTION
CYLINDER ASSEMBLY - steering (See Figures 138 and 142)
2шт.
38
A63644
HOSE
Cylinder crossover, lower
1шт.
39
A63645
HOSE
Cylinder crossover, upper
1шт.
Выбрано товаров: 31
