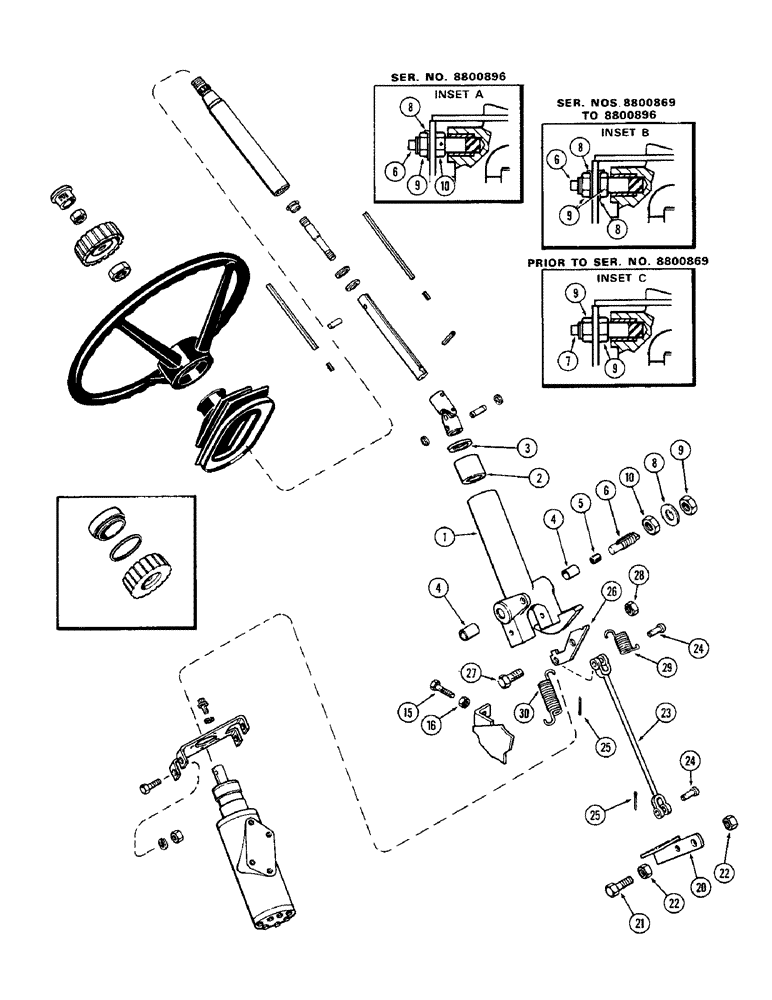

Запчасти Case IH 1370 (130) - ADJUSTABLE STEERING COLUMN (05) - STEERING

1

A64122

STEERING ASSY

COLUMN ASSEMBLY - steering, Includes: Ref. 2 - 4

1шт.

2

A59808

BEARING

- steering column

1шт.

3

A61736

WIPER SEAL

- wiper, steering column

1шт.

4

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column stud

2шт.

5

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

6

A137354

STUD

- pivot (w/tongue groove) (Replaces A59163) (See insets A and B)

2шт.

7

A59163

STUD

- pivot (w/o groove) (Order A137354 and A137355) (See inset C)

2шт.

8

A137355

WASHER

- tongued (1/2 x 5/8 x 1/8") (See insets A and B)

1шт.

9

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex. (5/8" jam) Column to pivot (See insets)

1шт.

10

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" N.C. hex. Gripco lock (See inset A)

2шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex), Tilt steering stop

1шт.

16

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. (5/16" N.C. jam)

1шт.

20

A64127

PEDAL

- tilt steering

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Tilt pedal pivot Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.) Pivot bolt to firewall

2шт.

23

A64126

ROD

- tilt latch

1шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

26

A64338

LATCH

- tilt steering

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Latch to plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

2шт.

29

A64125

SPRING

- tilt latch (7/8" O.D. x 1-7/8" lg.)

1шт.

30

A63690

SPRING

- tilt return (7/8" O.D. x 3-1/8" lg.)

1шт.
