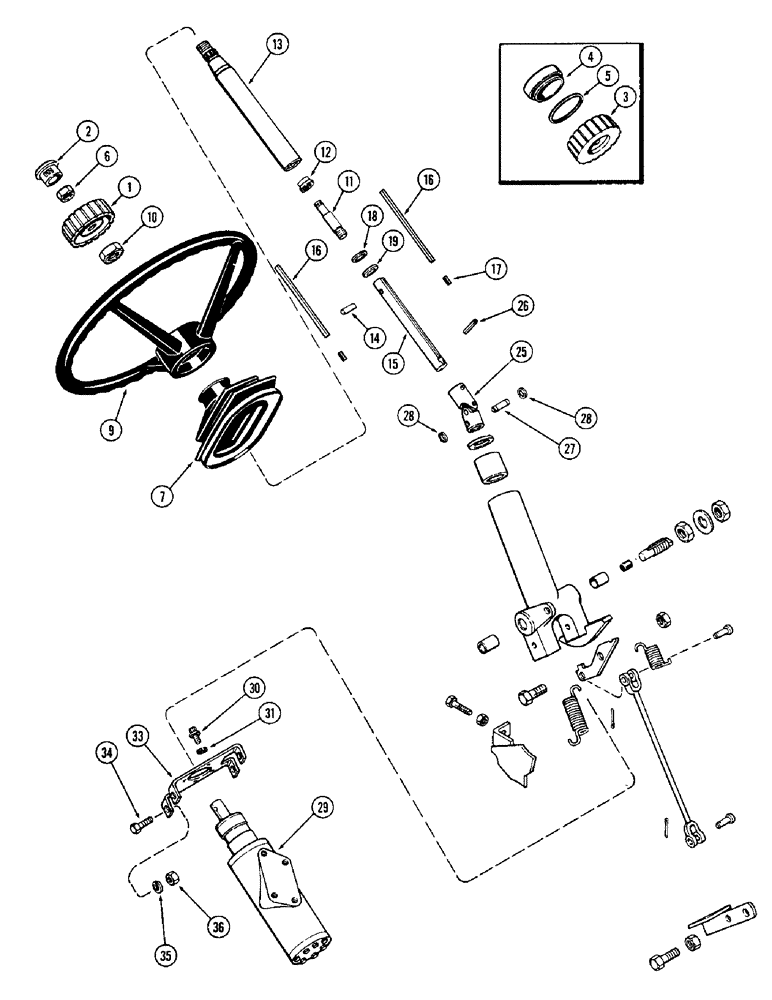

Запчасти Case IH 1370 (128) - STEERING WHEEL AND SHAFT (05) - STEERING

1

A141827

CAP

KNOB - lock (1st used P.I.N. 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

Nylon, lock knob (1st used P.I.N. 8808494)

1шт.

3

A61293

KNOB

Lock (Order A141827 and 353-413), Serial Range: -8808494

1шт.

4

A62210

PLUG

MEDALLION - steering wheel, Start Serial: 8808494

1шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - medallion retaining

1шт.

6

25-146

JAM NUT,Jam, 3/8"-16, G5

Knob to shaft

1шт.

7

A61910

BOOT

Rubber

1шт.

9

A65544

STEERING WHEEL

1шт.

10

A14567

JAM NUT

(13/16" N.F. hex.), Serial Range: Wheel-shaft

1шт.

11

A63683

SHAFT

Steering, telescopic lock

1шт.

12

A63684

LOCK NUT

Steering lock (1/2-13 N.C. special) (LH thread)

1шт.

13

A63681

SHAFT

Steering, outer

1шт.

14

A63685

PIN

Stop

1шт.

15

A63697

SHAFT

Steering, inner

1шт.

16

A63686

KEY

Steering lock

2шт.

17

A63687

LOCK

Friction

2шт.

18

A63688

FRICTION WASHER

Friction lock retainer

1шт.

19

A58116

RING

Snap, internal

1шт.

25

A63689

JOINT

Universal

1шт.

26

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

1шт.

27

A64000

PIN,9.42mm OD x 38.1mm L

Steering pump shaft

1шт.

28

A27795

RING

E-RING - steering pump pin

2шт.

29

REF

INSTRUCTION

PUMP ASSEMBLY - steering control (See Figure 134)

1шт.

30

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

Ferry cap

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

33

A65562

BRACKET

Mounting, steering pump

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

4шт.
