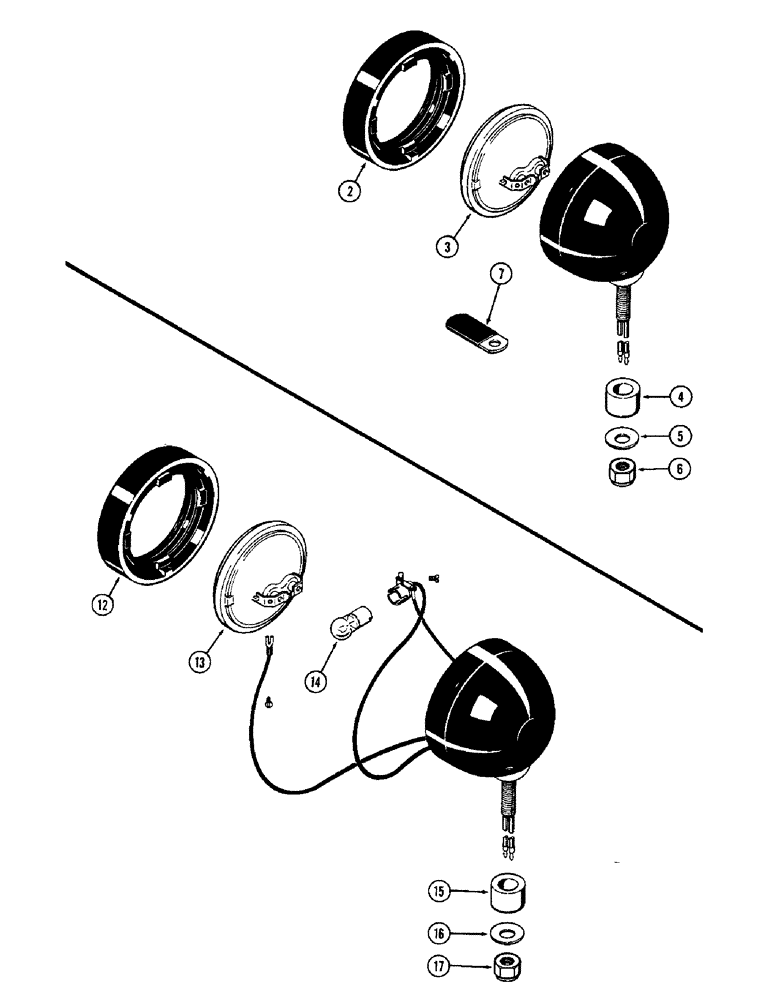

Запчасти Case IH 1370 (124) - REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

A63823

LAMP

ATTACHMENT - R.H. rear fender flood lamp (12 and 24" fenders), Includes: Ref. 2 - 6

1шт.

A63822

HEADLIGHT

LAMP - flood adjustable, Includes: Ref. 2 - 4

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43639

LAMP

BULB - sealed beam

1шт.

4

D37048

BUSHING

- pivot, lamp mounting

1шт.

5

D37049

WASHER

- wave, tail lamp mounting

1шт.

6

129-125

NUT,1/2"-20, G5

1шт.

7

A22880

CLIP

- fender harness to rear flood lite stud on L.H. side

1шт.

11

A59703

LAMP

- rear flood and tail, Includes: Ref. 12 - 15

1шт.

12

A25213

RETAINER

- sealed beam, rear flood and tail lamp

1шт.

13

A42295

BULB

- sealed beam, rear flood and tail lamp

1шт.

14

B50223

BULB

- lamp, tail, rear flood

1шт.

15

D37048

BUSHING

- pivot, lamp mounting, rear flood and tail

1шт.

16

D37049

WASHER

- wave, tail lamp mounting, rear flood

1шт.

17

129-125

NUT,1/2"-20, G5

Rear flood and tail 1/2"-20, G5

1шт.
