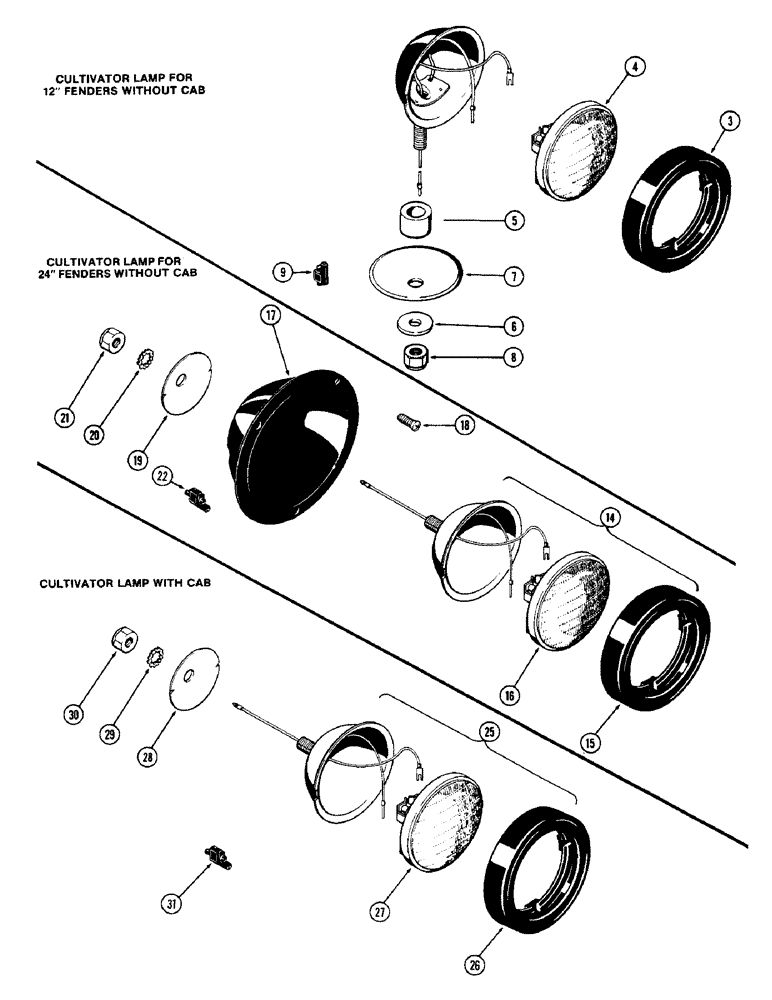

Запчасти Case IH 1370 (122) - CULTIVATOR LAMPS, USED WITHOUT CAB ON 12 INCH FENDERS (04) - ELECTRICAL SYSTEMS

A60510

LAMP

ATTACHMENT - lamp, Includes: Ref. 3 - 9

1шт.

A59724

HEADLAMP

LAMP - cultivator, Includes: Ref. 3 - 7

2шт.

3

A25213

RETAINER

- sealed beam

1шт.

4

A42294

SEALED BEAM UNIT

BULB - sealed beam

1шт.

5

D37048

BUSHING

- lamp pivot

1шт.

6

D37049

WASHER

- lamp mounting

2шт.

7

D59725

BRACE - lamp

2шт.

8

129-125

NUT,1/2"-20, G5

2шт.

9

A62556

CONNECTOR, ELEC

CONNECTOR - splice

1шт.

A60511

LAMP

ATTACHMENT - lamp, Includes: Ref. 14 - 22

1шт.

14

A59723

LAMP

- front cultivator, used without cab on 24" fenders, Includes: Ref. 15 and 16

2шт.

15

A25213

RETAINER

- sealed beam, used without cab on 24" fenders

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, used without cab on 24" fenders

1шт.

17

A59698

BEZEL

- lamp mounting, R.H., used without cab on 24" fenders

1шт.

17

A59699

BEZEL

- lamp mounting, L.H., used without cab on 24" fenders

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10 x 1/2" N.C. self-tapping, Phillips oval hd., used without cab on 24" fenders

6шт.

19

A59702

RETAINER

- cultivator lamp, used without cab on 24" fenders

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used w/o Cab on 24" fenders Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/o Cab on 24" fenders 1/2"-13, G5

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR - splice, used without cab on 24" fenders

1шт.

A61753

ATTACHMENT

- lamp, used with cab, Includes: Ref. 25 - 31

1шт.

25

A59723

LAMP

- front cultivator, used with cab

2шт.

26

A25213

RETAINER

- sealed beam, used with cab

1шт.

27

A42294

SEALED BEAM UNIT

BULB - sealed beam, used with cab

1шт.

28

A59702

RETAINER

- front cultivator lamp, used with cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used w/Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/Cab 1/2"-13, G5

2шт.

31

A62556

CONNECTOR, ELEC

CONNECTOR - splice, used with cab

2шт.
