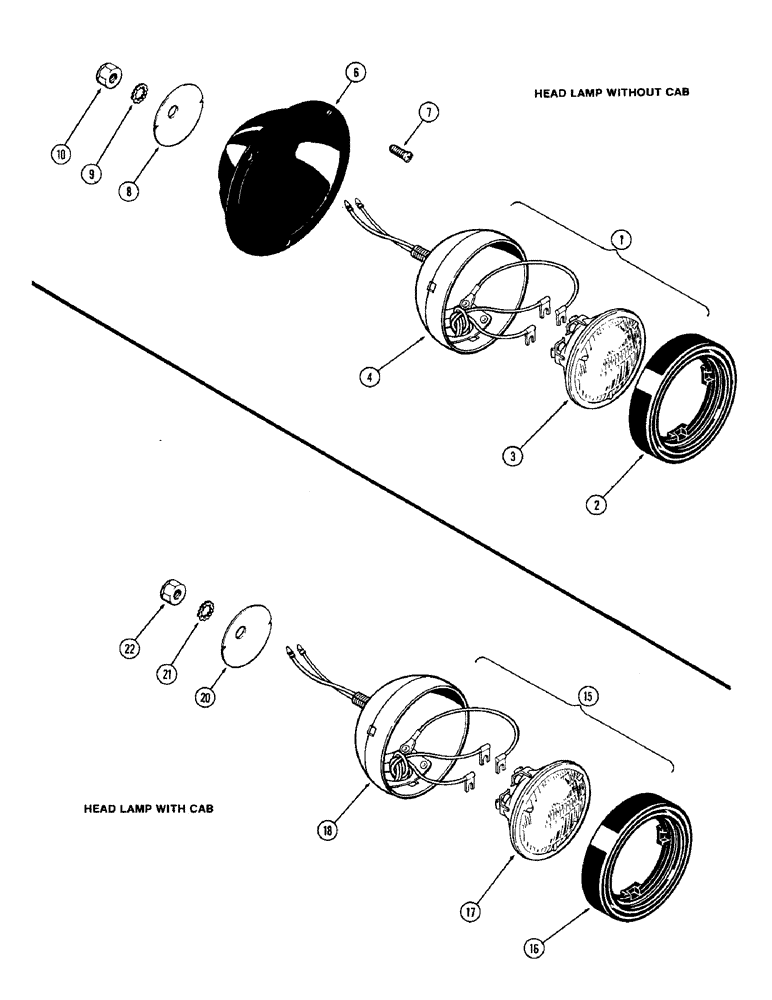

Запчасти Case IH 1370 (120) - HEAD LAMPS, USED WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A64498

LAMP

- front head driving, Includes: Ref. 2 - 4

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43712

LAMP

HEAD LAMP - sealed beam (#4457)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY AND WIRE ASSEMBLY - (Order A64498)

1шт.

6

A59698

BEZEL

- head lamp mounting, R.H.

1шт.

6

A59699

BEZEL

- head lamp mounting, L.H.

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10 x 1/2" N.C. self-tapping, Phillips oval hd.

6шт.

8

A59702

RETAINER

- front head lamp

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A64498

LAMP

- front head driving, used with cab, Includes: Ref. 16 - 18

2шт.

16

A25213

RETAINER

- sealed beam, used with cab

1шт.

17

A43712

LAMP

HEAD LAMP - sealed beam (#4457), used with cab

1шт.

18

NSS

NOT SOLD SEPARAT

BODY AND WIRE ASSEMBLY - (Order A64498), used with cab

1шт.

20

A59702

RETAINER

- head lamp, used with cab

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used w/ Cab Ext-Int Tooth, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/Cab 1/2"-13, G5

2шт.
