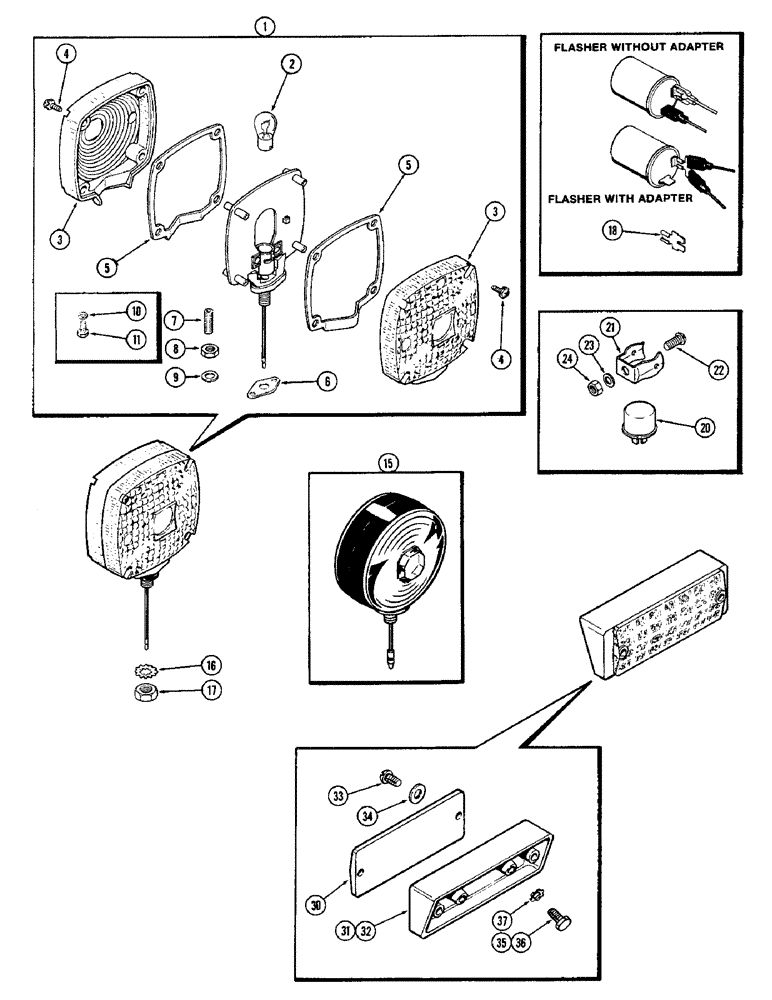

Запчасти Case IH 1370 (118) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher warning, Includes: Ref. 2 - 11

2шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

A44202

KIT

- lens replacement, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - amber

2шт.

4

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" rd. hd.

8шт.

5

A43731

GASKET

- lens

2шт.

6

F63435

GASKET

- lamp base

1шт.

7

A45118

STUD

- mounting (w/o cab)

1шт.

8

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex. (w/o cab)

1шт.

9

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") (w/o cab) 1/2"

1шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" N.C. hex. (w/cab)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (w/Cab) 1/4"

2шт.

15

A143600

LAMP

ASSEMBLY - warning (Use w/o cab only)

2шт.

A41264

BULB,#1156, 12V

Replacement #1156, 12V

1шт.

16

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/o Cab Ext-Int Tooth, 1/2"

2шт.

17

129-125

NUT,1/2"-20, G5

w/o cab 1/2"-20, G5

2шт.

20

A65550

FLASHER UNIT

FLASHER - element

1шт.

21

A34869

BRACKET

- element mounting

1шт.

22

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. rd. hd. mach.

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

A34862

KIT

ADAPTER KIT - flasher by-pass (Required for steady light) (See inset)

1шт.

30

A62415

REFLECTOR

- red

2шт.

31

A62416

BRACKET

- reflector (On fender w/o cab), red

2шт.

32

A64302

BRACKET

- reflector (w/cab), red

2шт.

33

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, #10 x 5/8" rd. hd., red reflector

4шт.

34

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", red reflector

4шт.

35

187-1043

SCREW

- 1/4 x 1/2" hex. hd. self-tapping (w/o cab), red reflector

4шт.

36

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - 1/4 x 5/8" hex. hd. self-tapping (w/cab), red reflector

4шт.

37

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" int.-ext. Shakeproof, red reflector

4шт.
