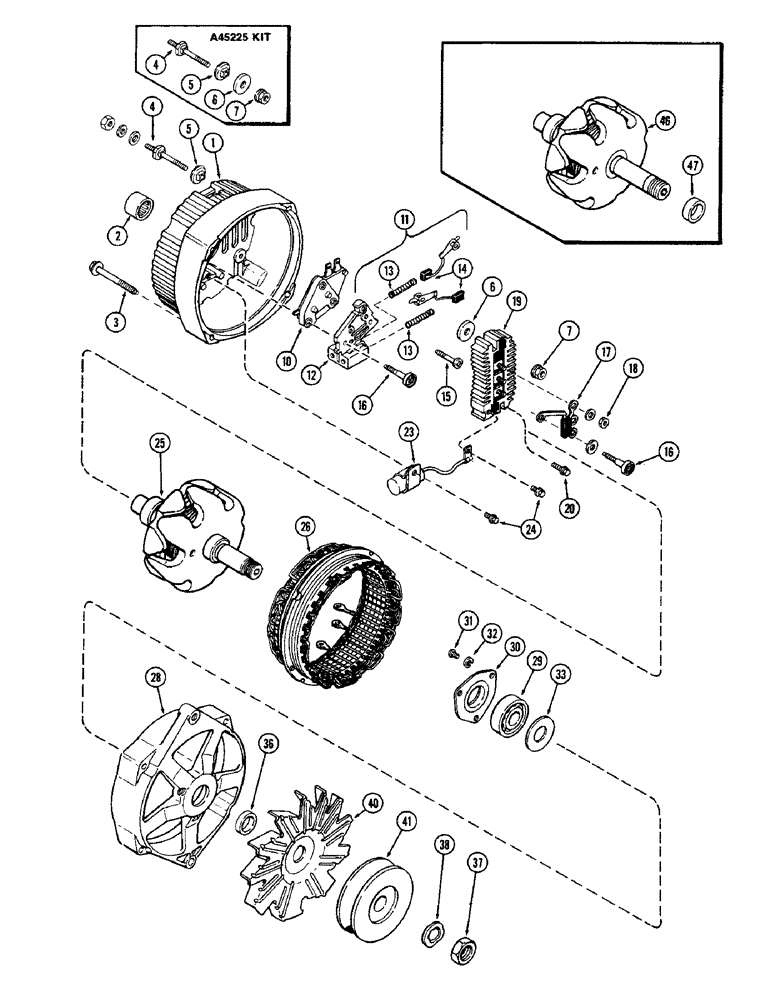

Запчасти Case IH 1370 (116) - A135715 ALTERNATOR ASSEMBLY, 55 AMPERE DELCO-REMY (04) - ELECTRICAL SYSTEMS

A135715

ALTERNATOR

ALTERNATOR - 55 amp. (Delco #1102867) (Prod. only) (Order A45202, A43884 fan and A45231 pulley)

1шт.

A45202

ALTERNATOR

ALTERNATOR - 61 amp. (Delco #1100585) (Less pulley and fan) (Repairs only), Includes: Ref. 1 - 38

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt, 61 Ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator, 12 Volt, 61 Ampere

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alernator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A45217

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 2

1шт.

2

A45218

BEARING ASSY

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex. washer hd.

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSEMBLY - (Includes brushes), Includs: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

SPRING - brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - generator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - brush holder, grounded (#8-32 x 1-1/11")

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER BRIDGE - (Replaces A45220)

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge (#8-32 x 1")

1шт.

23

A45017

CAPACITOR

CAPACITOR ASSEMBLY - (Includes bracket) (Replaces A45226)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor (#8-32 x 3/8")

2шт.

25

A45391

ROTOR

ROTOR ASSEMBLY - (Includes slip rings) (Replaces A45214)

1шт.

26

A45215

STATOR

STATOR ASSEMBLY

1шт.

28

A45229

FRAME

FRAME - drive end

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate, #10-24 x 3/8" rd. hd.

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

3шт.

33

A45232

WASHER

WASHER - grease slinger, bearing

1шт.

36

A72047

COLLAR

COLLAR - outer, rotor shaft (43/64" I.D. x 7/8" O.D. x 13/64")

1шт.

37

A25546

NUT

NUT - pulley and, Serial Range: fan-shaft

1шт.

38

R16171

SPRING WASHER

WASHER - lock

1шт.

40

A43384

FAN

FAN - alternator

1шт.

41

A45231

PULLEY

PULLEY - drive, alternator, single groove pulley - 3.221 +/- .025 Diameter Hub O.D. 1.12, Hub I.D. after plating .669 - .6720".

1шт.

46

A45214

ROTOR

ROTOR ASSEMBLY - (Includes slip rings) (See Ref. 25)

1шт.

47

A44522

COLLAR

COLLAR - inside, rotor shaft (Use only w/A45214 rotor) (43/64 I.D. x 29/32" O.D. x 23/64")

1шт.
