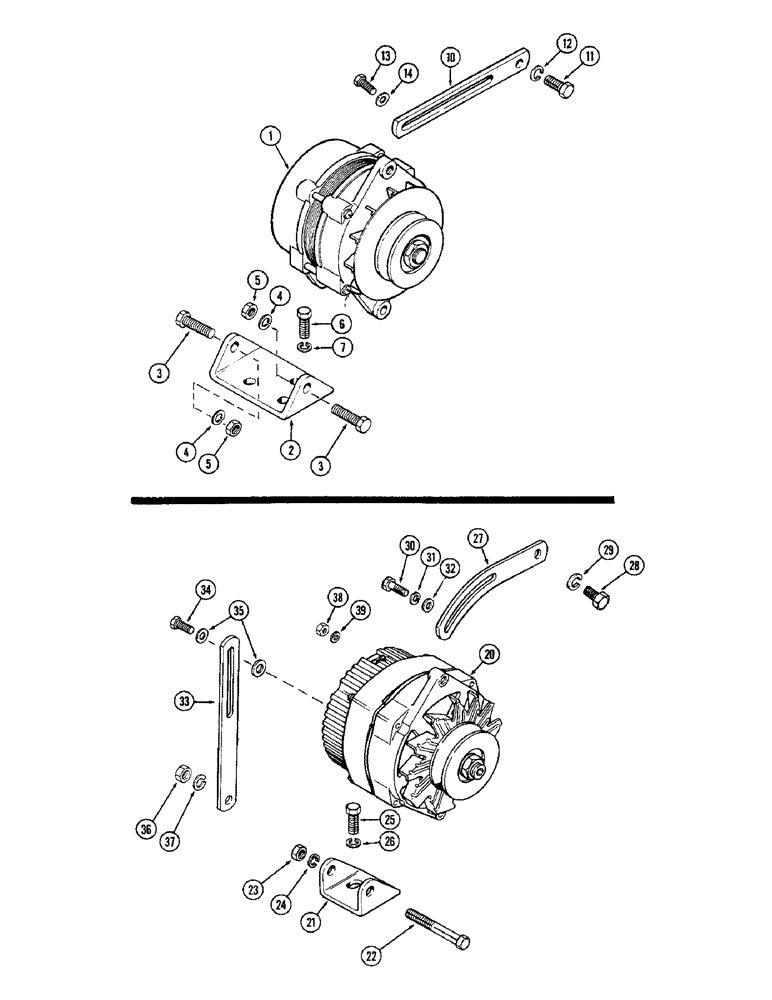

Запчасти Case IH 1370 (108) - ALTERNATOR MOUNTING, PRESTOLITE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - (Prestolite) (See Figure 112)
1шт.
2
A61063
BRACKET
Alternator mounting
1шт.
3
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
(Alt. to bracket)
2шт.
4
192-21
LOCK WASHER,3/8"
2шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
2шт.
6
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Mounting bracket to timing gear cover
3шт.
7
92-6
LOCK WASHER,3/8"
3шт.
10
A59167
STRAP
Alternator adjusting
1шт.
11
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
12
92-6
LOCK WASHER,3/8"
1шт.
13
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
14
195-521
WASHER,5/16", SAE
11/32 x 11/16 x 1/16"
1шт.
20
REF
INSTRUCTION
ALTERNATOR - (Delco-Remy) (See Figure 114 and 116)
1шт.
21
A38492
BRACKET
Alternator mounting, Delco-Remy
1шт.
22
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
Delco-Remy
1шт.
23
129-103
NUT,Hex, 3/8" - 16, Gr 5
Delco-Remy
1шт.
24
192-21
LOCK WASHER,3/8"
Delco-Remy
1шт.
25
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Mounting bracket to timing gear cover, Delco-Remy
2шт.
26
92-6
LOCK WASHER,3/8"
Delco-Remy
2шт.
27
A34705
ADJUSTER
STRAP - alternator adjusting (Replaces A135718), Delco-Remy
1шт.
28
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Delco-Remy
1шт.
29
92-6
LOCK WASHER,3/8"
Delco-Remy
1шт.
30
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Delco-Remy
1шт.
31
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
Delco-Remy
1шт.
32
195-103
WASHER,5/16"
11/32 x 11/16 x 1/16", Delco-Remy
2шт.
33
A59098
STRAP
Support, alternator rear, Delco-Remy
1шт.
34
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
(Supp. strap to alt.), Delco-Remy
1шт.
35
195-103
WASHER,5/16"
11/32 x 11/16 x 1/16", Delco-Remy
2шт.
36
25-106
NUT,3/8"-16, G5
Hex, Delco-Remy
1шт.
37
92-6
LOCK WASHER,3/8"
Delco-Remy
1шт.
38
129-18
NUT,#12-24
Hex., Alternator terminal, Delco-Remy
1шт.
39
192-17
LOCK WASHER,#12
Alternator terminal, Delco-Remy
1шт.
Выбрано товаров: 32
