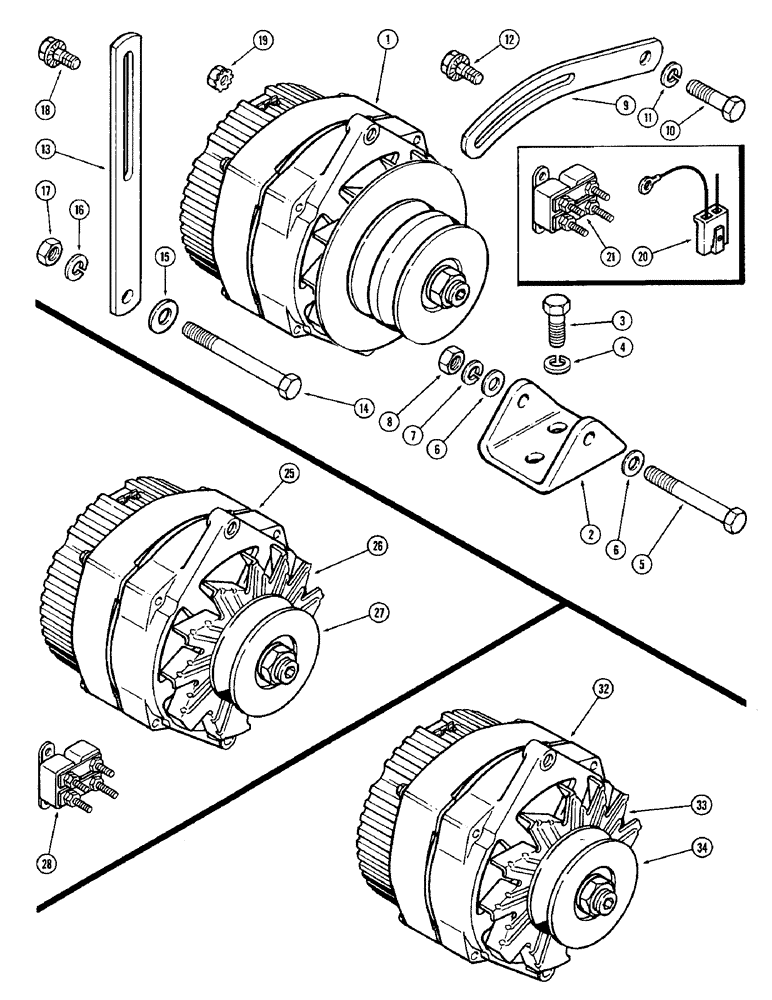

Запчасти Case IH 1370 (106) - ALTERNATOR CONVERSION KITS, TO CONVERT FROM 55 AMPERER PRESTOLITE TO 72 AMPERE DELCO-REMY (04) - ELECTRICAL SYSTEMS

A147241

ALTERNATOR

KIT - alternator, Includes: Ref. 1 - 21

1шт.

1

A47044

ALTERNATOR

ALTERNATOR ASSEMBLY - 72 ampere (See Figure 110)

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

2

A139871

BRACKET

BRACKET - alternator mounting

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

5

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

1шт.

6

D41740

WASHER

WASHER - 45/64 x 1 x 7/64"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

12

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C., Whizlock

1шт.

13

A59098

STRAP

STRAP - support, alternator rear

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

BOLT - 3/8 x 3-3/4" N.C. hex., grade 5

1шт.

15

195-103

WASHER,5/16"

WASHER - 3/8 x 7/8 x 5/64"

1шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

18

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. Whizlock

1шт.

19

193-1008

NUT,Keps, w/LW,#12-24

NUT - #12-24 Keps

1шт.

20

A141700

WIRE HARNESS,Adaptor

ADAPTER - engine harness

1шт.

21

A147004

BREAKER

BREAKER - circuit, 100 amperes

1шт.

A147239

KIT

KIT - alternator conversion, Includes: Ref. 25 - 28, to convert a 55 ampere delco alternator to a 72 ampere delco alternator

1шт.

25

A47044

ALTERNATOR

ALTERNATOR - 72 ampere (See Figure 110), convert a 55 ampere Delco

1шт.

26

A43384

FAN

FAN - alternator, convert a 55 ampere, Serial Range: Delco-72

1шт.

27

A45231

PULLEY

PULLEY - single groove, convert a 55 ampere Delco, Serial Range: alternator-72

1шт.

28

A147004

BREAKER

BREAKER - circuit (100 ampere), convert a 55 ampere Delco, Serial Range: alternator-72

1шт.

A147240

KIT

KIT - alternator conversion, 61 ampere Delco to 72, Includes: Ref. 32 - 34

1шт.

32

A47044

ALTERNATOR

ALTERNATOR - 72 ampere (See Figure 110), to convert a 61

1шт.

33

A43384

FAN

FAN - alternator, convert a 61, Serial Range: ampere-72

1шт.

34

A45231

PULLEY

PULLEY - single groove pulley - 3.221 +/- .025 Diameter Hub O.D. 1.12, Hub I.D. after plating .669 - .6720"., convert a, Serial Range: 61-72

1шт.
