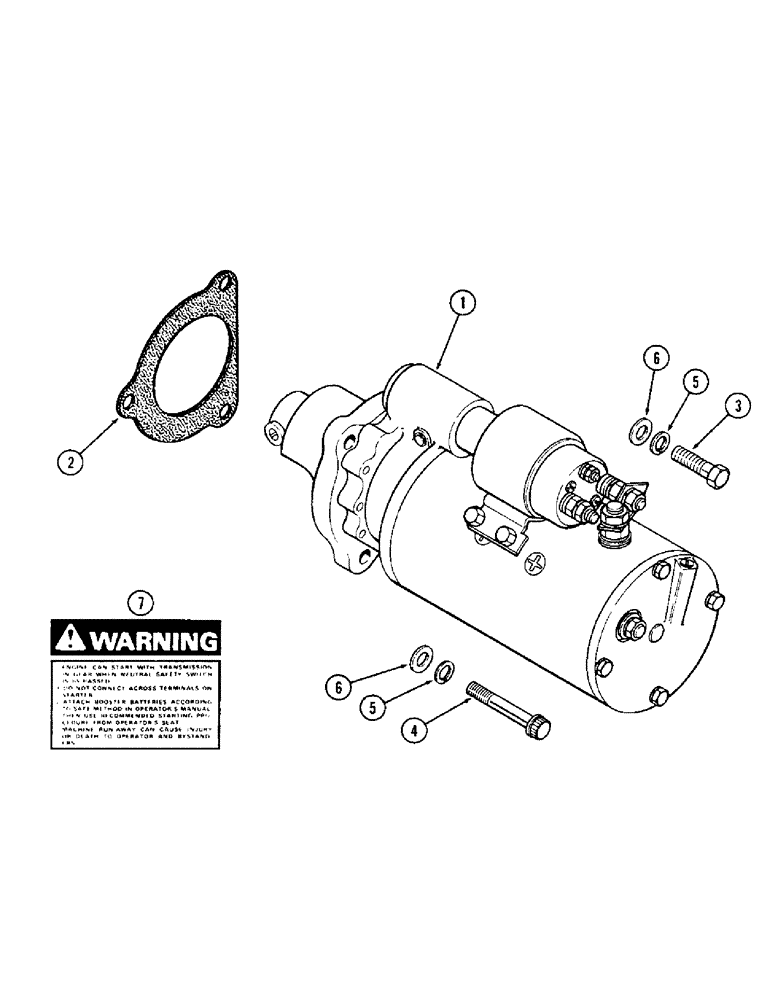

Запчасти Case IH 1370 (094) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - (See Figures 096, 098, 100, 102)

1шт.

2

A27933

GASKET

Starting motor

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

Hex. (Poly-Lok)

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

L30674

WASHER

17/32 x 1 x 1/8"

3шт.

7

321-3709

DECAL

Warning, jumper starter (On starter)

1шт.
