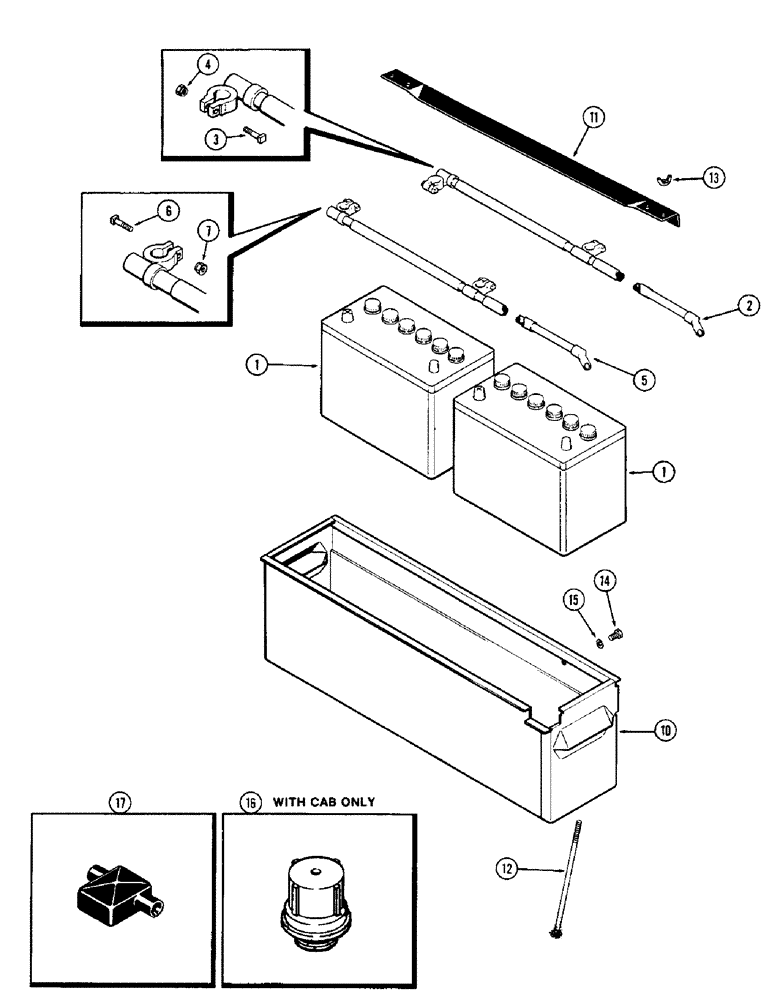

Запчасти Case IH 1370 (092) - BATTERIES, CABLES AND BOX (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 V., used w/o cab

2шт.

1

A60878

BATTERY

- 12 V., use w/cab (Non-spill cap) (Order A38411 battery and A60553 caps)

2шт.

2

A59728

CABLE

ASSEMBLY - battery negative (Ground), Includes: Ref. 3 and 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

4

129-516

NUT

- 5/16" N.C. hex.

2шт.

5

A65817

CABLE

ASSEMBLY - battery positive, Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

7

129-516

NUT

- 5/16" N.C. hex.

2шт.

10

A62137

BOX

ASSEMBLY - battery

1шт.

11

A59173

CLAMP

- battery hold down

1шт.

12

11-5160

BOLT

- 5/16 x 10" N.C. carr

2шт.

13

G49020

NUT

- 5/16" N.C. wing

2шт.

14

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

A60553

CAP

- battery, non-spill vent (Used w/cab)

12шт.

17

A139372

CAP

- battery, non-spill (Used 2 middle terms.)

1шт.
