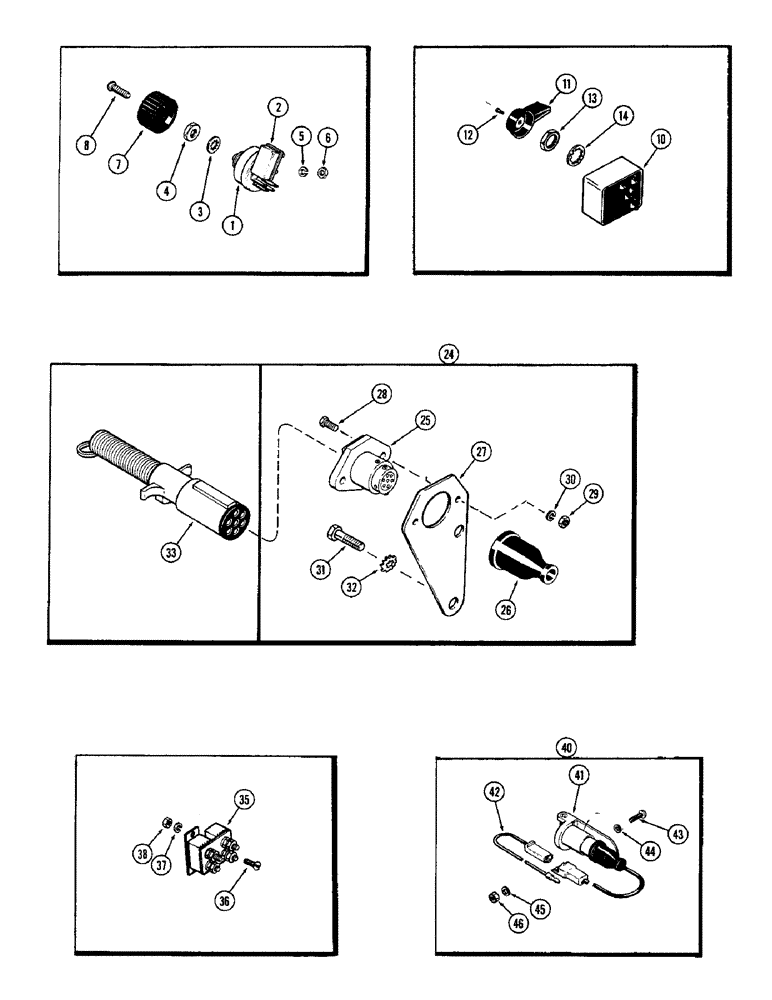

Запчасти Case IH 1370 (086) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

A64499

SWITCH

ASSEMBLY - light, Includes: Ref. 2

1шт.

2

A45686

CIRCUIT-BREAKER

BREAKER - circuit (40 amp.)

1шт.

3

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int.

1шт.

4

A20467

NUT

- light switch lock

1шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

129-37

NUT,#10-32

2шт.

7

A59695

KNOB

- light switch

1шт.

8

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- light switch knob, #8 x 5/8" N.C. pan hd.

1шт.

10

A77184

SWITCH

- turn signal & flasher

1шт.

A77185

KIT

PACKAGE - switch handle, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - handle (#5-40 x 3/8" pan hd. Sems)

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - (3/4" N.F. hex.)

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - lock (3/4")

1шт.

24

A66931

KIT

ATTACHMENT - 7 point auxiliary outlet (Female), Includes: Ref. 25 - 32

1шт.

25

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point

1шт.

26

A38740

GUARD

BOOT - connector

1шт.

27

A66896

BRACKET

- mounting

1шт.

28

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

31

113-2601

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- 5/8 x 2-3/4" N.C. hex.

1шт.

31

113-2617

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

Hex, 5/8"-11 x 2-1/4", G8

1шт.

32

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

2шт.

33

A67189

CONNECTOR, ELEC

CONNECTOR - 7 point auxiliary outlet (Male)

1шт.

35

A59704

BREAKER

- circuit, 80 amp. (Use w/55 amp. alternator)

1шт.

35

A147004

BREAKER

- circuit, 100 amp. (Use w/61 amp. alternator)

1шт.

36

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" rd. hd.

2шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

38

129-16

NUT,#8-32

2шт.

40

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, auxiliary outlet, Includes: Ref. 41 - 46

1шт.

41

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet

1шт.

42

A65060

ELECTRICAL WIRE

WIRE - lead (3")

1шт.

43

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10 x 5/8" N.F. hex., mach.

2шт.

44

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

2шт.

45

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

46

129-37

NUT,#10-32

2шт.
