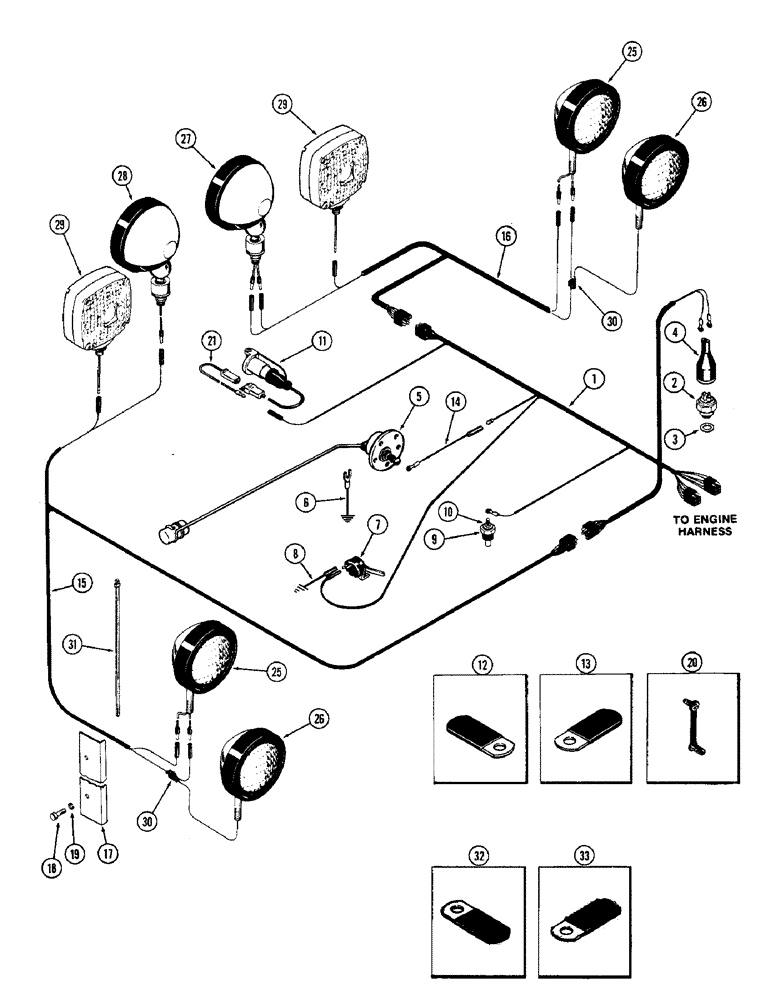

Запчасти Case IH 1370 (084) - TRANSMISSION HARNESS, USED PRIOR TO P.I.N. 8753831 (04) - ELECTRICAL SYSTEMS

1

A65813

HARNESS

Transmission wire

1шт.

2

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch

1шт.

4

A20991

BOOT

Neutral start switch

1шт.

5

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

6

A63739

ELECTRICAL WIRE

WIRE Fuel gauge sender, ground

1шт.

7

A33977

SWITCH

Hand brake warning (See Figure 206)

1шт.

8

A59711

ELECTRICAL WIRE

WIRE Hand brake switch ground

1шт.

9

A21462

SENDER UNIT

SENDER Transmission temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

1шт.

11

REF

INSTRUCTION

SOCKET - auxiliary outlet (See Figure 086)

1шт.

12

A37179

CLIP

Elect. wiring mtg. to fenders (w/o cab)

2шт.

13

A22880

CLIP

Fender harness

1шт.

14

A65812

ELECTRICAL WIRE

WIRE Fuel gauge sender

1шт.

15

A63740

HARNESS

Wire, RH fender (w/o cab)

1шт.

16

A63741

HARNESS

Wire, LH fender

1шт.

17

A63744

GUARD

SHIELD - fender wire harness (w/12" fender) (w/o cab)

2шт.

17

A60893

GUARD

SHIELD - fender wire harness (w/24" fender) (w/o cab)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

20

A62547

CLAMP

Fender, Serial Range: wires-fender

10шт.

21

A65060

ELECTRICAL WIRE

WIRE Lead (3")

1шт.

25

REF

INSTRUCTION

LAMP - front head driving (See Figure 120)

2шт.

26

REF

INSTRUCTION

LAMP - front cultivator (See Figure 122)

2шт.

27

REF

INSTRUCTION

LAMP - rear flood and tail (See Figure 124)

1шт.

28

REF

INSTRUCTION

LAMP - rear flood (See Figure 124)

1шт.

29

REF

INSTRUCTION

LAMP - flasher (See Figure 124)

2шт.

30

A62556

CONNECTOR, ELEC

CONNECTOR Splice, cultivating lamp (Used w/cab)

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Harness (Replaces L11541)

1шт.

32

A22883

CLIP

Vinyl coated, fender harness (w/o cab)

2шт.

33

A38066

CLIP

Vinyl coated, fender harness, PTO cover bolt

1шт.
