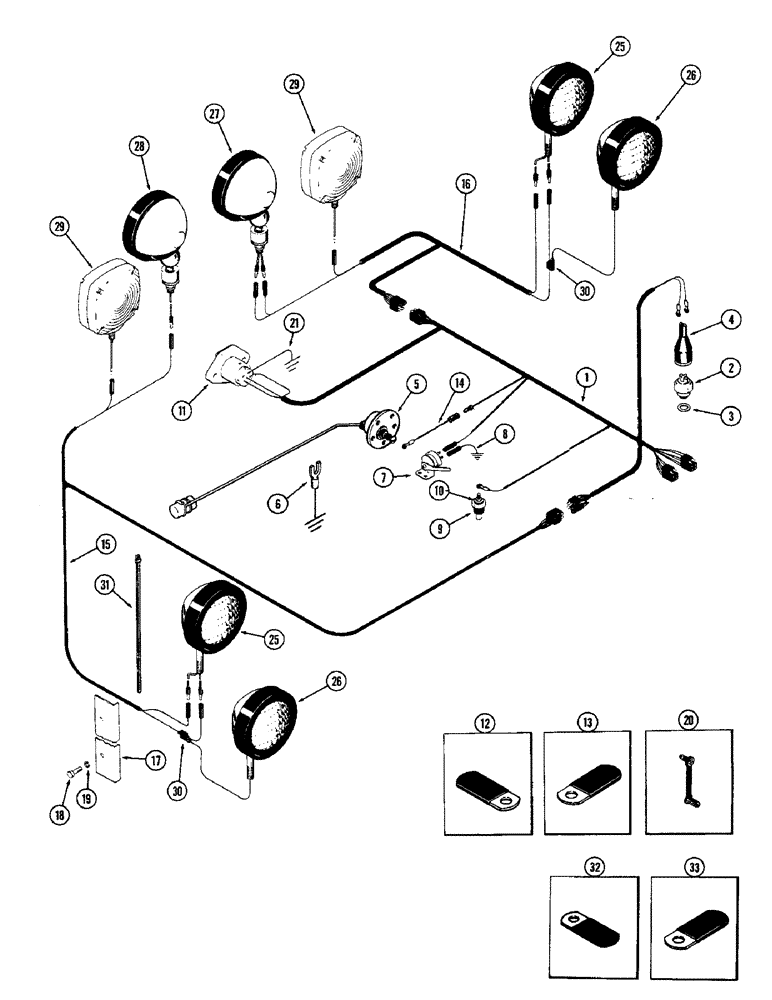

Запчасти Case IH 1370 (082) - TRANSMISSION HARNESS, USED P.I.N. 8753831 TO 8797567 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A66898
HARNESS
Transmission wire
1шт.
2
A20990
SWITCH
SWITCH - safety, neutral start
1шт.
3
G49402
SHIM,.010" Thk
Neutral start switch
1шт.
4
A20991
BOOT
Neutral start switch
1шт.
5
A63704
TRANSMITTER
UNIT - fuel gauge sender
1шт.
6
A63739
ELECTRICAL WIRE
WIRE Ground, fuel gauge sender
1шт.
7
A33977
SWITCH
Hand brake warning (Used w/o park lock) (See Figure 206), Serial Range: -8797501
1шт.
8
A59711
ELECTRICAL WIRE
WIRE Ground, hand brake switch (Used w/o park lock), Serial Range: -8797501
1шт.
9
A21462
SENDER UNIT
SENDER Transmission temperature
1шт.
10
193-1000
NUT,Keps, w/LW,#10-32
1шт.
11
REF
INSTRUCTION
CONNECTOR - auxiliary, 7 way (See Figure 086)
1шт.
12
A37179
CLIP
Wire to fender (w/o cab)
2шт.
13
A22880
CLIP
Fender harness
1шт.
14
A65812
ELECTRICAL WIRE
WIRE Fuel gauge sender
1шт.
15
A66912
HARNESS
Fender, RH (See Figure 504 w/cab)
1шт.
16
A66914
HARNESS
Fender, LH (See Figure 504 w/cab)
1шт.
17
A63744
GUARD
SHIELD - fender harness (12" fender w/o cab)
2шт.
17
A60893
GUARD
SHIELD - fender harness (24" fender w/o cab)
2шт.
18
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
4шт.
19
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
4шт.
20
A62547
CLAMP
, Serial Range: Harness-fender
10шт.
21
A66893
ELECTRICAL WIRE
WIRE Ground, 7 way connector
1шт.
25
REF
INSTRUCTION
LAMP - front, driving (See Figure 120)
2шт.
26
REF
INSTRUCTION
LAMP - front, cultivating (See Figure 122)
2шт.
27
REF
INSTRUCTION
LAMP - rear, flood & tail (See Figure 124)
1шт.
28
REF
INSTRUCTION
LAMP - rear flood (See Figure 124)
1шт.
29
REF
INSTRUCTION
LAMP - flasher (See Figure 124)
2шт.
30
A62556
CONNECTOR, ELEC
CONNECTOR Splice, cultivating lamp
2шт.
31
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP Harness (Replaces L11541)
1шт.
32
A22883
CLIP
Fender harness (w/o cab)
2шт.
33
A38066
CLIP
Fender harness (PTO cover bolt)
1шт.
Выбрано товаров: 31
