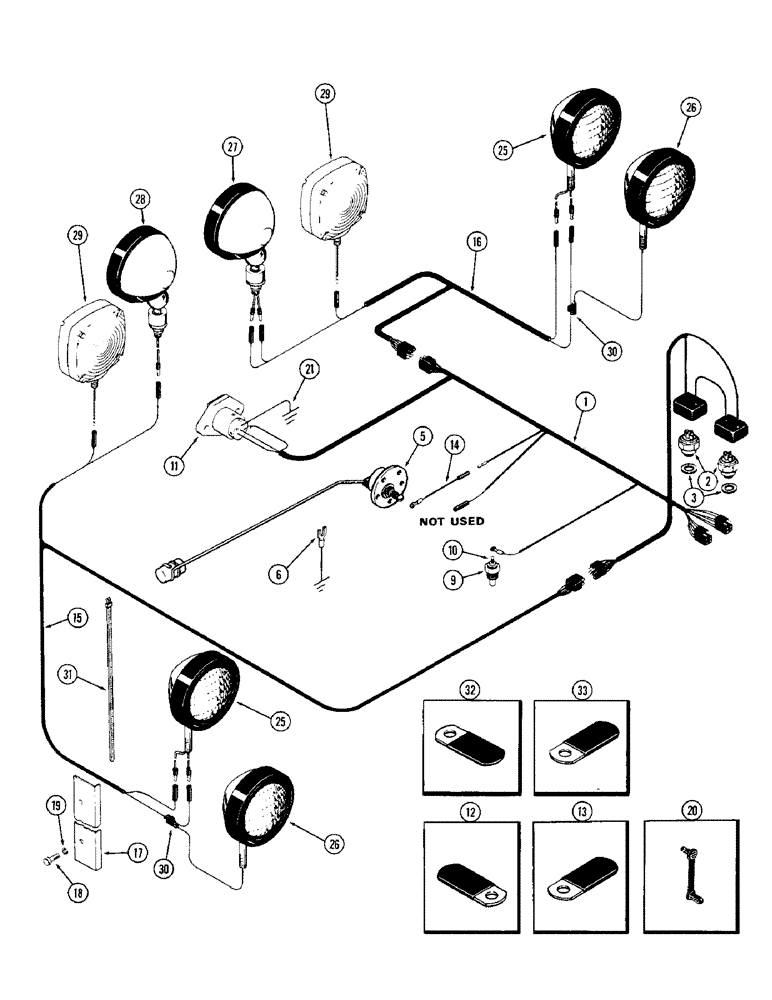

Запчасти Case IH 1370 (080) - TRANSMISSION HARNESS, FIRST USED P.I.N. 8797567 (04) - ELECTRICAL SYSTEMS

1

A139926

HARNESS

SPARE PART Transmission wire

1шт.

2

A139078

SWITCH

Neutral start

2шт.

3

G49402

SHIM,.010" Thk

Neutral start switch

1шт.

5

A63704

TRANSMITTER

UNIT - fuel gauge sender

1шт.

6

A63739

ELECTRICAL WIRE

WIRE Ground, fuel gauge sender

1шт.

9

A21462

SENDER UNIT

SENDER Transmission temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

1шт.

11

REF

INSTRUCTION

CONNECTOR - auxiliary, 7 way (See Figure 086)

1шт.

12

A37179

CLIP

Wire to fender (w/o cab)

2шт.

13

A57061

CLIP

Fender harness

1шт.

14

A65812

ELECTRICAL WIRE

WIRE Fuel gauge sender

1шт.

15

A66912

HARNESS

Fender, RH (See Figure 504 w/cab)

1шт.

16

A66914

HARNESS

Fender, LH (See Figure 504 w/cab)

1шт.

17

A63744

GUARD

SHIELD - fender harness (12" fender w/o cab)

2шт.

17

A60893

GUARD

SHIELD - fender harness (24" fender w/o cab)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

20

A62547

CLAMP

, Serial Range: Harness-fender

10шт.

21

A66893

ELECTRICAL WIRE

WIRE Ground, 7 way connector

1шт.

25

REF

INSTRUCTION

LAMP - front, driving (See Figure 120)

2шт.

26

REF

INSTRUCTION

LAMP - front, cultivating (See Figure 122)

2шт.

27

REF

INSTRUCTION

LAMP - rear, flood & tail (See Figure 124)

1шт.

28

REF

INSTRUCTION

LAMP - rear, flood (See Figure 124)

1шт.

29

REF

INSTRUCTION

LAMP - flasher (See Figure 124)

2шт.

30

A62556

CONNECTOR, ELEC

CONNECTOR Splice, cultivating lamp

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Harness (Replaces L11541)

1шт.

32

A22883

CLIP

Fender harness (w/o cab)

2шт.

33

A38066

CLIP

Fender harness (PTO cover bolt)

1шт.
