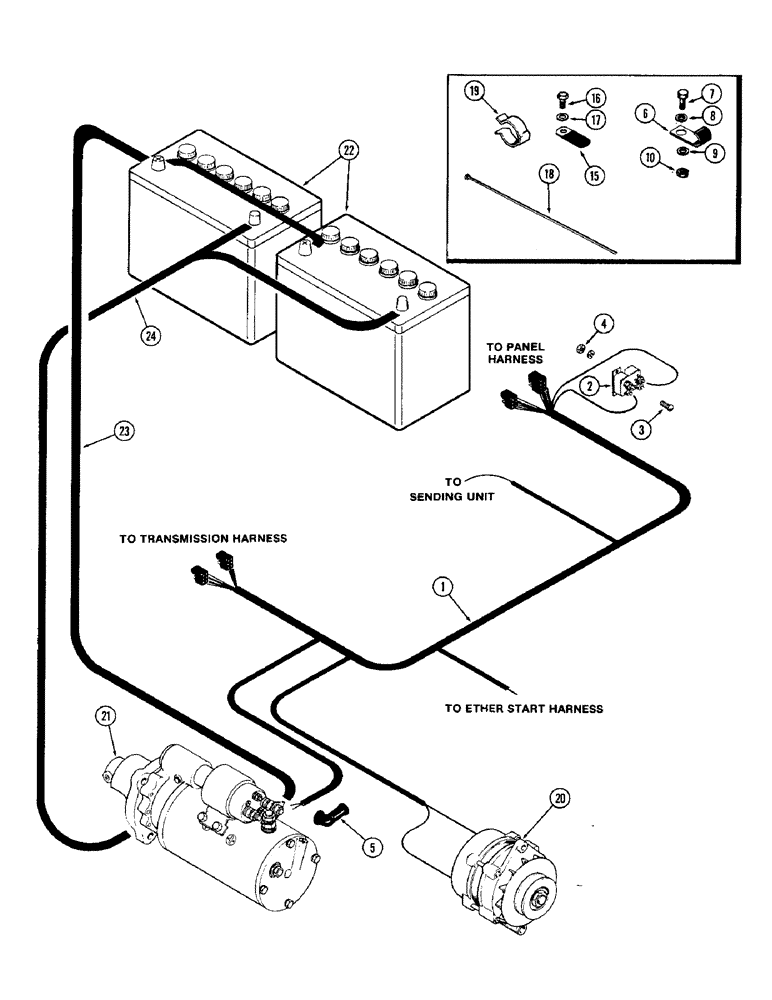

Запчасти Case IH 1370 (078) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

ASSEMBLY - (Use w/Delco alternator w/turn signals)

1шт.

1

A66909

HARNESS

ASSEMBLY - (Use w/Delco alternator w/out turn signals)

1шт.

1

A65986

HARNESS

ASSEMBLY - (Use w/Prestolite alternator w/out turn signals)

1шт.

2

REF

INSTRUCTION

BREAKER - circuit (See Figure 80)

1шт.

3

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

2шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

2шт.

4

129-16

NUT,#8-32

2шт.

5

A21753

CAP

Starter, positive terminal, rubber

1шт.

6

A143668

CLIP

Engine wire harness

1шт.

7

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

Mach. (Harness clip to firewall baffle)

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

9

195-103

WASHER,5/16"

WASHER - 3/8 x 7/8 x 5/64"

1шт.

10

129-192

NUT

5/16" N.C. hex.

1шт.

15

A37179

CLIP

Alternator wires

1шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Engine wire harness (Replaces L11541)

1шт.

19

A60894

CLIP

Alternator wire harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See Figure 108)

1шт.

21

REF

INSTRUCTION

STARTER ASSEMBLY - (See Figure 094)

1шт.

22

REF

INSTRUCTION

BATTERY - (See Figure 092)

2шт.

23

A65817

CABLE

Battery, positive (See Figure 092)

1шт.

24

A59728

CABLE

Battery, negative (Ground) (See Figure 092)

1шт.
