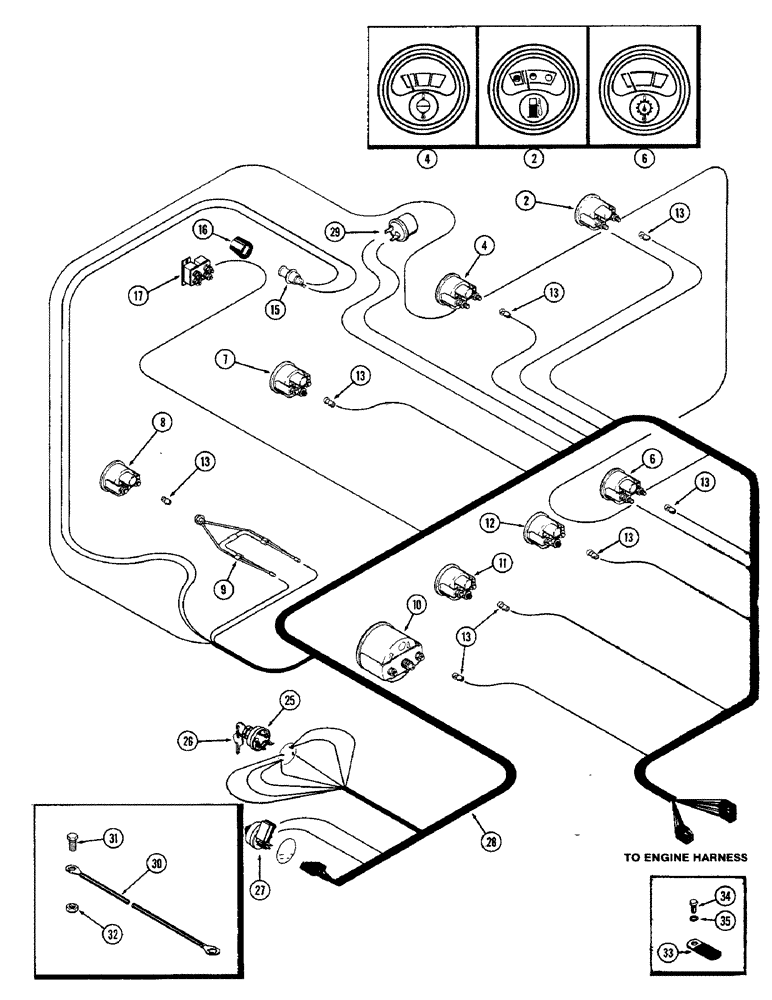

Запчасти Case IH 1370 (074) - INSTRUMENTS AND WIRING, USED PRIOR TO P.I.N. 8753831 (04) - ELECTRICAL SYSTEMS

2

A59682

ELECTRICAL GAUGE

Fuel (Order A143676)

1шт.

4

A61786

ELECTRICAL GAUGE

Engine temperature (Order A143677)

1шт.

6

A64491

ELECTRICAL GAUGE

Transmission temperature (Order A143678 and A21462)

1шт.

7

REF

INSTRUCTION

GAUGE - engine oil pressure (See Figure 076)

1шт.

8

A59687

DIAL

CASE - alternator warning lamp

1шт.

9

A137562

HARNESS

RECEPTACLE ASSEMBLY - alt. warning lamp (Replaces A59688)

1шт.

10

REF

INSTRUCTION

TACHOMETER ASSEMBLY - (See Figure 076)

1шт.

11

A65062

GAUGE

Trans. oil filter pressure (See Figure 076)

1шт.

12

REF

INSTRUCTION

GAUGE - transmission pressure (See Figure 076)

1шт.

13

A14553

BULB

Gauges, 14 volt 2 CP (Mfgr. #57)

8шт.

15

A59689

LAMP

Hand brake warning

1шт.

A42296

BULB

Red (Mfrs. #257)

1шт.

16

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

17

A59704

BREAKER

Circuit, 80 amp. (See Figure 086)

1шт.

25

A59693

SWITCH

Starting

1шт.

26

A60319

KEY

Starting (Set of 2)

1шт.

27

REF

INSTRUCTION

SWITCH ASSEMBLY - lights (See Figure 086)

1шт.

28

A65988

HARNESS

Wire, instrument panel

1шт.

29

A65550

FLASHER UNIT

12 V. (See Figure 118)

1шт.

30

A64704

STRAP

Ground, instrument panel

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Ground wire to panel

1шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

33

A37179

CLIP

Wire

1шт.

34

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.
