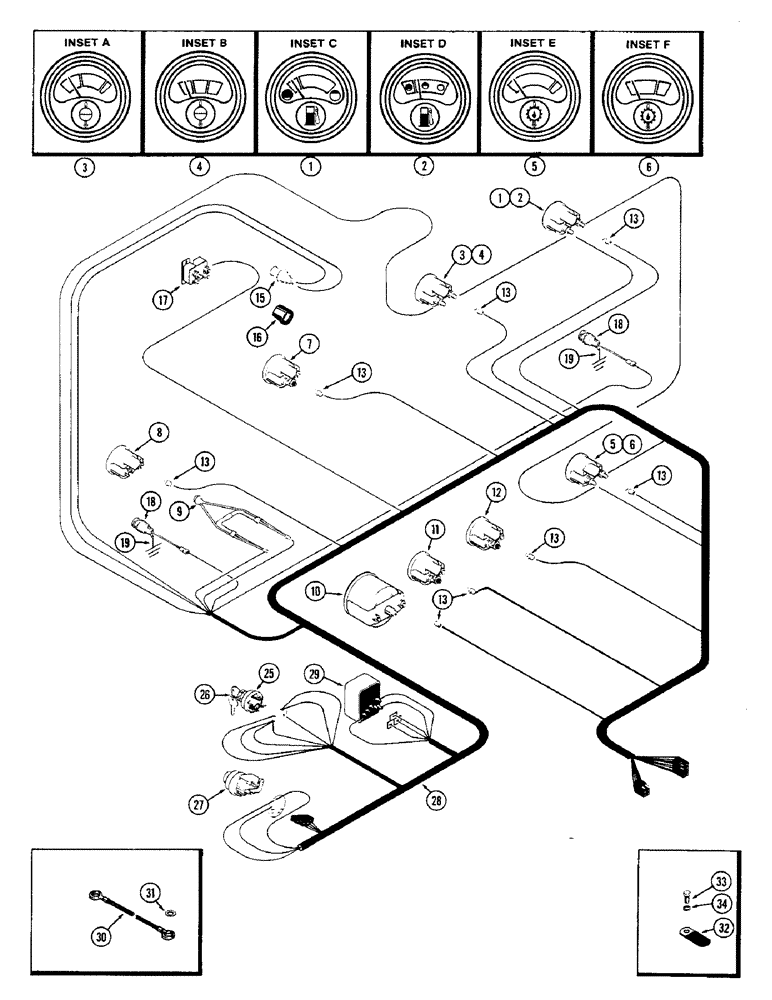

Запчасти Case IH 1370 (072) - INSTRUMENTS AND WIRING, FIRST USED P.I.N. 8753831 (04) - ELECTRICAL SYSTEMS

1

A143676

ELECTRICAL GAUGE

Fuel (1st used P.I.N. 8807930) (See inset C)

1шт.

2

A59682

ELECTRICAL GAUGE

Fuel (See inset D) (Order A143676), Serial Range: -8807930

1шт.

3

A143677

ELECTRICAL GAUGE

Engine temp. (1st used P.I.N. 8807930) (See inset A)

1шт.

4

A61786

ELECTRICAL GAUGE

Engine temp. (See inset B), Serial Range: -8807930

1шт.

5

A143678

ELECTRICAL GAUGE

Trans. temp. (1st used P.I.N. 8807930) (See inset E)

1шт.

7

REF

INSTRUCTION

GAUGE - engine oil pressure (See Figure 076)

1шт.

8

A59687

DIAL

CASE - alternator warning lamp

1шт.

9

A137562

HARNESS

RECEPTACLE ASSEMBLY - alt. warning lamp (Replaces A59688)

1шт.

10

REF

INSTRUCTION

TACHOMETER ASSEMBLY - (See Figure 076)

1шт.

11

REF

INSTRUCTION

GAUGE - trans. oil filter pressure (See Figure 076)

1шт.

12

REF

INSTRUCTION

GAUGE - trans. oil pressure (See Figure 076)

1шт.

13

A14553

BULB

Gauges

8шт.

15

A59689

LAMP

Hand brake warning (Used w/o park lock), Serial Range: -8797501

1шт.

A42296

BULB

12 V. flasher, red

1шт.

16

A62677

GUARD

SHROUD - hand brake warning lamp (Used w/o park lock), Serial Range: -8797501

1шт.

17

A59704

BREAKER

Circuit, 80 amp. (See Figure 086)

1шт.

17

A147004

BREAKER

Circuit, 100 amp. (See Figure 086)

1шт.

18

A77188

LAMP

Indicator, turn signal RH and LH

2шт.

19

A66892

ELECTRICAL WIRE

WIRE Ground, turn signal lamp

2шт.

25

A59693

SWITCH

Starting

1шт.

26

A60319

KEY

ASSEMBLY - starting (Set of 2)

1шт.

27

REF

INSTRUCTION

SWITCH ASSEMBLY - lights (See Figure 086)

1шт.

28

A135870

HARNESS

Wire, instrument

1шт.

29

REF

INSTRUCTION

SWITCH ASSEMBLY - turn signal (See Figure 086)

1шт.

30

A64704

STRAP

Instrument panel grounding

1шт.

31

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

2шт.

32

A37179

CLIP

Instrument wire harness

1шт.

33

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

34

92-5

LOCK WASHER,5/16"

1шт.
